MQ-15CP
Single 15’’ Coaxial waterproof Two-way Speaker
Application:Application for Stadium,Park,Outdoor Plaza,medium and long distance large scale venue.
Specifications
- System type：Single 15
- Sensitivity(1W/1m)：107dB
- Frequency response：50Hz-18kHz(±3dB) /45Hz-20kHz(-10dB)
- Power rating：400W
- Norminal impedance：8Ω
- SPL(Continunous /Peak)：133dB/139dB
- Dispersion(H×V)：70° ×40°
- HF：1×3
- LF：1×15
- Connectors：Terminal;1+ 1-
- Fittings：U shape kit×1

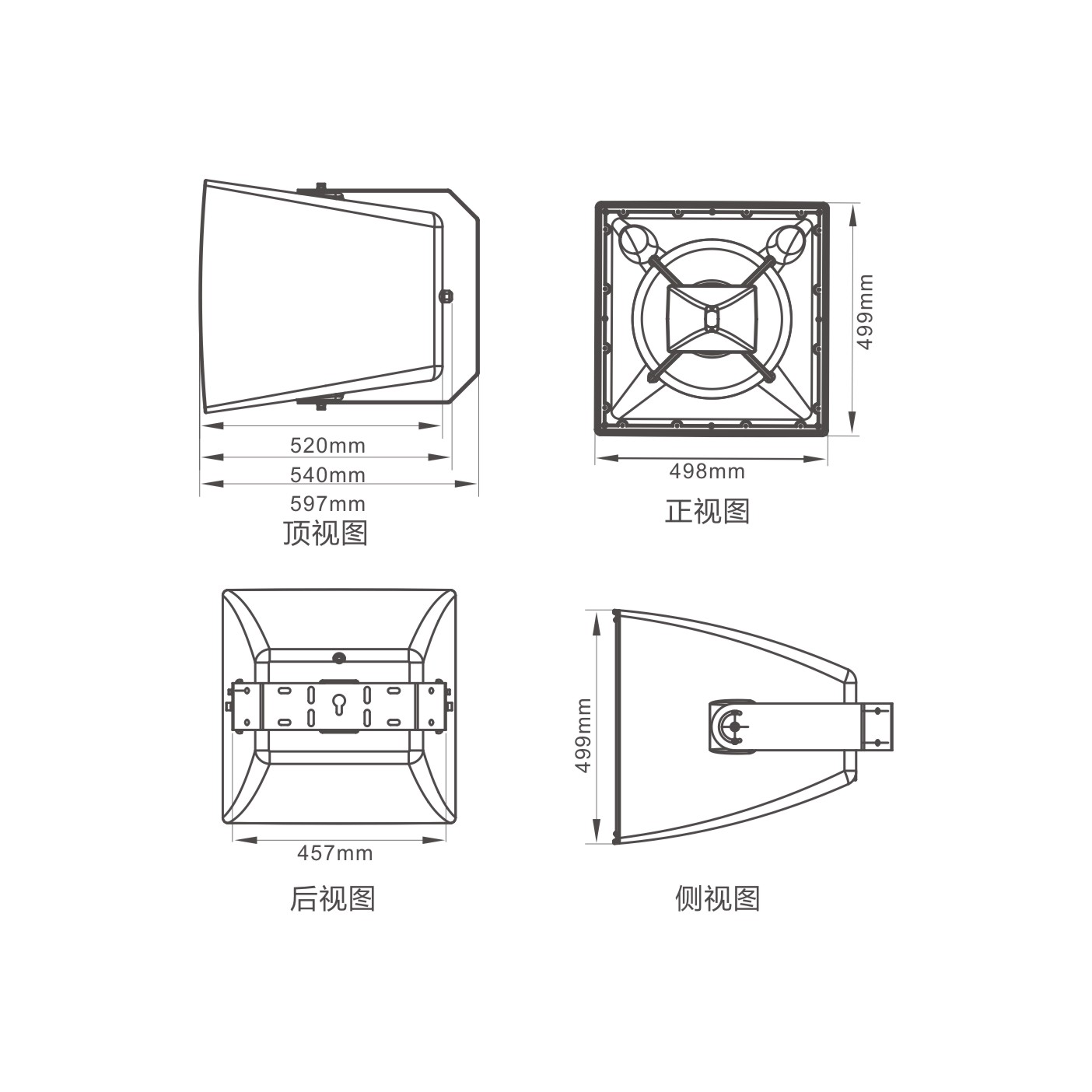

- Dimension(H×W×D)：499×498×597mm
- Weight：28.5kg
Features
MQ-15CP is a single 15 inch coaxial waterproof two-way speaker,Box design give priority to all-weather use environment and high sound pressure output,adopt1×15” LF unit,1×1.4” throat 75-core titanium diaphragm tweeter, the LF and HF units all use horn load design, the enclosure is made of engineering plastic. High Power output,accurate 70°×40°directivity control, reduce interference,make sure the coverage area has sufficient speech intelligibility.
