ML4

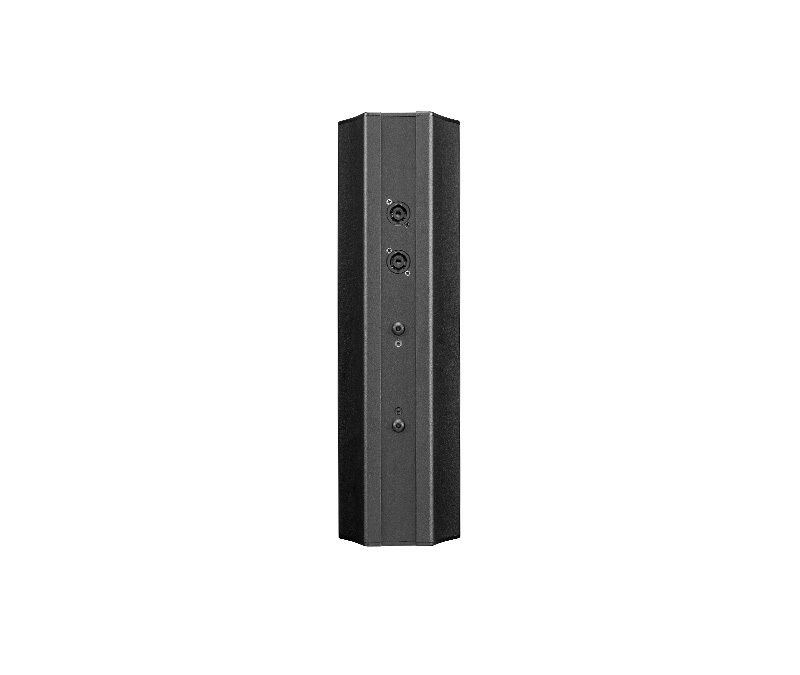

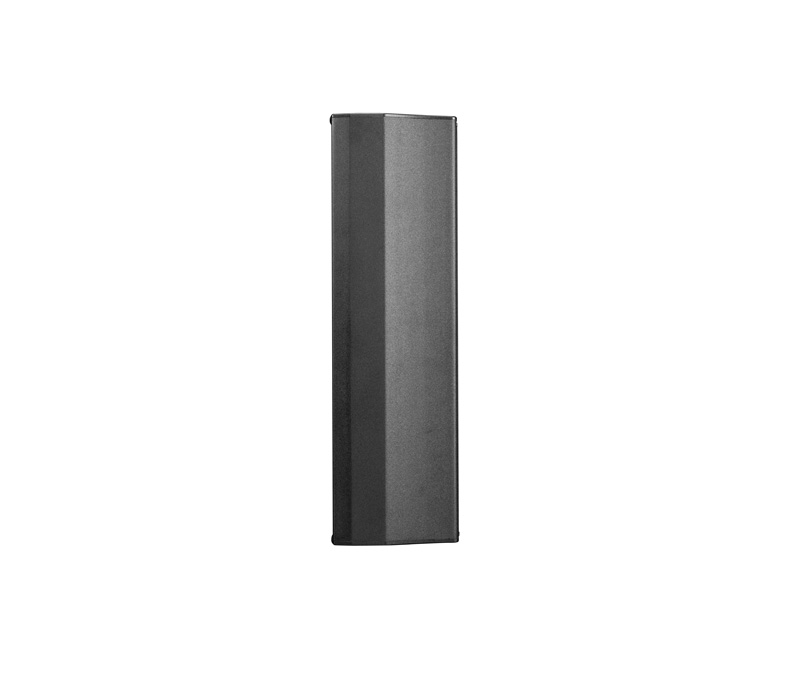

4×4”full range speaker

Application:Conference room,Auditorium hall,Banquet Hall,Concert Hall,Church,FOH for Bars,FOH for medium and small touring system

Specifications
  • System:4×4”full range speaker
  • Sensitivity(1W/1m):96dB
  • Frequency response:140Hz~18kHz(-10dB)
  • Power rating(AES):160W
  • SPL(Continunous /Peak):118dB/124dB
  • Dispersion(H×V):80°×30°
  • Norminal impedance:8Ω
  • Full range unit:4×4"(1" Voice Coil)
  • Connector:2×SPEAKON NL4MP 4pin plug,1+ 1-
  • Fittings:2×M8 rigging points

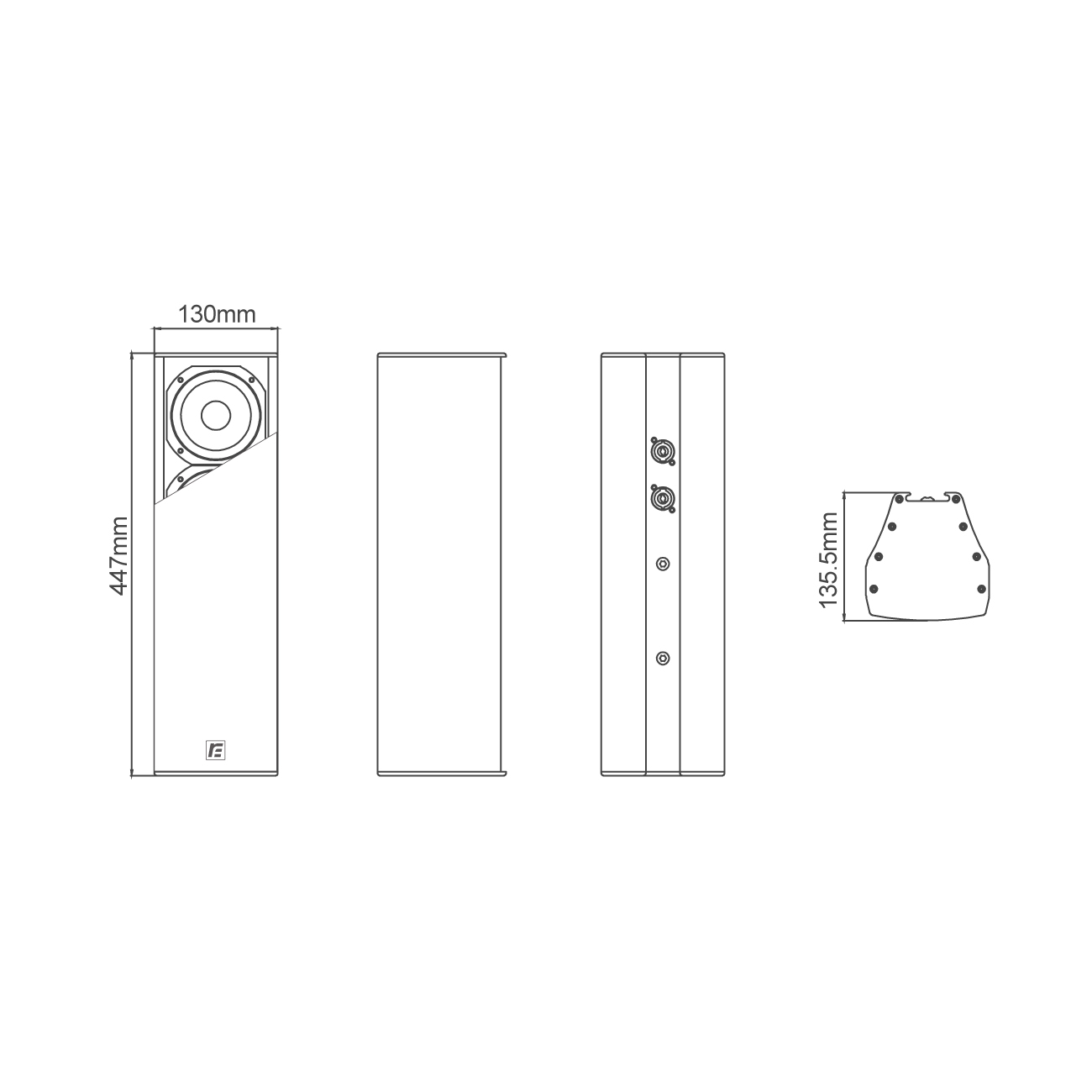

  • Dimension(H×W×D):447×130×135.5mm
Features

       Adopts high performance innovative aluminium enclosure design,small size,excellent performance,the quality is durable while lightweight,with built-in range speaker unit,combined with array coplanar coupling technique,provide smooth frequency response curve and broad dispersion, ensure the high speech intelligibility and high fidelity.

      Compact enclosure with high sound pressure output,make sure high fidelity sound performance,and can form multiple vertical array,easy and fast installation,designed for providing high definition solution for fixed installation and small touring system.

Data Download
  • Ruifeng Intelligent Enterprise AlbumML4

    File size: 41.05 MBRelease time: 2023-06-12 Download Preview
  • ML4 EASE Speaker DataML4

    File size: 0.35 MBRelease time: 2023-05-29 Download Preview
  • ML4 Product CatalogML4

    File size: 1.00 MBRelease time: 2023-06-14 Download Preview
