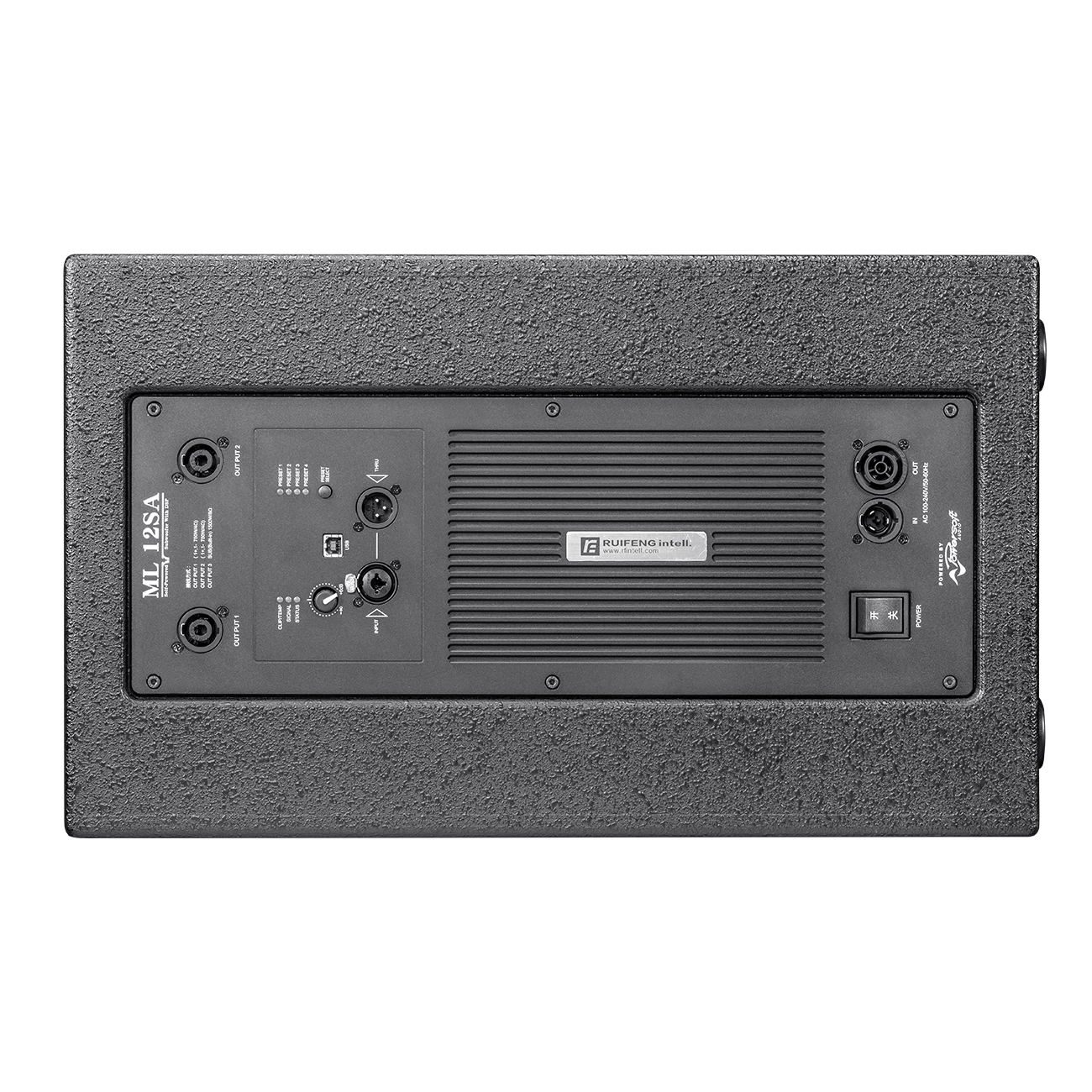

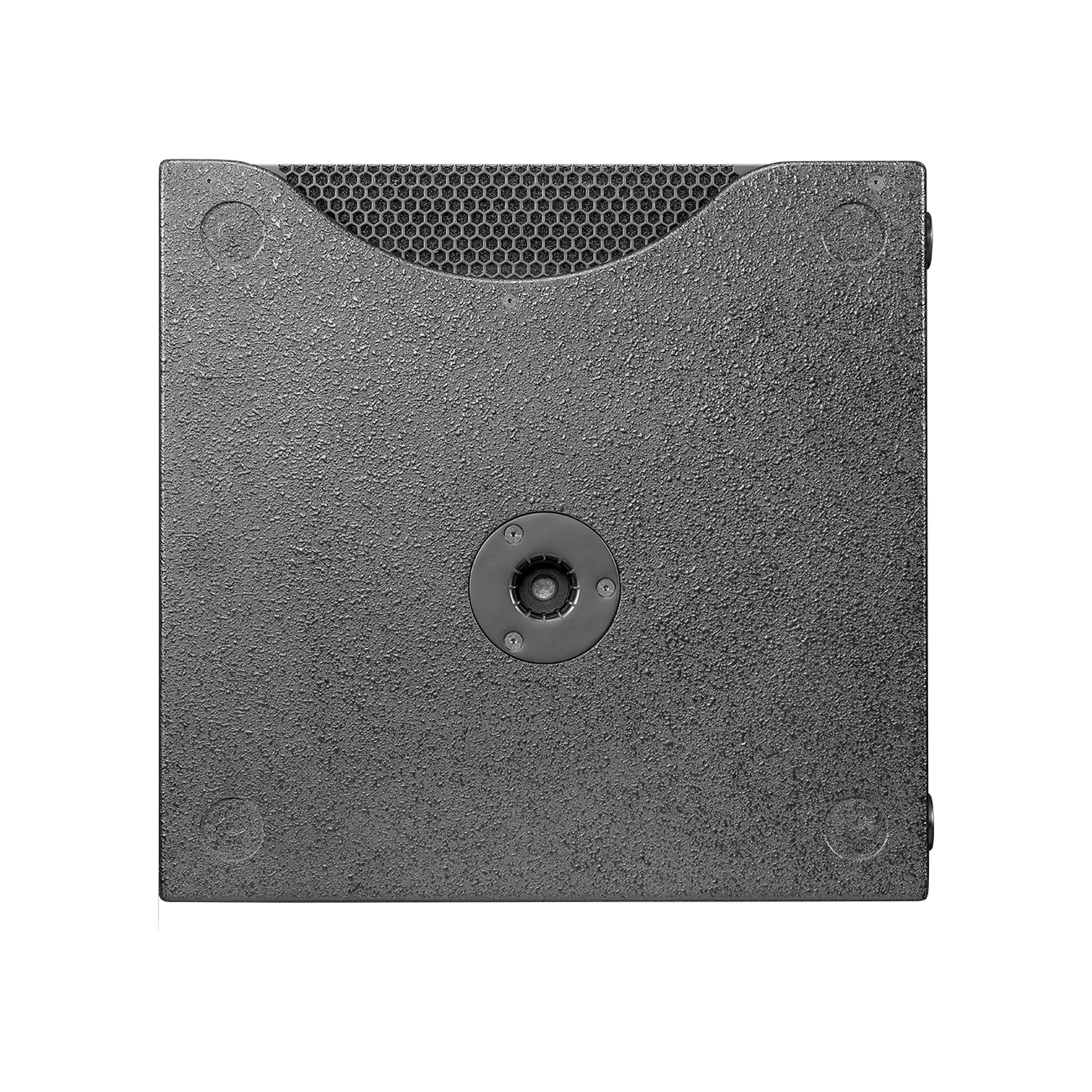

ML12SA
single 12”active subwoofer with DSP
Application:Conference room,Auditorium hall,Banquet Hall,Concert Hall,Church,FOH for Bars, FOH for medium and small touring system
Specifications
- System type：single 12”active subwoofer with DSP
- Sensitivity(1W/1m)：96dB
- Frequency response：40Hz-300Hz(±3dB)/35Hz-350Hz(-10dB)
- Power rating(AES)：1000W
- SPL(continue/peak)：125dB/131dB
- Nominal Impedance：8Ω
- LF：12”woofer(100mm voice coil)
- Connectors：2×NEUTRIK NL4MP 4 core socket,(1+ 1-) 1×Neutrik XLR IN;1×Neutrik XLR OUT; 1×RJ45 internet control interface;2×Neutrik Powercon IN/OUT
- Fittings：M20 Pole Mount Socket
- 3 channel Class D amplifier module：Power output 4Ω:750W×2 Power output 8Ω:600W×2；1500W×1
- With DSP：1 in 3out
- Gain：38dB
- SNR：115dB(A)
- Working voltage range：AC100-240V, 50/60Hz
- Dimension(H×W×D)：310×520×500mm
- Weight：25kg
Features
ML12SA is the 12 inch ML series "active subwoofer, with 2 channel active power amplifier module (1500 w / 8 Ω x 1;600 w / 8 Ω x 1), with DSP (1 in 3 out) digital audio processing functions, built-in presets can be preserved and loaded ; It has high sound pressure level output and high fidelity sound reinforcement performance. Very compact and lightweight when used with ML series full-range column. The system is very convenient and fast to install.
