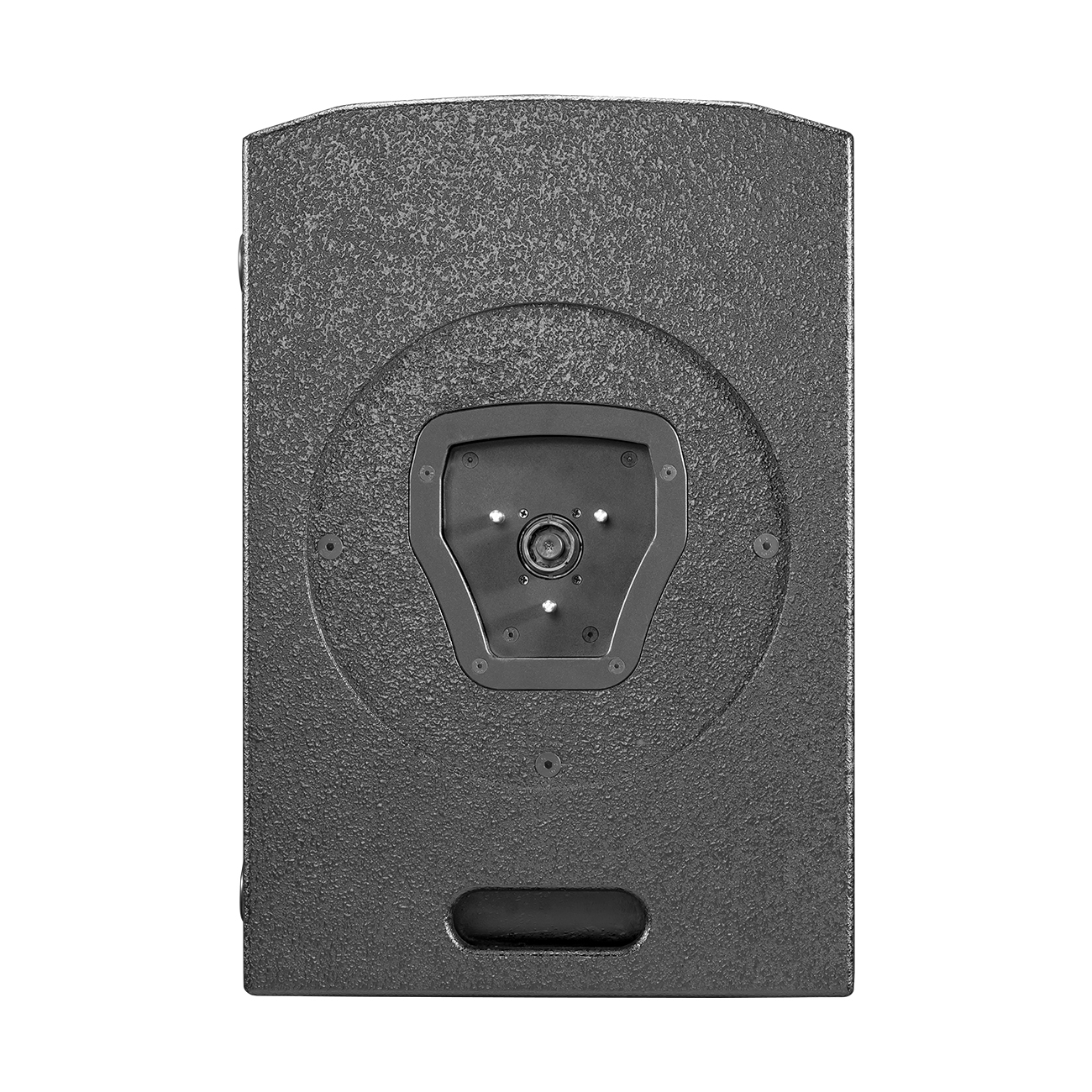

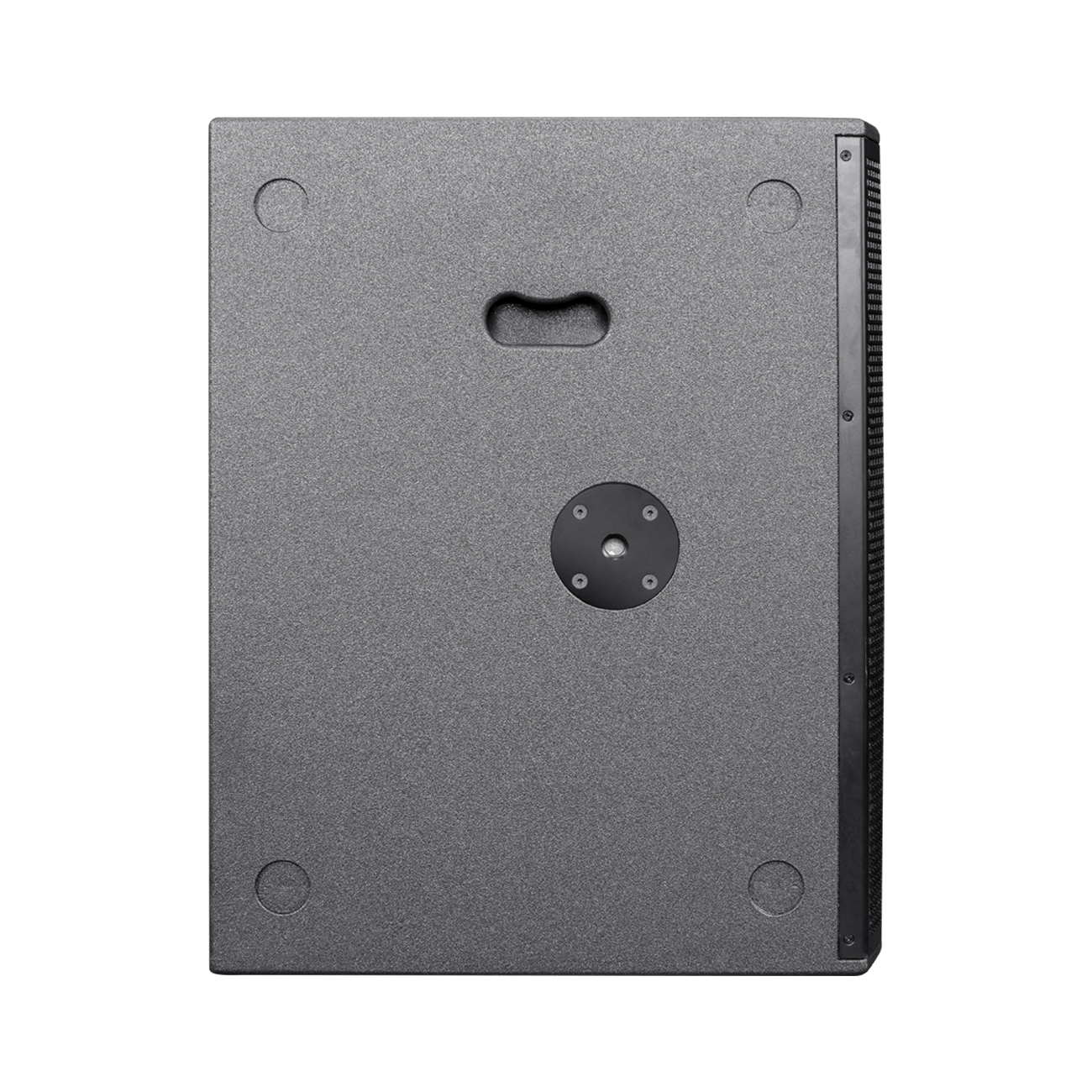

ML15SA
single 15”active subwoofer with DSP
Application:Conference room, Auditorium hall, Banquet Hall, Concert Hall, Church, FOH for Bars, FOH for medium and small touring system
Specifications
- System type:single 15”active subwoofer with DSP
- Sensitivity(1W/1m):97dB
- Frequency response: 35Hz~200Hz(±4dB)/30Hz~250Hz(-10dB)
- Power rating(AES):800W
- SPL(continue/peak):126dB/132dB
- Nominal Impedance:8Ω
- LF:15”woofer
- Connectors: 2×NEUTRIK NL4MP 4 core socket,(1+ 1-)； 1×Neutrik XLR IN;1×Neutrik XLR OUT; 1×RJ45 internet control interface;2×Neutrik Powercon IN/OUT；
- 3 channel Class D amplifier module
- Power output 2 8Ω:600W×2;1500W×1；
- Gain:38dB
- SNR:115dB(A)
- Working voltage range:AC100-240V, 50/60Hz

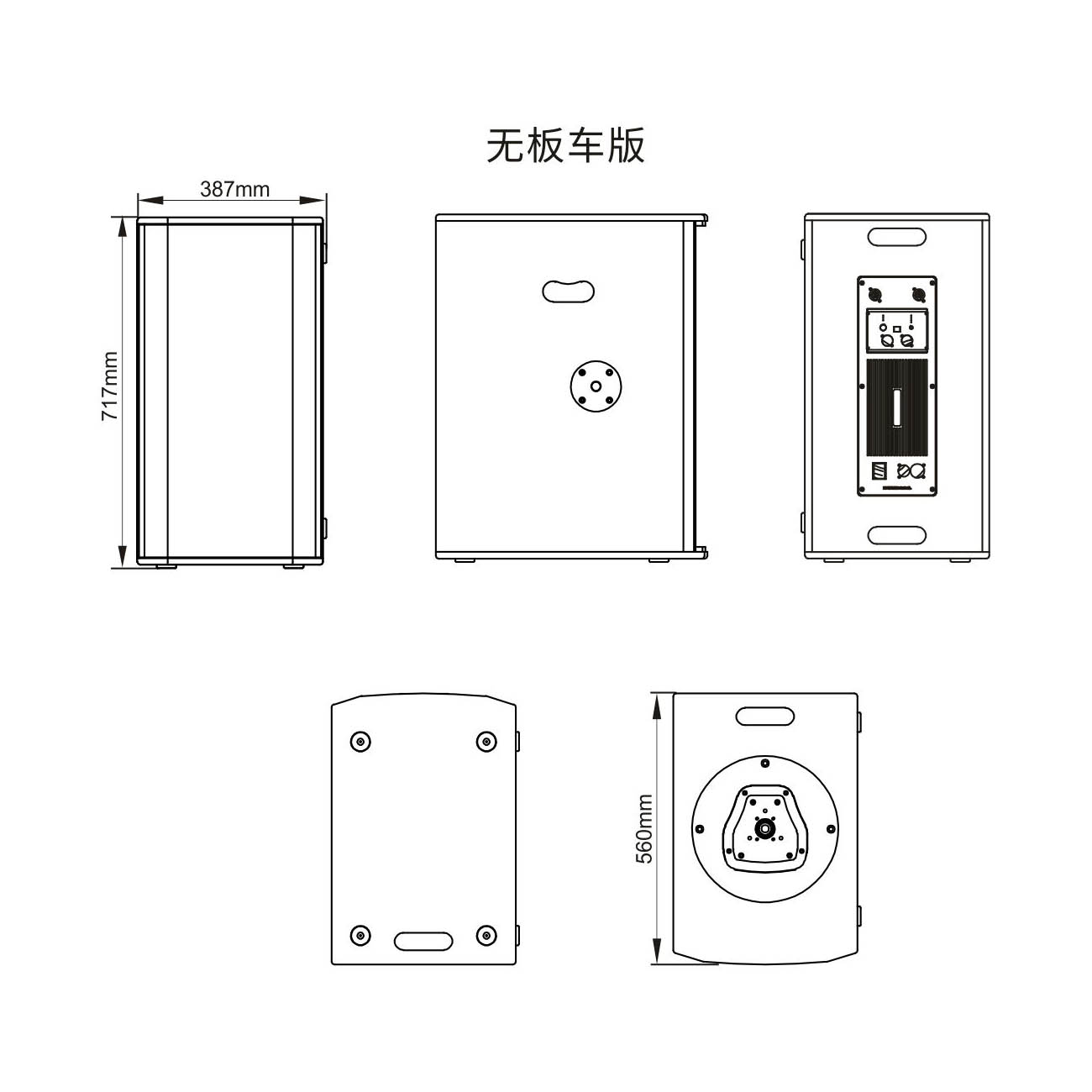

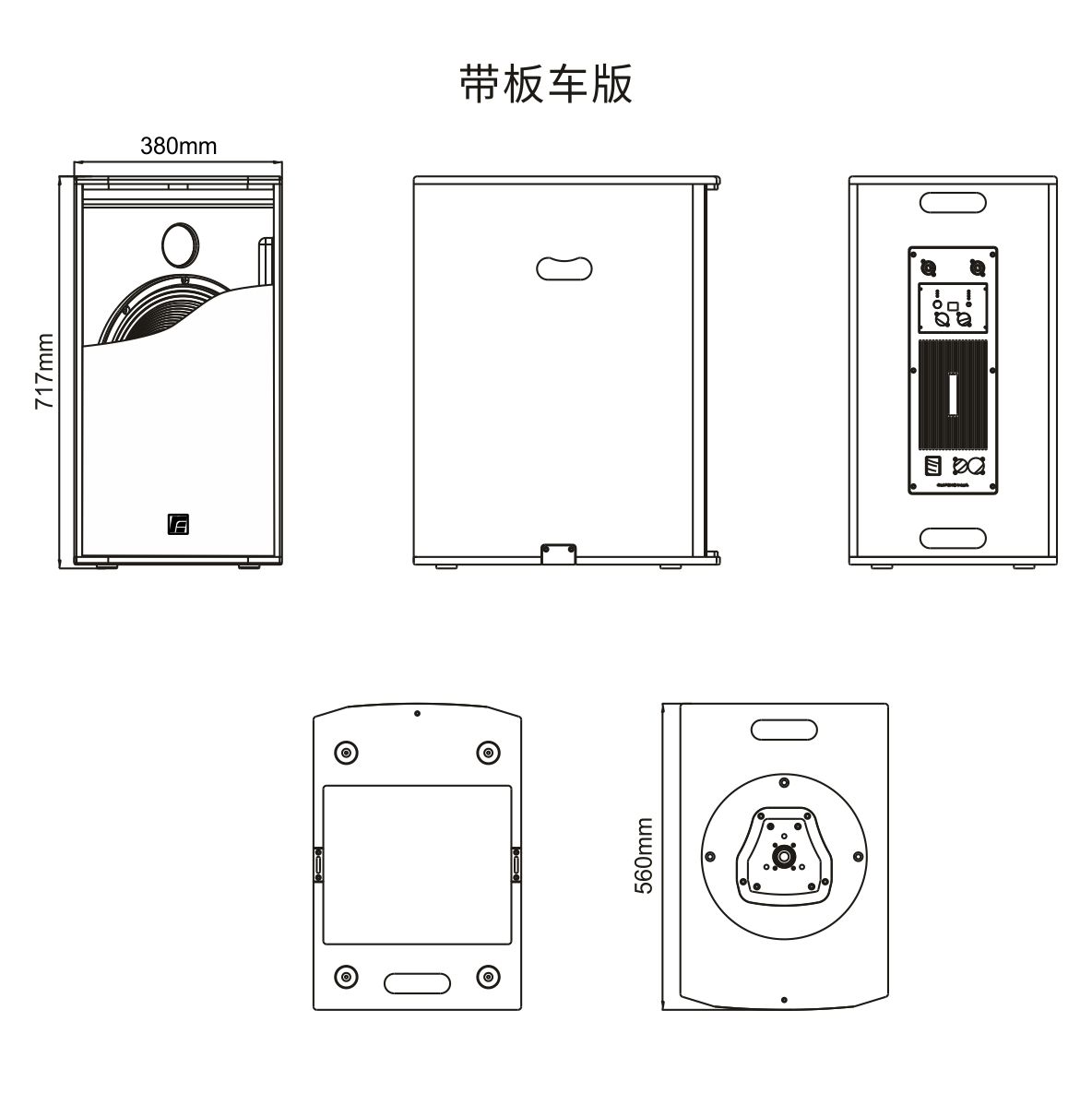

- Dimension(H×W×D):380×560×710mm
- Weight:32kg
Features
ML15SA is 15”active subwoofer for ML series,with bulit-in 3channel active amplifier module（1500W/8Ωx1；600W/8Ωx2）,with DSP（1 in 3 out）digital audio process function，preservable and callable presets program；high sound pressure level output and high fidelity sound amplifying performance,combined with ML8F full range column speaker,it is very easy installation,designed to provide high definition sound for fixed installation and small touring sound reinforcement system.
