MH212C
Dual 12”Three-way Bi-amp Coaxial point source speaker
Application:Theater,Odeum,Auditorium,Banquet hall,Multi-function hall,FOH for Stadium
Specifications
- System：Dual 12”Three-way Bi-amp Coaxial point source speaker
- Sensitivity(1W/1m)：HF:105 dB MF:97 dB LF:95 dB
- Frequency response：45Hz~20kHz(±2dB)/40Hz~20kHz(-10dB)
- Rated power(AES)： HF/MF：475W / LF：1000W
- SPL(Continuous/Peak)：HF:123/129dB
- Dispersion(H×V)：90°×90°
- Norminal impendance：HF:8Ω MF:8Ω
- Crossover：200Hz
- LF unit：1 × 12″unit(4″voice coil)
- MF unit:1× 12″unit(3″voice coil)
- HF unit:1× 3″(3″voice coil)
- Connector:2×NEUTRIK NL4MP 4pin plug，LOW: 1+ 1-，MID/HI: 2+ 2-

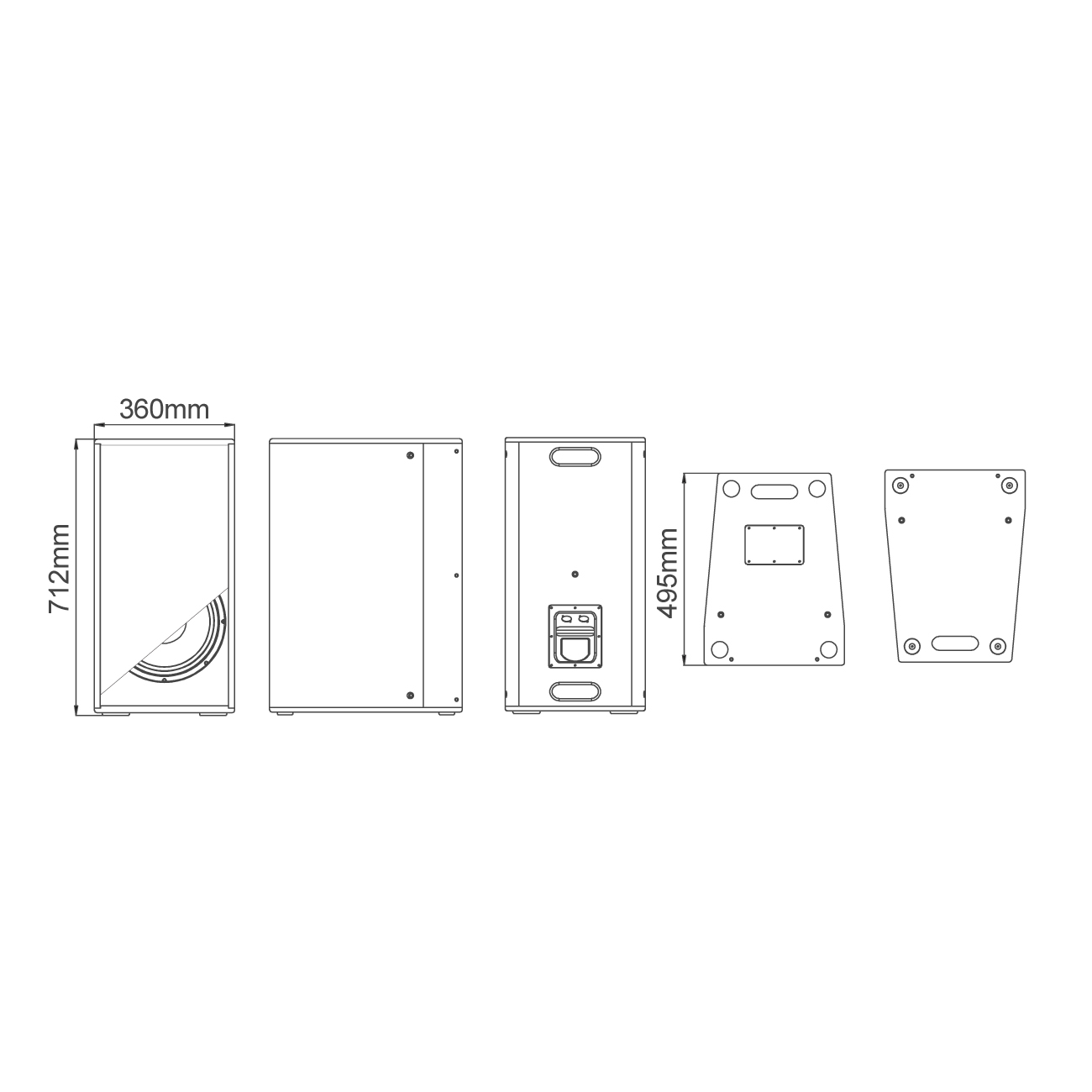

- Dimension(H×W×D):712×360×495mm
Features
Generated throughout the frequency response range,a smooth transition between high frequency and low frequency is achieved, rather than the polarity interference between the two original points in the traditional loudspeaker.Providing high-definition sound solutions in frequency and time with optimal sound reduction, accurate audio-visual positioning, and excellent flexibility.
