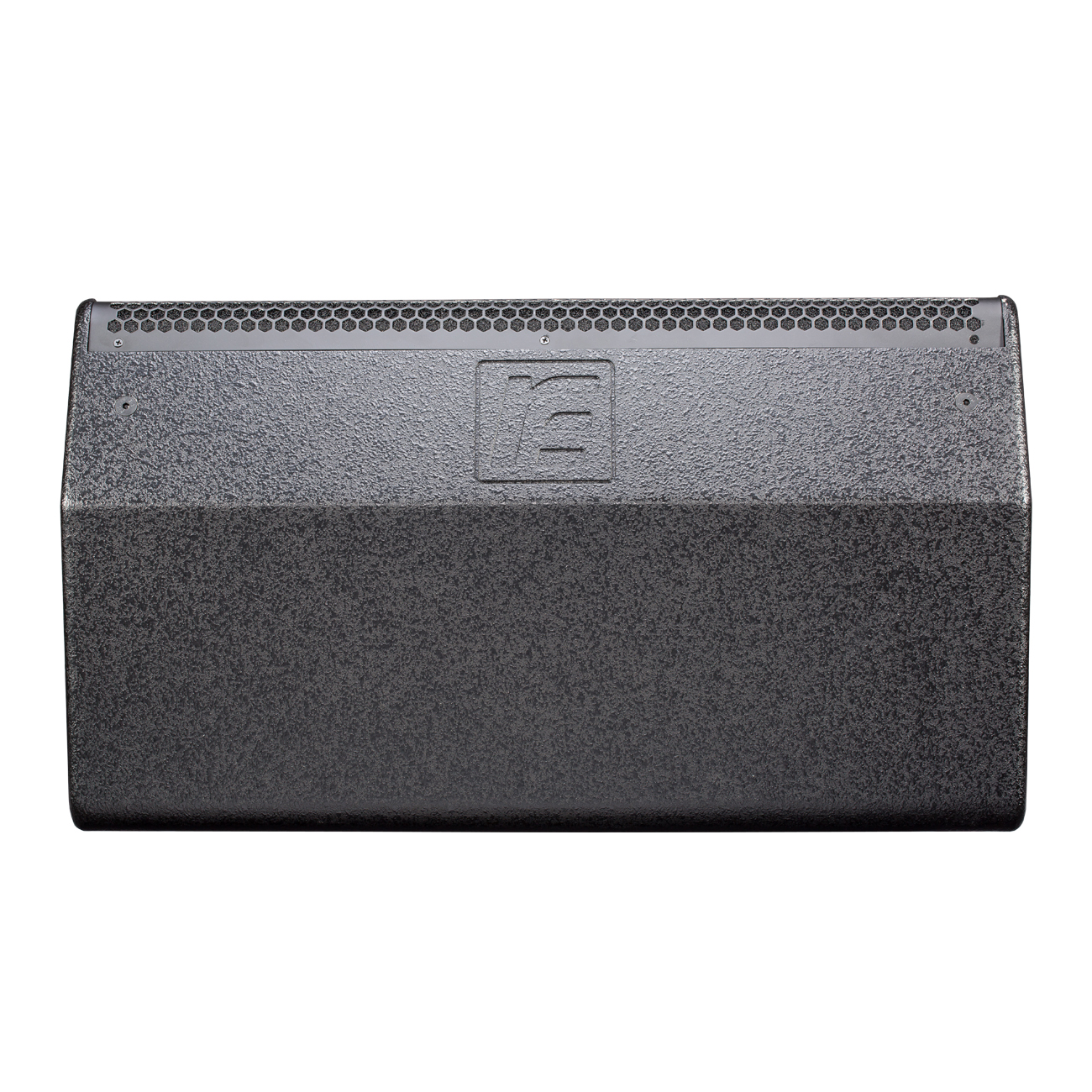

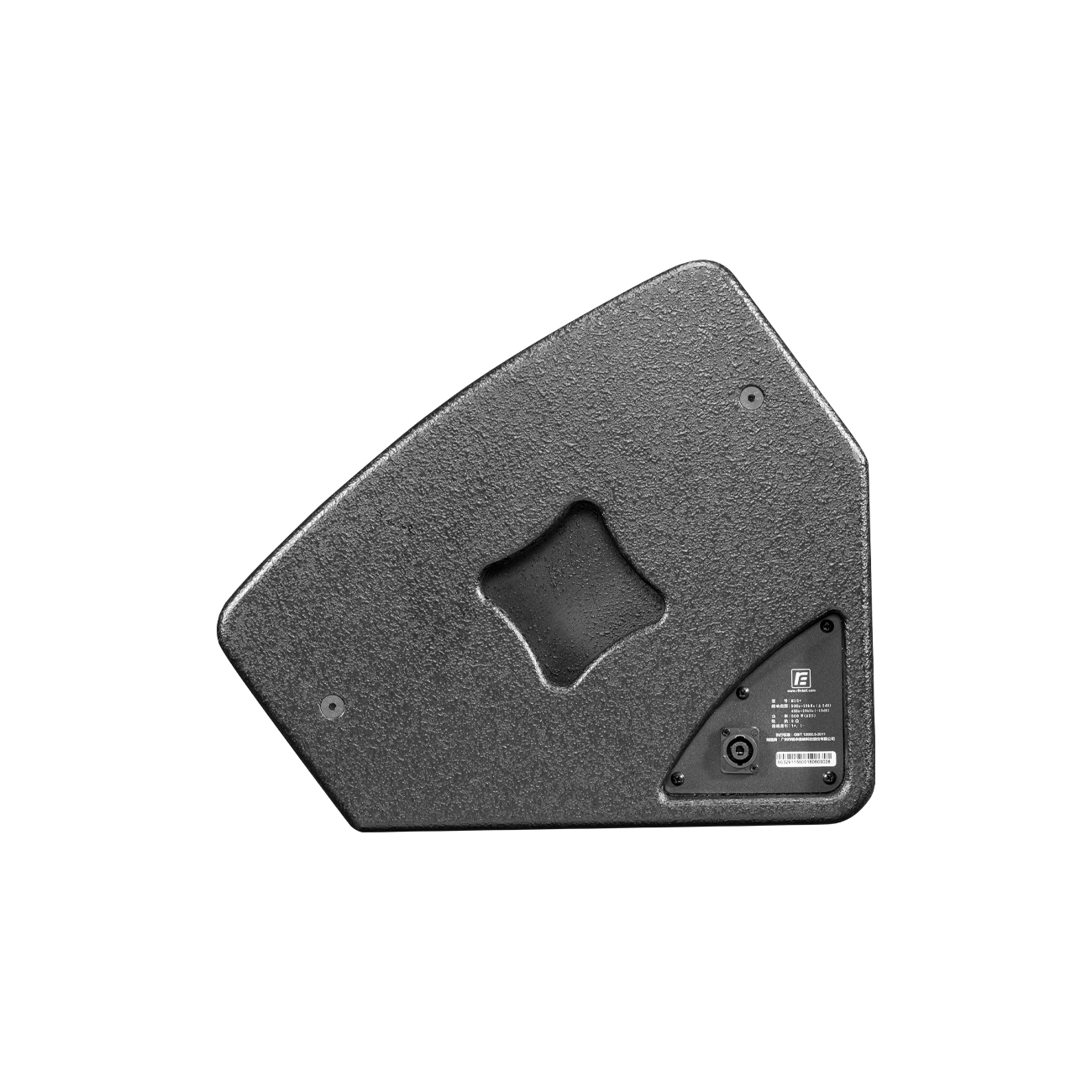

M12+
Single 12’’ Two-way Speaker
Application:Theatre,Auditorium,Banquet hall,Conference hall,multi-function hall,Stage monitor,Side monitor.
Specifications
- MODEL NO.：M12
- System type：Single 12
- Sensitivity( 1W/1m )：99dB
- Frequency response：50Hz~20kHz(±3dB)/45Hz~22kHz(-10dB)
- Power rating( AES )：450W
- SPL(continue/peak）：125dB/131dB
- Dispersion(H×V)：90°×60°
- Nominal impedance：8Ω
- LF：1×12
- HF：1×3

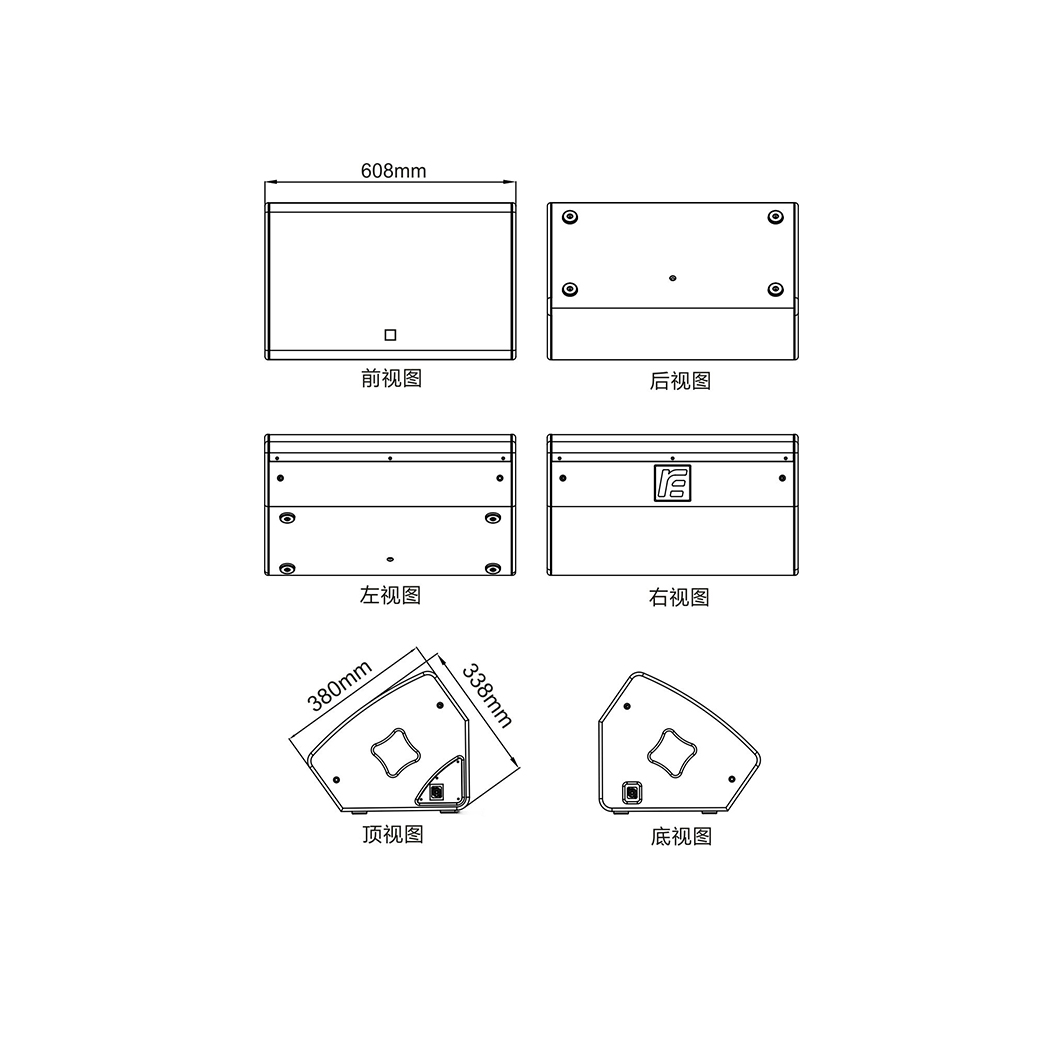

- Dimension(H×W×D)：340×615×380mm
- Weight：21kg
Features
M series is a monitor speaker designed for stage,equipped with 90°(H)×60°(V) horn;Enclosure angle with ground is 55 ° to 35 ° optional,satisfied long or short distance stage needs; It has 9xM8 rigging point.
Data Download
