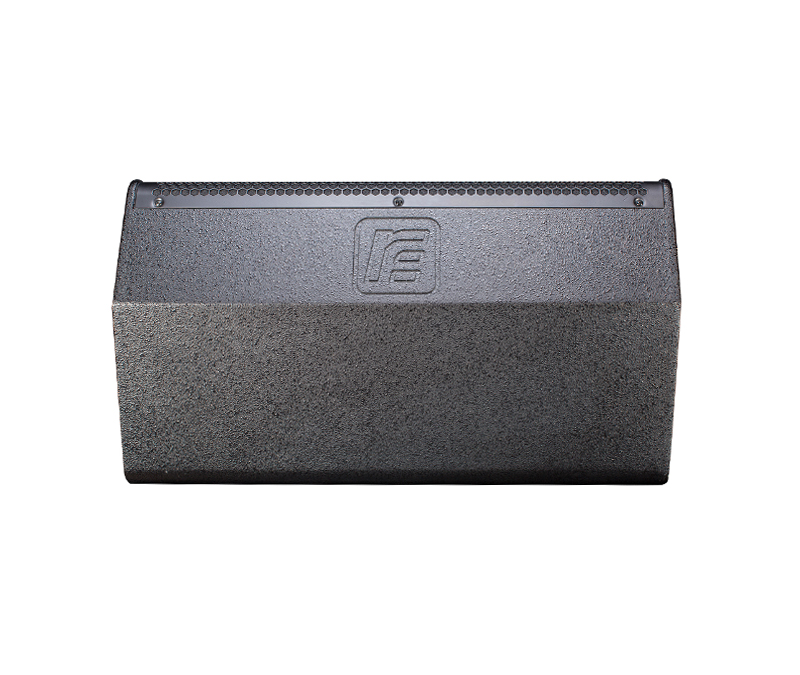

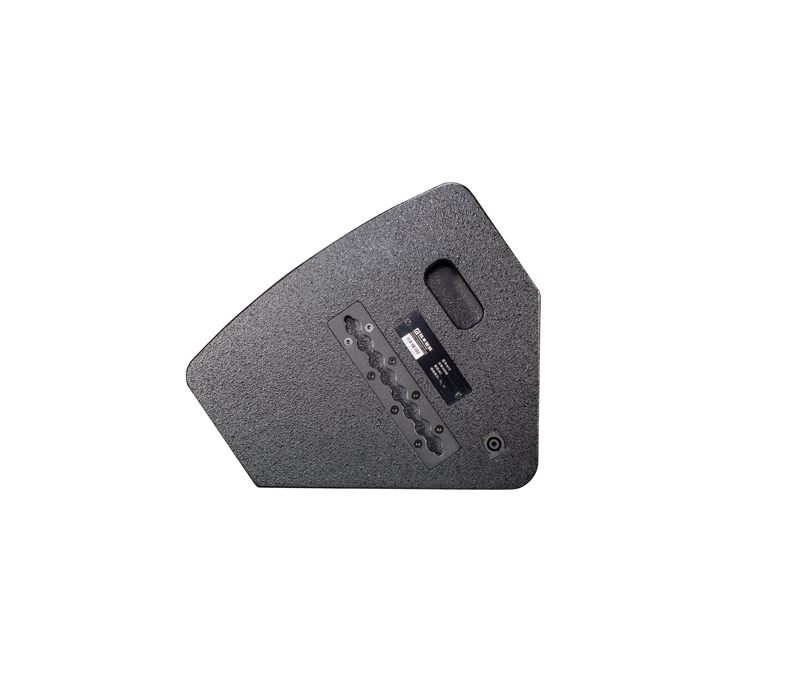

M15+
Single 15’’ Two-way Speaker
Application:Theatre,Auditorium,Banquet hall,Conference hall,multi-function hall,Stage monitor,Side monitor.
Specifications
- MODEL NO.:M15+
- System type:Single 15
- Sensitivity( 1W/1m ):100dB
- Frequency response:50Hz~19kHz(±2dB)/45Hz~20kHz(-10dB)
- Power rating( AES ):400W
- SPL(continue/peak）:127dB/133dB
- Dispersion(H×V):90°×60°
- Nominal impedance:8Ω
- LF:1×15
- HF:3
- Connectors:2×NEUTRIK NL4MP，1+ 1-

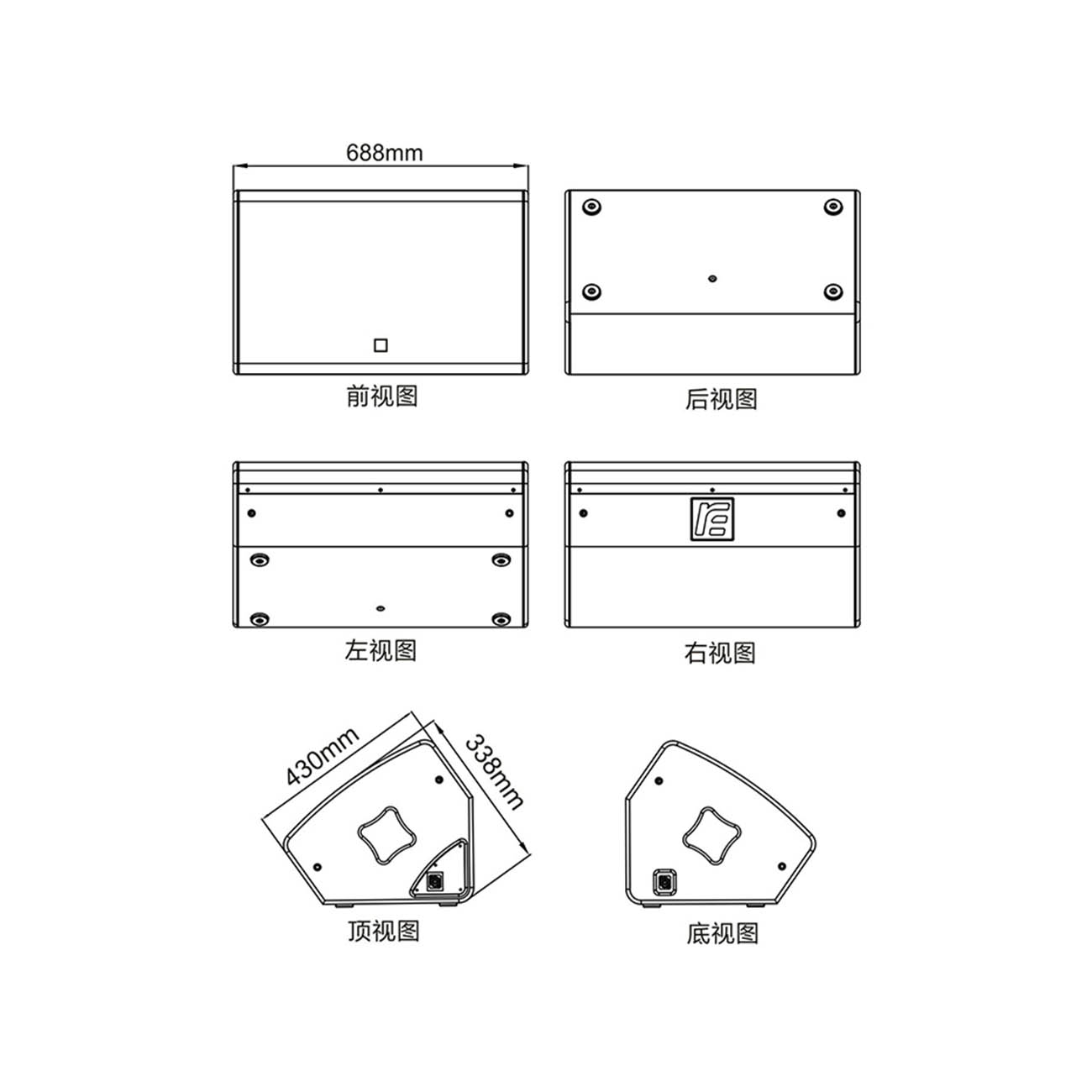

- Dimension(H×W×D):430×688×338mm
- Weight：35kg
Features
M series is a monitor speaker designed for stage,equipped with 90°(H)×60°(V) horn;Enclosure angle with ground is 55 ° to 35 ° optional,satisfied long or short distance stage needs; It has 9xM8 rigging point.a
