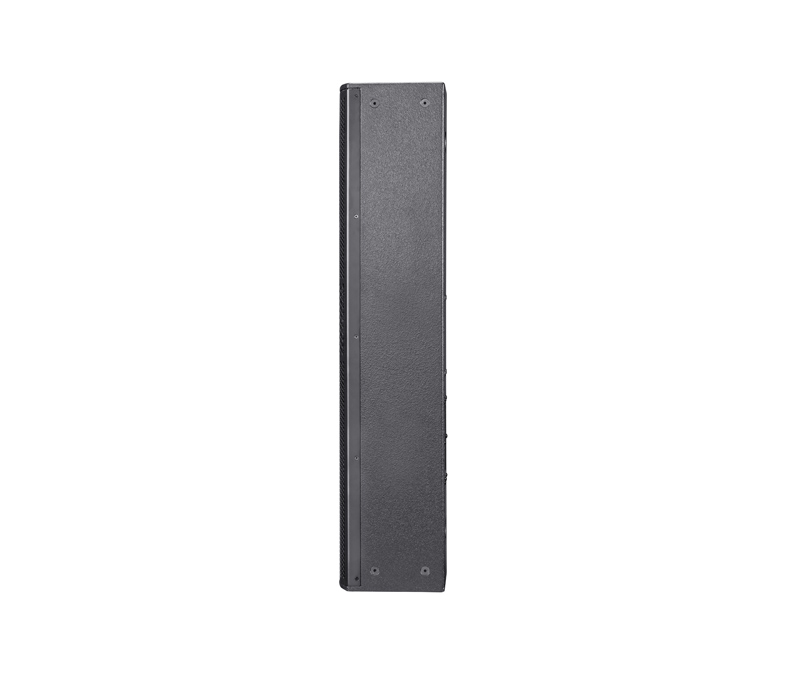

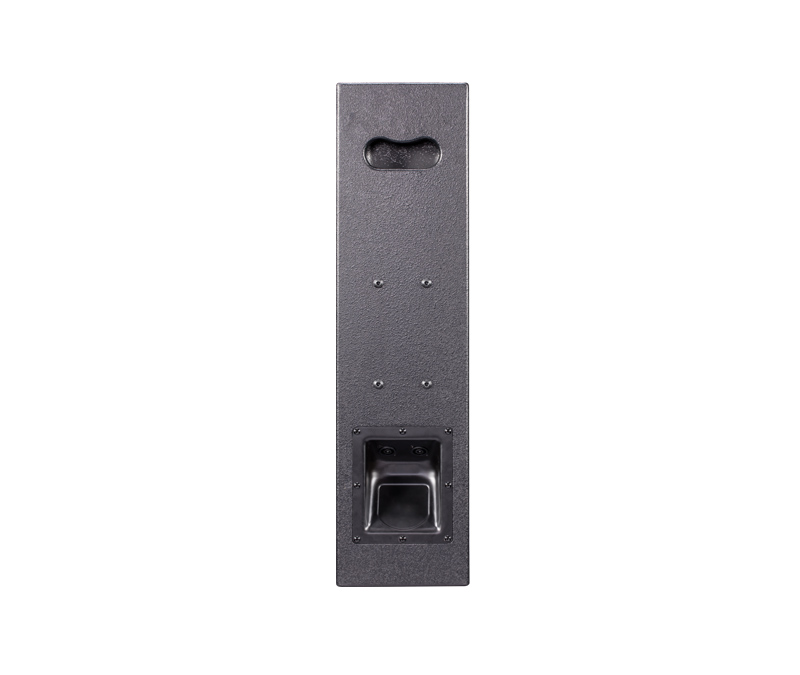

L7
4×6.5" Two-way Speaker
Application:Conference hall,Auditorium,Banquet hall,Concert hall,Church,Rock Bar,Small to medium touring system Supporting large-scale sound reinforcement system fills
Specifications
- System type:4×6.5
- Sensitivity(1W/1m):100dB
- Frequency response:130Hz~20kHz(±2dB)/110Hz~20kHz(-10dB)
- Power rating(AES):600W
- SPL(continue/peak):124.5dB/130.5dB
- Dispersion(H×V):70°×70°
- Nominal Impedance:8Ω
- LF:4×6.5
- HF:1×1
- Connectors:2×NEUTRIK NL4MP 4 pin socket，1+ 1-
- Fittings:16×M8 fittings

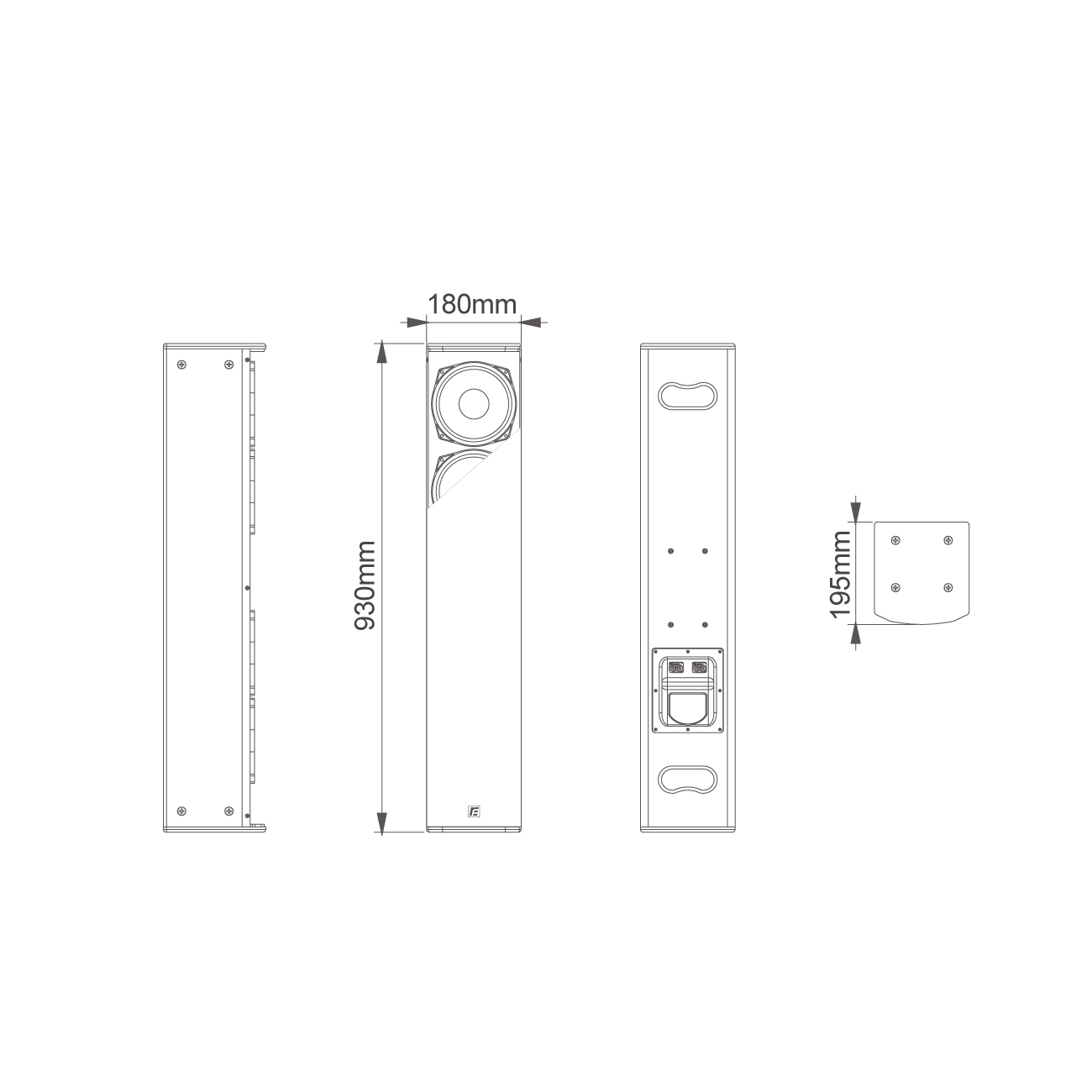

- Dimension(H×W×D):930×180×195mm
- Weight:22kg
Features
The system applies the arch symmetrical structure design, SCC Symmetrical Coplanar Coupled technology patent，to make MHF coupling a composite point source for improving its image specificity.With Polyurea coating,Strong and wear - resistant, with all-weather protection.
The application of unanimous acoustic plane technology to improve the phase response, which makes the MF phase response ≤±20°，full-BW ≤±36°.Different ways of hanging installation are available for convenience.
