Specifications
- Max. Input Current : 220V/45A
- The 1st-2ndchannel : Max. Output Current for each line 10A(with fliter)
- The3rd-8th channel : Max. Output Current for each line 16A
- Input Power: AC220V 50Hz
- Communication interface: RS-232(Cascade ,center control,General control port of PC machine)
- Time spacing between ON and OFF: 0.5S-3.5S（can be set）
- Dimension(W×D×H): 488×260×66mm

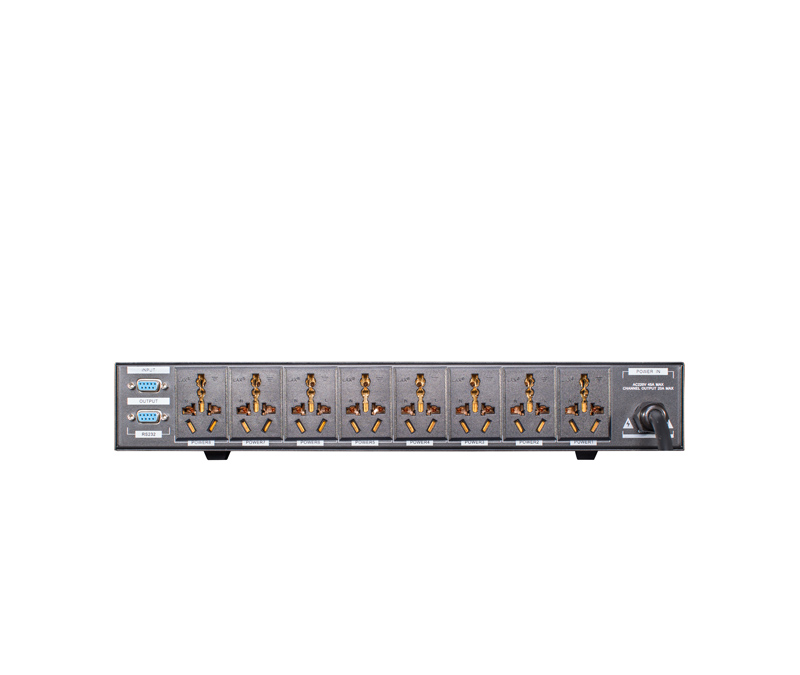

- Power Output: 8×16A universal jack
- Voltage indicator: 0-300V
- Total Harmonic Distortion: ≤0.1%
Features
►P-8i power sequence controller has 8 channels, CH1 and CH2 with fliter ,providing more stable power supply.
►Equipped with high-precision input voltage indicator.
►8 independant input and output controller with indicator light ,can switch on/off freely ,there are one time sequence switch and one power control switch.
►When it is sequential mode can realize unlimited cascade, power controller mode can be 7 linked.
►Through 232 interface to achieve mixed control of time sequence and power supply.
