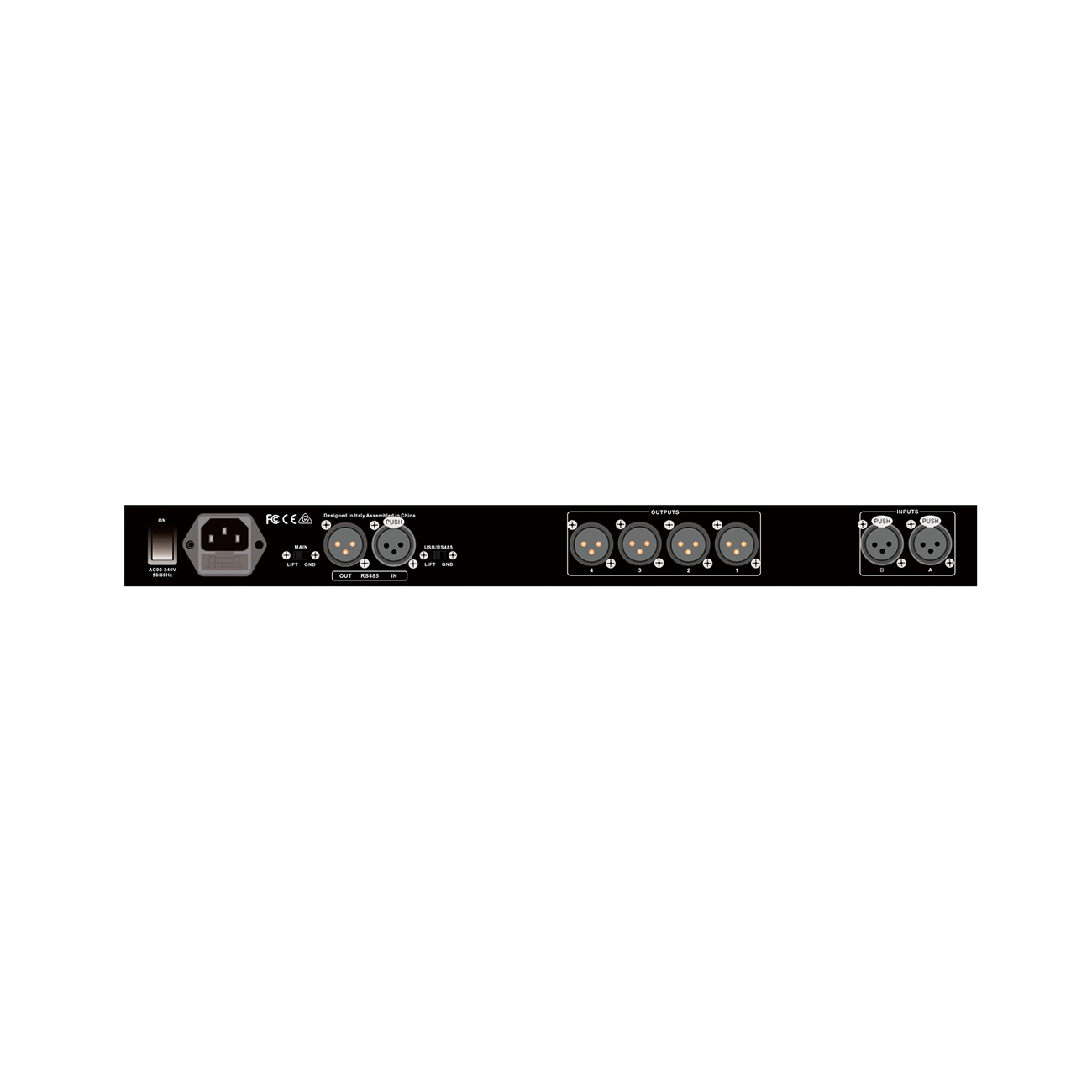

DP-24II
Digital Signal Processors 2 IN 4 OUT
Digital Signal Processors 2 IN 4 OUT
- Input: 2-channel balanced input
- Output: 4- channel balanced output
- Sampling rate: 48kHz
- AD&DA conversion: 24bit
- Maximum input level: +12dBu
- Maximum output level: +18dBu
- Frequency response: 20Hz-20kHz，-0.5dBu
- Total harmonic distortion + noise: ≤0.05%
- Signal-to-noise ratio: ≥92dB
- Parameter equalizer: 11 segments for each input and 7 segments for each output
- Signal generator: Optional "pink noise" and "white noise" test signals
- Control interface: 1 RS485 control interface, 1 USB interface
- Power supply: AC 90-240V 50/60Hz
- Dimension (H × W × D): 44×483×229mm
- Weight: 3.5kg
►The functions of the DP-24II input channel include the level gain control and delay control; The functions of the output channel include the frequency division controller, amplitude limiting controller, output gain control, phase control, and delay control. The limiter has functions such as startup time, release time and input/ output functions with 1st and 2nd order all pass filters. The output channel has a channel linking function. Through the related links, the output channels of the same type can be edited simultaneously.
►Chinese and English versions of computer control software are provided. Based on this, the software debugging is very intuitive. Computer control interface: RS485, USB interface, built-in 6-bit password encryption function.
-
Ruifeng Intelligent Enterprise AlbumDP-24II
-
DP-24II CDs Installation File and Pre-programmingDP-24II
-
DP-24II Product CatalogDP-24II
