Specifications

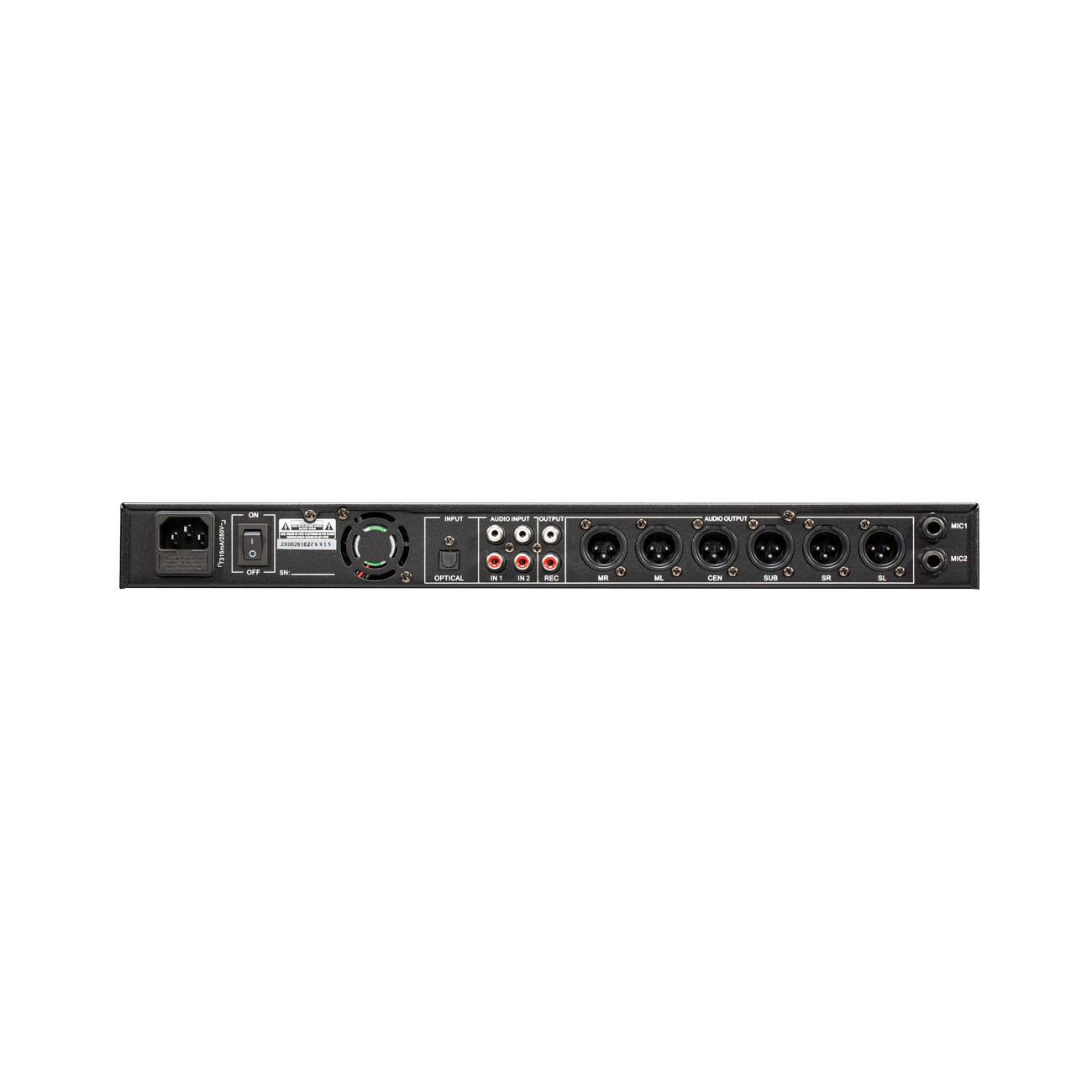

- Karaoke digital effector with 3 microphone inputs, 1 fiber optic digital audio input, 2 sets of stereo analog audio inputs, 5.1 channel output, and 1
- Adopting the latest ADI five series chips and a 64 Bit high-speed dual core DSP processor.
- The music channel has 9 PEQ stereo equalizers, and the microphone has 15 PEQ individually adjustable.
- Stereo DSP with multiple digital reverbs and feedback suppression function.
- The output channel has 7 parameter equalization, high and low pass, mixing ratio, polarity, delay, voltage limit, and gain functions.
- Equipped with a VOD infrared interface remote controller and computer control software.
- Equipped with RTA real-time spectrum analysis function, it can quickly find whistling frequency points.
- The three-level engineering password locking function allows users to set the device locking level according to their usage needs.
- Can store 9 sets of scenes, and can quickly switch to 3 scene modes on the front panel of the machine.
- Maximum output level：+14 dBu(4V RMS）
- Music input gain: 0dB,+3 dB,+6 dB (three levels optional)
- Microphone sensitivity：64mV（Out：4V）
- Signal to Noise Ratio：＞90dB
- Power supply：220V/AC/50Hz
- Size(W×D×H)：483mm×218.5mm×47.5mm
- Weight: 3.8Kg
Features
►ADI 5th chip, 64-Bit high speed DSP.
►9 segments PEQ stereo equalizer, automatic identification for audio digital input.
►Microphone 15 segments PEQ individual adjustment, digital audio process system, DSP digital reverb.
►Microphone noise elimination setting, moving frequency 2Hz~8Hz selectable feedback suppression and “OFF”.
►Effect channel with high and low pass.
►7 segments PEQ per channel with delay, reverb and gain function.
►VOD Infrared interface control.
►RS232 PC connection with software.
►RTA display.
►Password locking functions supports personal setting.
►9 settings storage.
