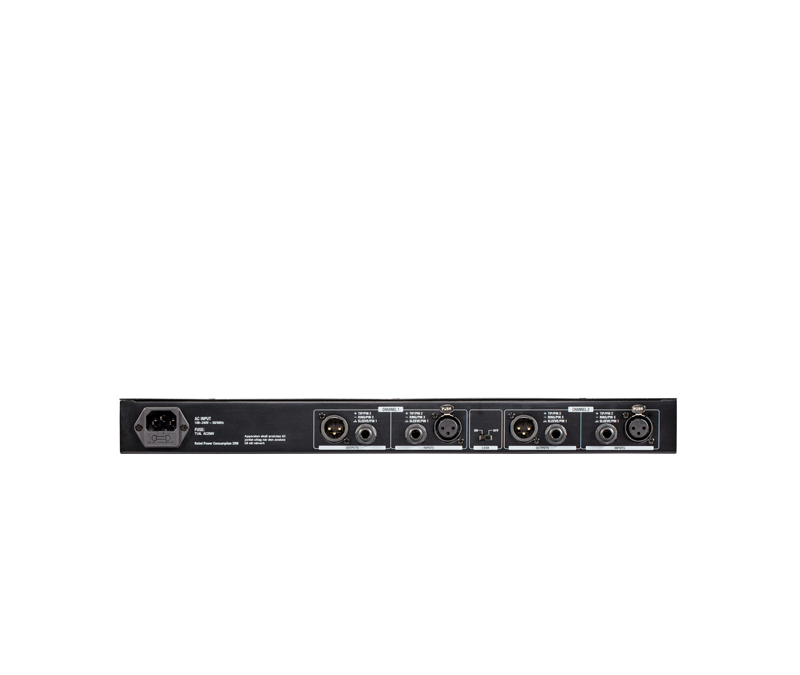

FBQ4000

Return to List Download

Specifications

Analog input: 2×XLR&2×1/4"TRS balance/unbalance Input Impedance: 3.6KΩ Max input linear level: +15dBu
Analog output: 2×XLR&2×1/4"TRS balance/unbalance Output Impedance: 120KΩ Max output linear level: +15dBu
A/D: Dynamic range: 114dB,A-weighted A/D convert: 24bit
D/A: Dynamic range: 106dB,A-weighted D/A convert: 24bit
Sampling rate: 48kHz
Dynamic range: 106dB, A-weighted
THD: 0.01%, 1kHz
S/N ratio: 106dB, A-weighted
Frequency response: 20Hz~20kHz(±0.5dB)
Inter-channel crosstalk: 86dB,A-weighted
input-to-output crosstalk: 86dB,A-weighted
Working voltage: 230VAC,50/60Hz 115VAC,50/60Hz
Consumption power: 15W
Dimension: 483×195×44mm
Net weight: 3.1kg

Features

►2 in 2 out dual-channel auto search feedback frequency.

►24 programming controllable filter storage per channel

►Selectable working mode for music and microphone

►Fixed mode and real-time mode work simultaneously

►Signal level indicator led and 24 filter led per inputs

►2 XLR and 2 TRS balanced input connector

►2 XLR and 2 TRS balanced output connector

►The front panel with button lock for preventing misoperation
