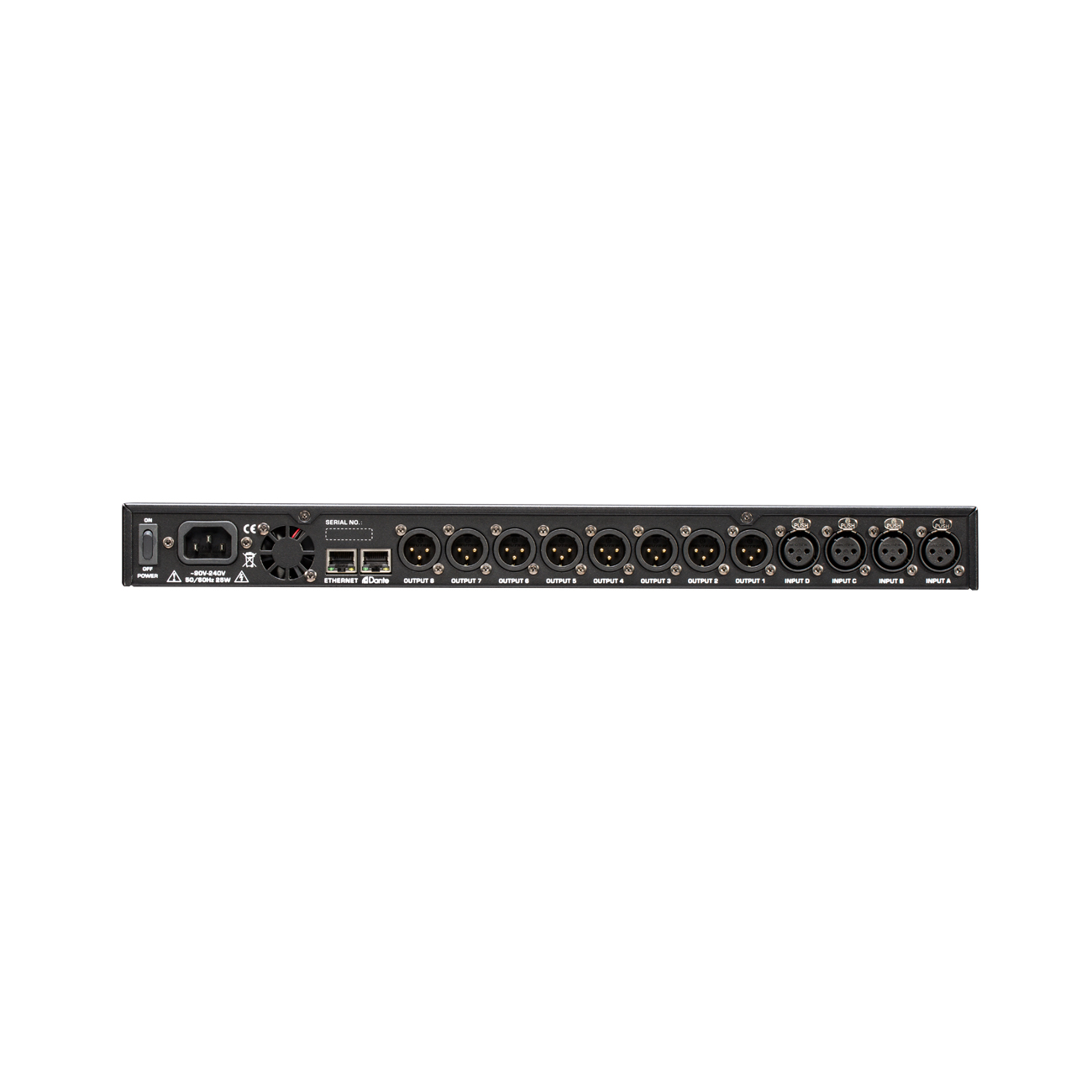

TP-428II
Digital Signal Processors 4 IN 8 OUT
Digital Signal Processors 4 IN 8 OUT
- Max input level: +20dBu
- Max output level: +20dBu
- Frequency Response: 20Hz～20kHz
- Dynamic Range: >110dB，20Hz-20kHz,without weighted
- Sample rating: 96kHz，24bit
- THD+N: ≤0.038%，20Hz-20kHz+10dBu
- SNR: >100dB
- Internal channel crosstalk: ≤-80dB
- Balanced: Input 13 segments PEQ for every channel,output 15 segments PEQ( with step 1 and step 2 order all-pass filters)
- Delayed: Input one second for per channel/output one second for per channel
- Control interface: Dual Ethernet port(RJ45)device and USB interface, connected with PC to make real-time control and monitor
- Operation system: Support for Windows
- Scenario: 30 groups preset data
- Power rating: AC 90-240V 50/60Hz
- Dimension(H×W×D): 44×483×285mm
- Weight: 3.4kg
►TP-428II is a upgrade 4 in 8 out digital processor, using 96kHz sampling rate, 32bit floating point DSP processor as the central processing, greatly improve the dynamic range of signal processing; Maximum input level +20dBu, maximum output level +20dBu; Each input with 13 equalization, each output with 15 equalization, equalization channel with level 1 and level 2 all-pass filter, and each channel equalization parameters can be saved and called independently; Processor built-in test signal generator, can choose "sine wave", "pink noise", "white noise". ►With 2 RJ-45 network control interface (TCP/IP protocol), automatic access to computer IP address, plug and play; At the same time, these two RJ-45 network ports can also be used as the main and standby signal transmission interfaces of the DANTE version devices. With 1 USB control interface (driver free) and PC software connection control.
