P-8A
8 Channel Power Sequence Controller
8 Channel Power Sequence Controller
Specifications

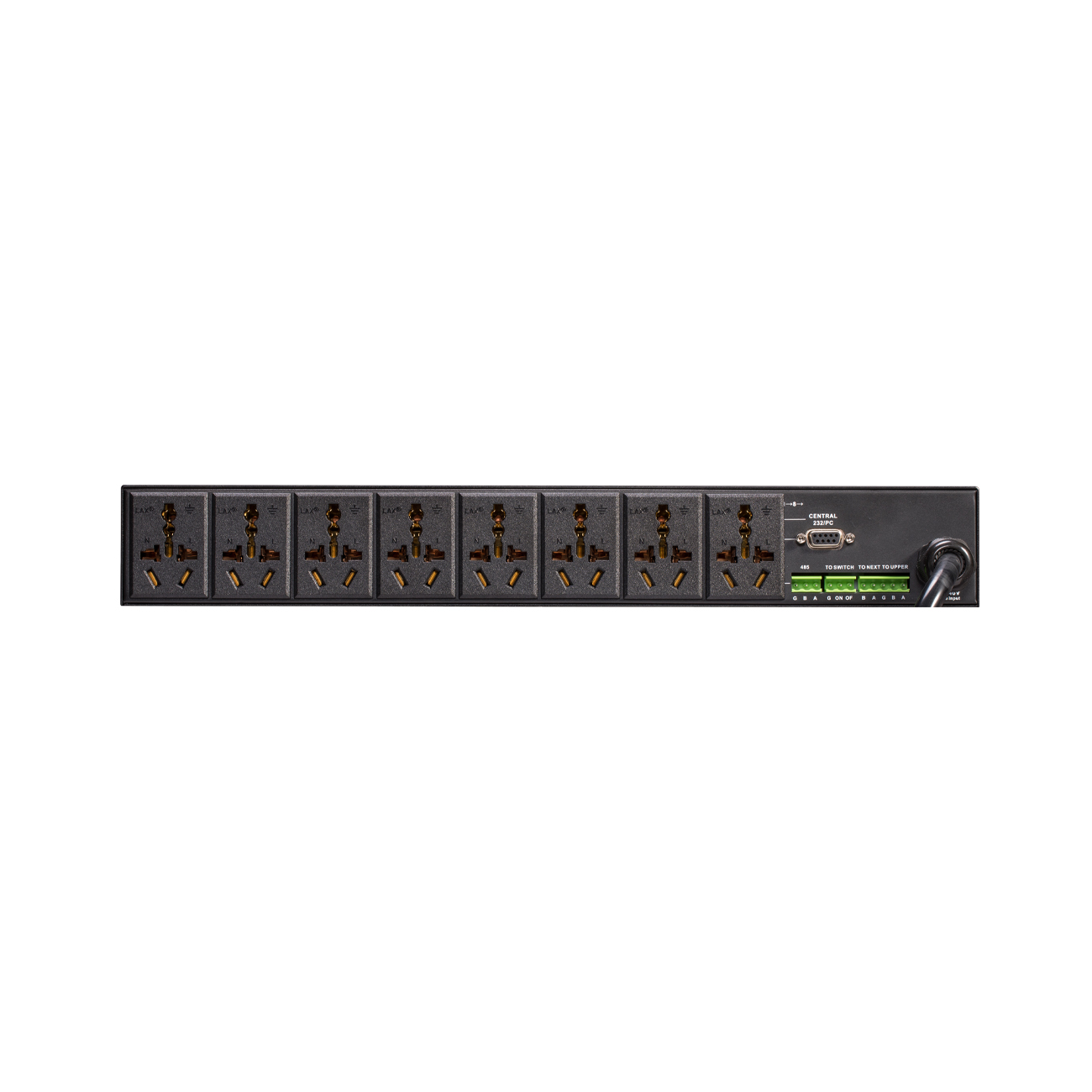

- Power socket: 8×16A universal socket on the back panel,1-4 channels with filtering function,1×16A universal socket on the front panel
- The maximum current of single channel: 16A
- The total input current capacity: 32A
- Central control interface: RS232 and RS485
- Control software: With computer software to achieve display control mode
- Cascade: Maximum cascade length up to 1000m (485 interface)
- Channel: Each channel can be set 0-999 seconds delay
- Projector electric curtain: Lifting frame, electric curtain could be controlled by P-8A
- standard power cable: Wth 1 m length 3×4 square national standard power cable
- Dimension(W×D×H): 483mm×294.5mm×63mm
- Weight: 6.2Kg
Features
►8 - channel power timing sequence controller with digital voltage display meter.An external switch can be connected to open and shut down the P-8Al.
►Adopt anti-miscontact type main switch, 8 output channels (with 8 independent buttons), each channel can set 0-999 seconds delay opening/closing time, to prevent current impact; 1-4 channels with filtering function, can set 1-199 the ID number; With central control RS232/PC and RS485 interface, can realize computer software control and cascading on/off; With 4 groups of interlocking channel Settings, cascade line up to 1000 meters for multiple remote line control.
