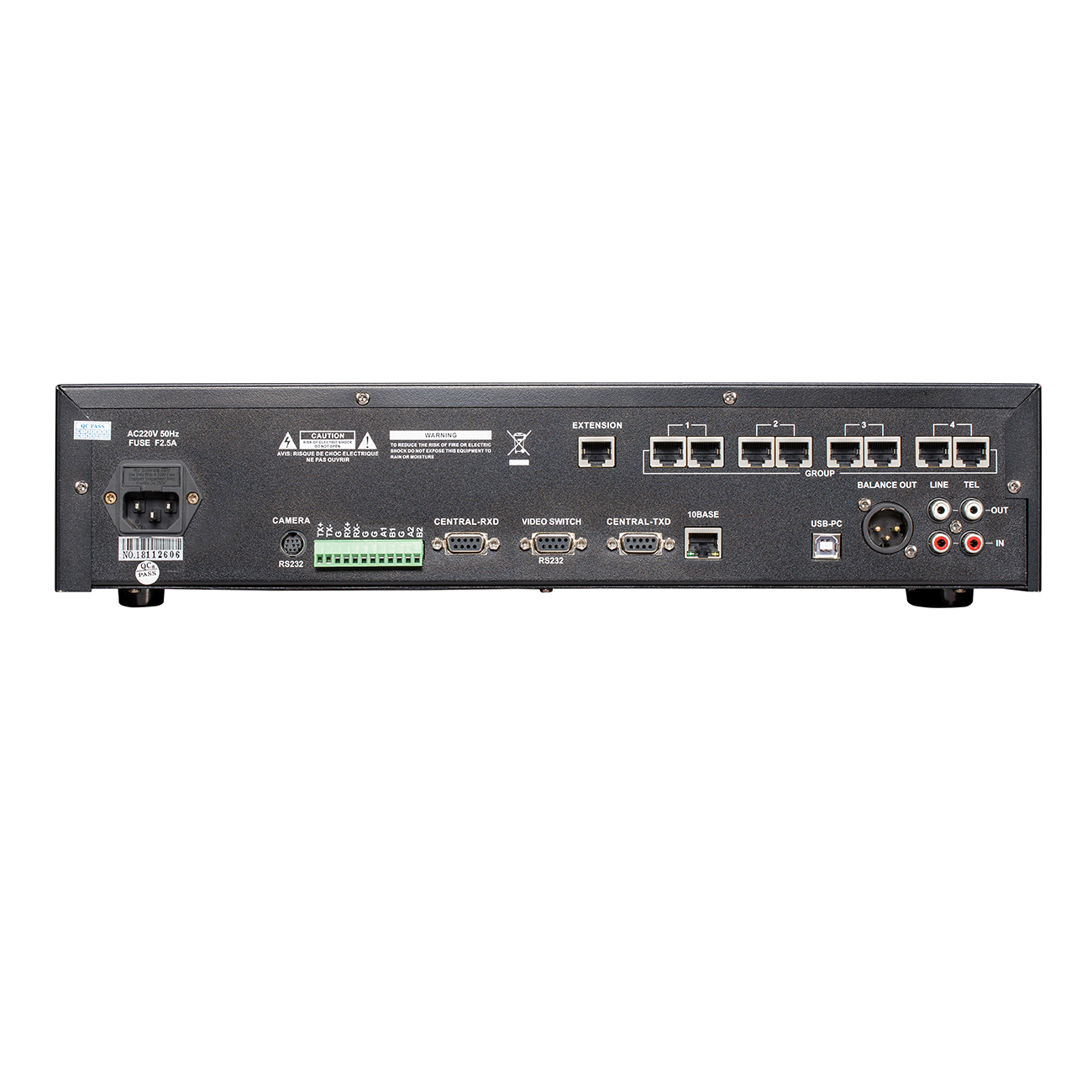

LH-102M
Cable Version with Touch Screen Host
Cable Version with Touch Screen Host
- System type: Cable Version with Touch Screen Host
- TCP/IP network interface: RJ45(1 pcs)
- Link unit interface: 4 groups RJ45(8 pcs)
- Audio output: XLR socket(1pcs),RCA socket(1pcs)
- Audio input: RCA socket(1pcs)
- Camera control port: 8P S Terminal plug (1pcs),12PPhoenix plug (1pcs)
- PC control interface: USB(1pcs)
- Conference recording interface: USB(1pcs)
- Video switching interface: RS232 serial port(1pcs)
- Central control interface: RS232 serial port(2pcs)
- Working power supply: AC 220V/50Hz
- Max current consumption: 1A
- Sensitivity: -15dB
- Frequency response: 50Hz-20kHz
- noise-signal ratio: 82dB
- Microphone quantity: 100
- Dimension(W×H×D): 483×90×323mm
- Body weight: 5.15kg
- The fuselage color: Black
►New closed-loop network mode with high-quality CAT5 or CAT6 cable to hold 25 speaker units.
►8 RJ45 in 4 groups, 2 CAT5 or CAT6 on each group to realize closed-loop connect.
►Digital circuit design; HD TFT monitor display; 4.3" capacitive touch screen for simple control.
►Web control system involved. Connectable to internet through IPAD, mobile and other communication device. Available for IOS/GOOGLE ANDRIOD/ WINDOWS.
►Multi communication interface, easy to connect with central control and other equipments.
►Parameter adjustment by upper computer through 232 serial port and USB port; USB connect for conference record.
►Support pelco P/D、YAAN、SONY EVI-D70 and BRC-Z330.
►Support HD video switch host, for maximum 6 HD video camera to connect.
►Speech mode includes discussion mode, auto mode and open mode.
►Microphone in time-limit mode.
►XLR audio output interface.
►Anti-cell phone interference.
