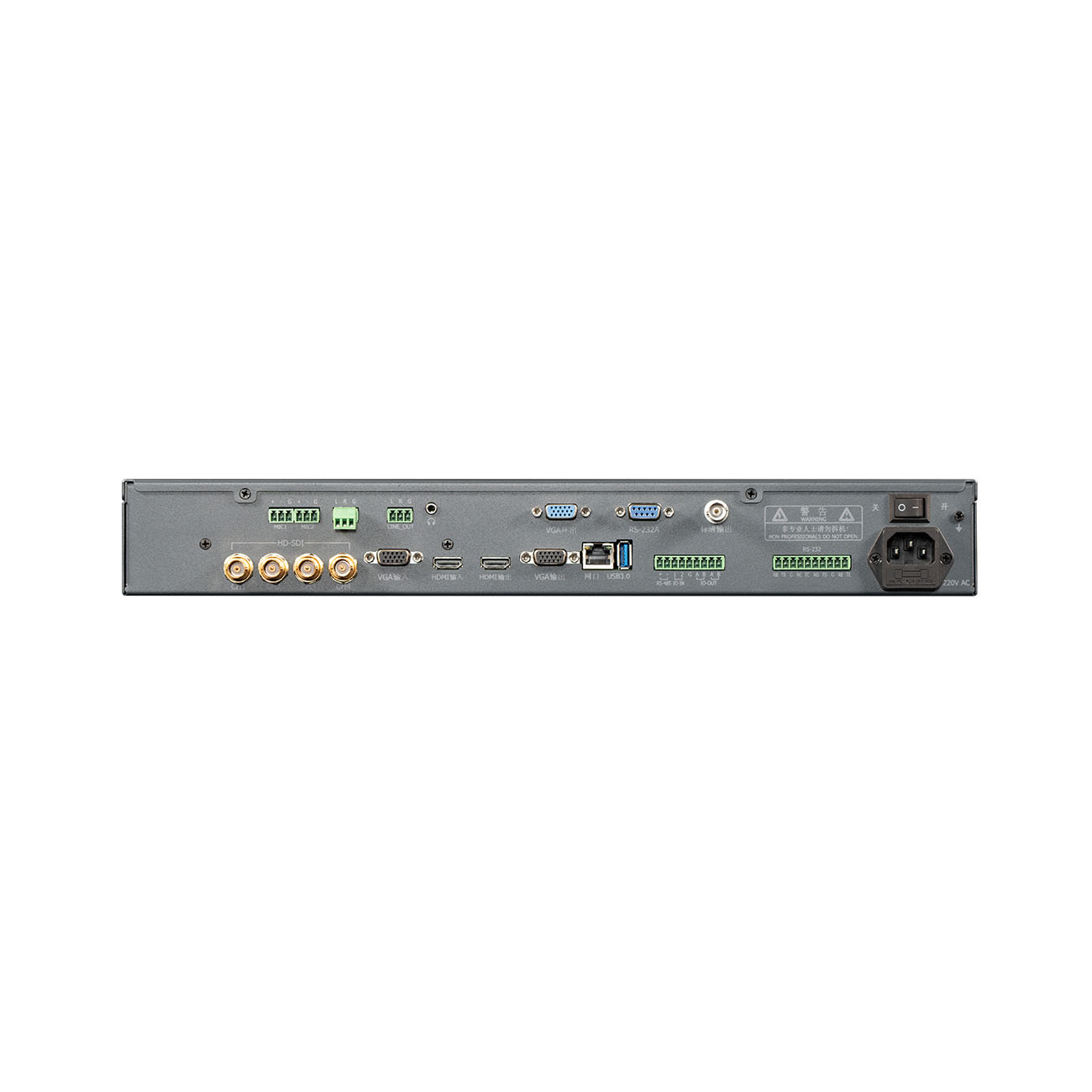

LR-10M

►In this device, the embedded Linux operating system is adopted. The device can provide the high-definition image quality, that is, the resolution of the recorded, previewed, and network transmitted images can reach 1920 * 1080.

►High fidelity stereo audio and two capacitive microphone inputs are supported. Meanwhile, 48V phantom power supply and linear audio input are equipped.

►In this product, the free recording and broadcasting mode and the mode combining the advantages of traditional film mode and resource mode are equipped.

►In addition, the automatic and manual guidance are supported.

►Multiple screen combinations such as single screen, picture in picture, two split screen, three split screen, and four split screen are supported.

►4-channel HD-SDI, 1-channel VGA, or 1-channel HDMI video input.

►The access of two 60 RTSP network streams up to 1080P is supported.

►The decoding of the highest 1080P60 file stream is supported.

►VGA and HDMI interfaces are supported.

►VGA loop out functionality is supported, thereby saving the cost of a VGA splitter; 1-channel standard definition CVBS output is supported.

►The communication interfaces of RS-232 and RS-485 are supported to facilitate the expansion of various peripheral devices such as the tracking machines, central control systems, keyboards, etc.

►A 5-channel RS-232 interface is supported, allowing more peripheral devices to be accessed.

►The input/output of I/O is supported to expand multiple intelligent applications.

►The recorded files can be uploaded to a network storage server to achieve the centralized storage of videos.

►U disk recording, U disk backup, and mobile hard disk backup are supported.

►Video editing function is supported.

►The automatic tracking function for far and near range switching is supported.

►The subtitle insertion function is supported.

►Transparent and adjustable logo positions are supported.

►The superposition of title subtitles, title images, and background images is supported.

►Switching over more than 20 special effects is supported.

►Free setting of channel names is supported; Real-time network publishing of RTMP and RTSP streams is supported.

►Built-in web services enable users to remotely view recorded videos, operate devices, and download recorded files through web pages.

►In addition to the guiding streaming, the users can also simultaneously record four 1080P high-definition video resources, which makes later editing more convenient. ►Recording streams, network streams, and interactive streams can be set separately.

►The function of one button opening is supported.

►The serial pass through function is supported.

►On the LCD screen on the front panel, the operating status of the device is visually displayed.

►This device can perfectly interface with the management platform for the media resources. Remote interactive teaching is supported. Users can attend classes simultaneously in multiple different classrooms.

►Moreover, various interactive methods are provided to meet different application scenarios.
