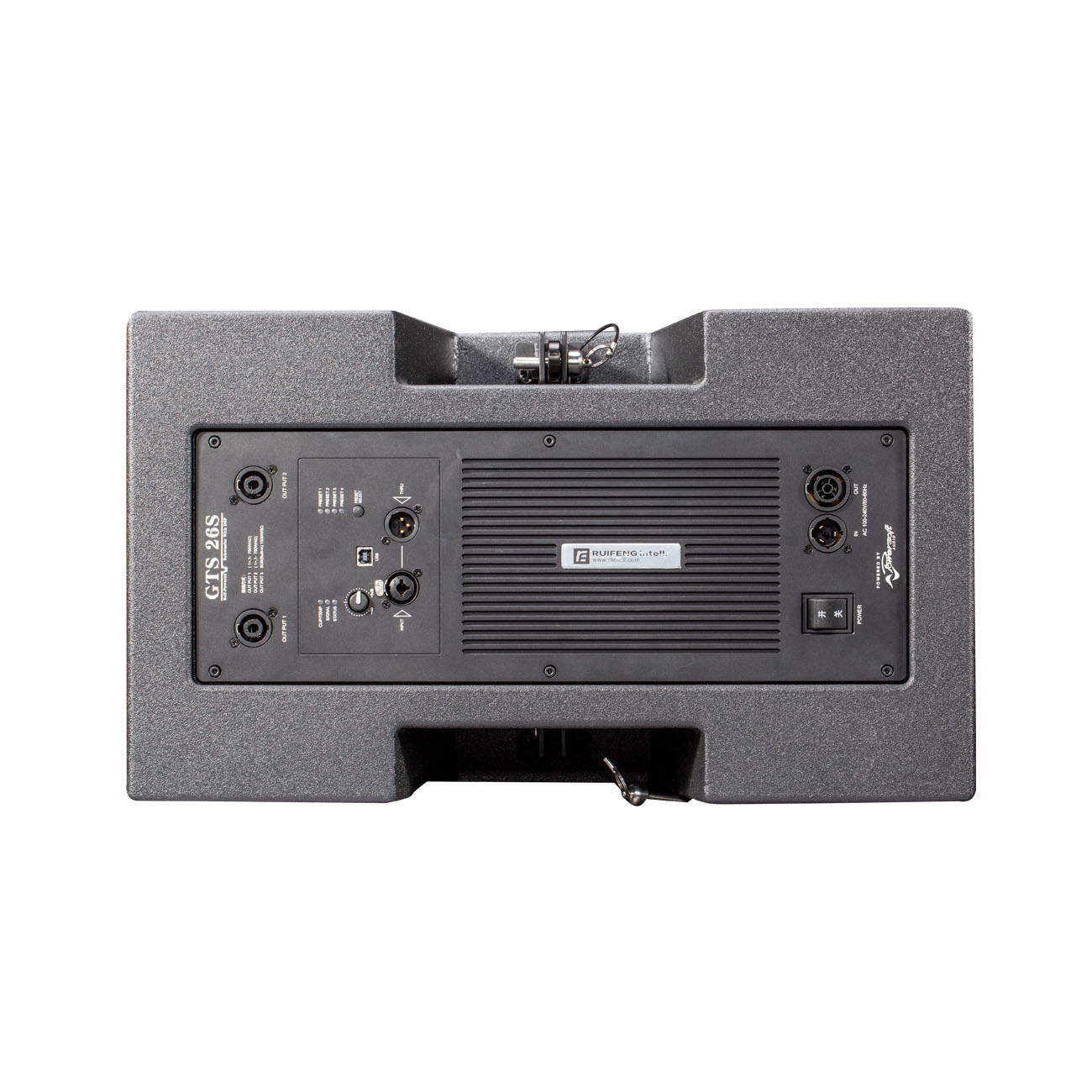

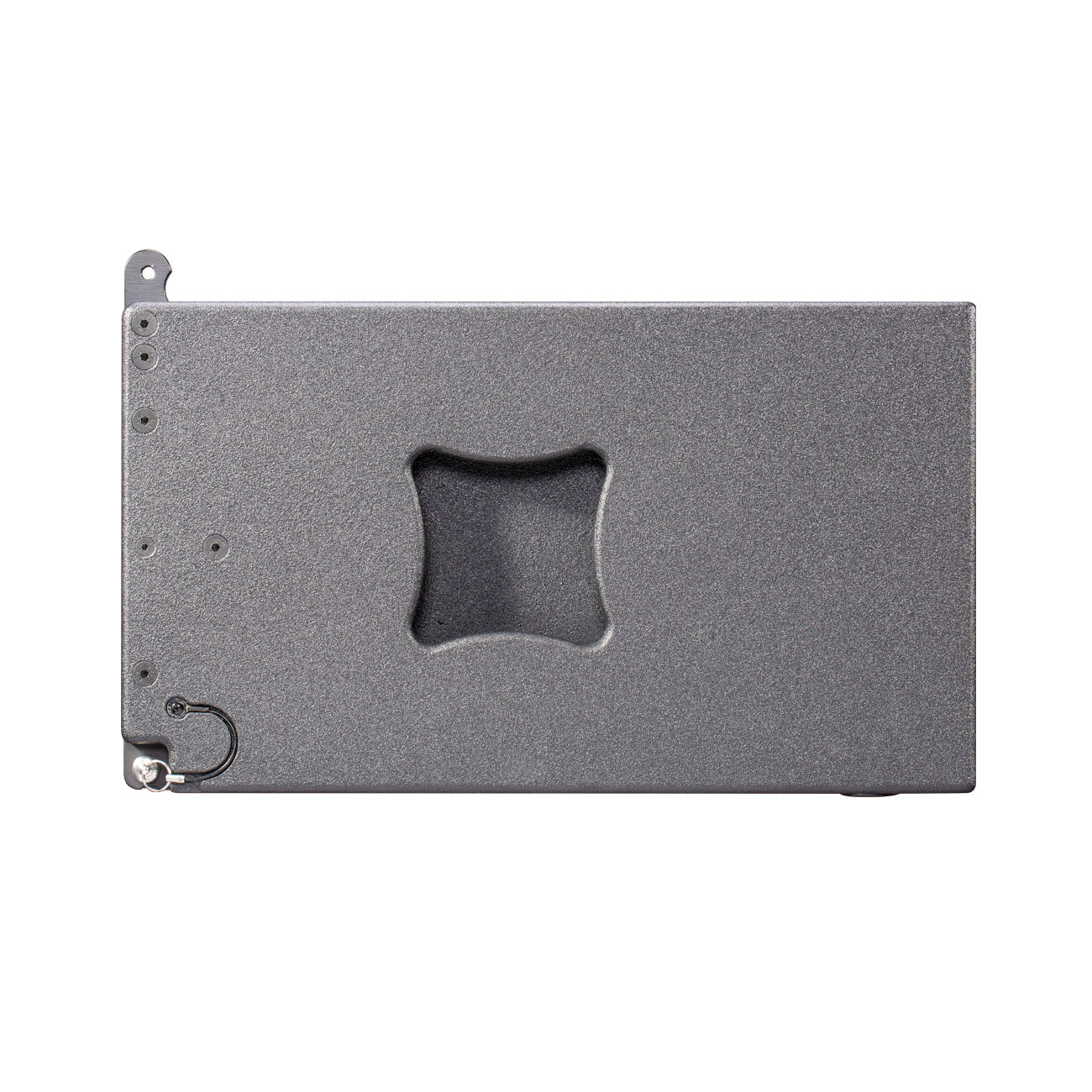

GTS26SA
Active Single 12 inch Subwoofer with DSP
Application: Main sound for Large conference hall, Small and medium sized multi-function hall,main sound of small and medium-sized touring performance
Specifications
- System type: Active Single 12 inch Subwoofer with DSP
- Sensitivity(1W/1m): 96dB
- Frequency response: 40Hz-300Hz(±3dB)/35Hz-350Hz(-10dB)
- Power rating(AES): 1000W
- SPL(continuous/peak): 125dB/131dB
- Nominal Impedance: 8Ω
- LF: 12"(100mm Voice coil)
- Connectors: 2×Neutrik 4 PIN socket (1+ 1-);1×Neutrik XLR IN；1×Neutrik XLR OUT；1×RJ45 internet; control interface；2×Neutrik Powercon IN/OUT
- 3 Channel Class D amplifier module: Power output 4Ω：750W×2
- with DSP(1in 3out): Power output 8Ω：600W×2；1500W×1
- Gain: 38dB
- SNR: 115dB(A)
- Working voltage range: AC100-240V,50/60Hz

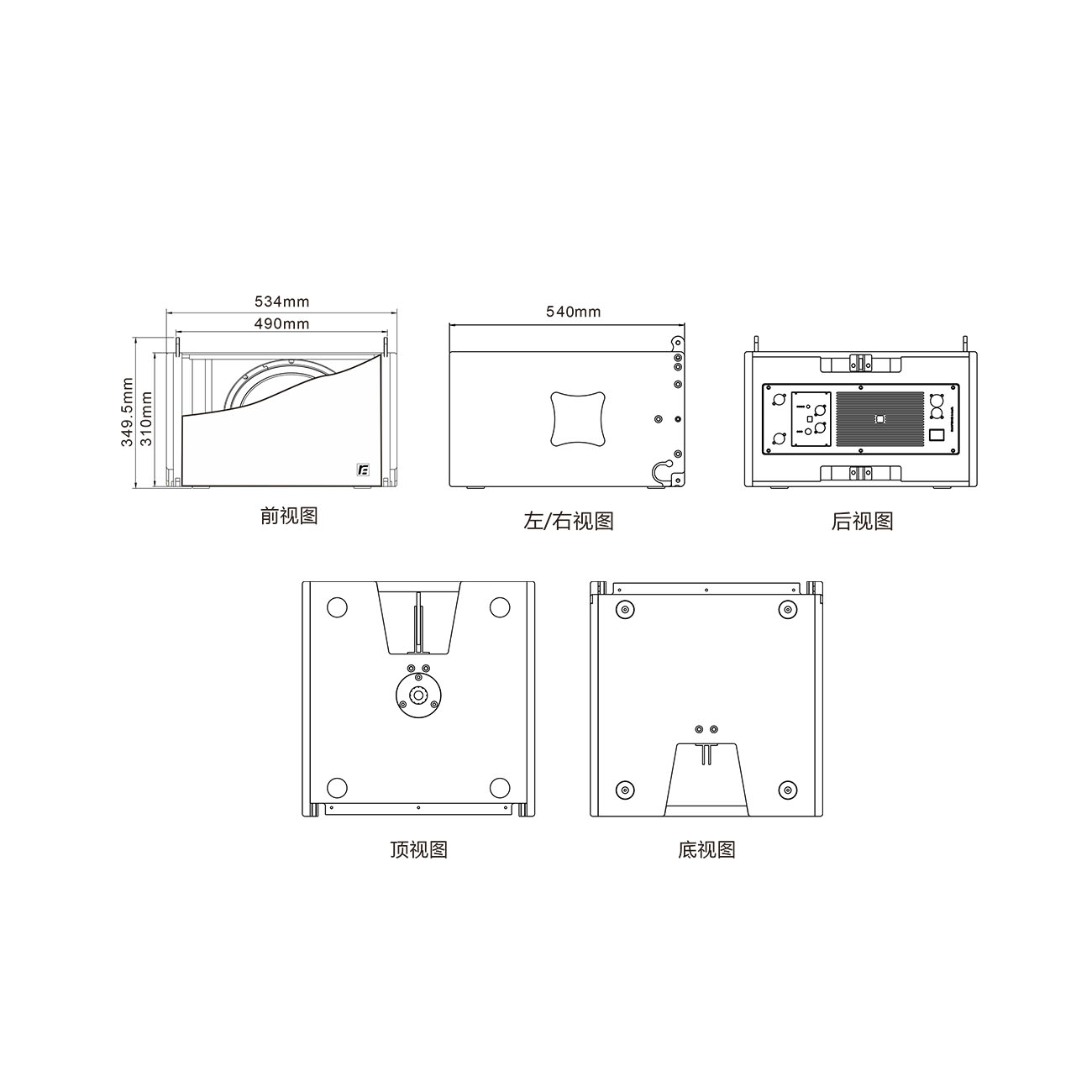

- Dimension(H×W×D): 349.5×534×540mm
- Weight: 28kg
Features
►GTS26SA is single 12-inch compact line array active subwoofer ,inside has 3-channel power amplifier module (1500W/8Ω-1; 600W/8Ω-2) with DSP(1-in 3 out) ; with high sound pressure level output and high-fidelity sound reinforcement performance,The system can be hanged or stacked on the ground. Speaker box equipped with two handles, and adopts polyurea coating process, which is more strong and wear-resistant
Data Download
