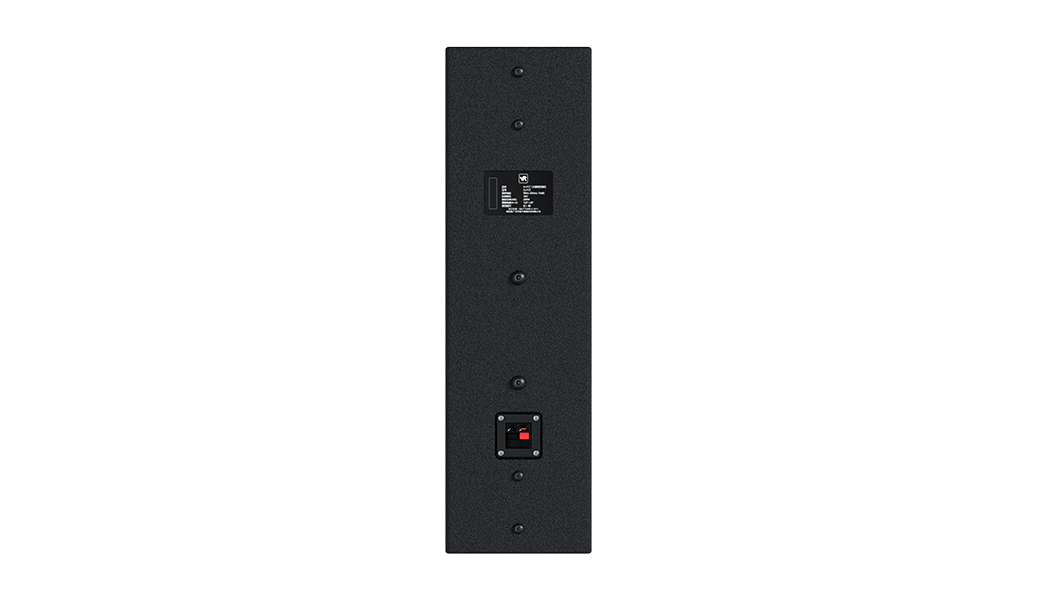

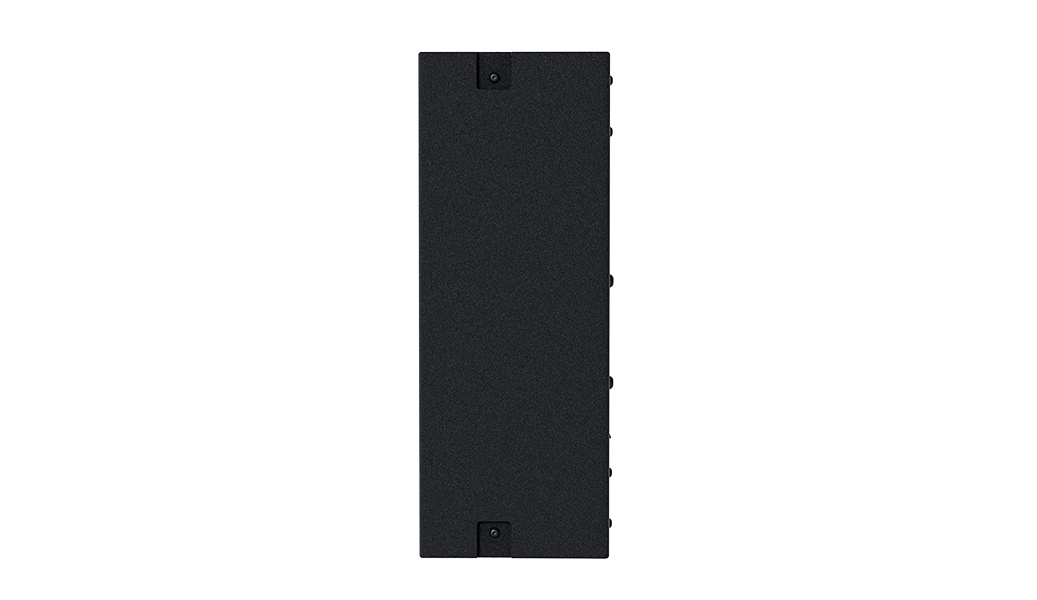

CL412I
4x4 inch binary linear sound column
Application scope: theaters, music halls, churches, banquet halls, conference halls
- System type: 4x4 inch binary linear sound column
- Warning: 95Hz~19KHz(±3dB)/90Hz~20kHz(-10dB)
- Sensitivity (1w 1m): 95dB
- Nominal impedance: 16 Ω
- Rated power (AES): 200W
- Maximum sound pressure level (continuous/peak): 116dB/126.2dB
- Coverage angle (HxV): 120 º x 20 º
- Total harmonic distortion: ≤ 0.467% (630Hz)
- Bass unit: 4x4 inch ferromagnetic bass
- High pitched unit: 12 x 1 inch silk membrane high pitched
- Connection piece: 1 x speaker wiring base, red positive/black negative
- Hanging hardware: M8 lifting point x 8, M5 lifting point x 4
- Size(H×W×D)：483×140×184mm
- Weight: 7.7kg
CL412I is a compact linear sound column that features 4 high-quality 4-inch bass and 12 high-quality 1-inch silk film tweeters, with a total of 16 speaker units fixed inside a very compact and compact box; And through strict acoustic structure optimization design of the shell, excess resonance can be cleverly eliminated, greatly reducing the noise brought by the box, achieving precise real-time beam coverage and excellent listening experience; It can be used in combination with CL-412CJ speakers to meet both far-field and near-field coverage needs. At the same time, the speaker and wall can maintain a balanced and beautiful appearance, perfectly integrating into various conference and business venues.
Equipped with dedicated simple wall mounting accessories and reserved hidden wall frame installation suspension points, making installation easier and more convenient; Very suitable for application scenarios that require small size, beautiful installation, and can provide high-definition devices.
