VT10
Dual 10" Two-Way Bi-Amp Line Array Speaker
Application:►Auditoriums, Theaters, Banquet halls, Conference halls and Multi-function occasions Stadiums ►Plazas, Small-medium mobile performances
- System type：Single 10” Two-way Line Array Speaker
- Sensitivity(1w/1m)：99.6dB
- Frequency response：85Hz~19kHz(±3dB)/80Hz~20KHz(-10dB)
- Power rating(AES)：300W
- HF：1×3寸铁磁高音单元(75mm)
- LF：1×10寸铁磁低音单元(65mm)
- Maximum SPL(continuous/peak)：123dB/133dB
- Dispersion(H×V)：100º×10º
- Nominal impedance：16Ω
- THD：≤3%(250Hz-6.3kHz)
- Connectors：2×NEUTRIK NL4MP四芯插座，1+ 1-
- Fittings：Hanging fittings×3

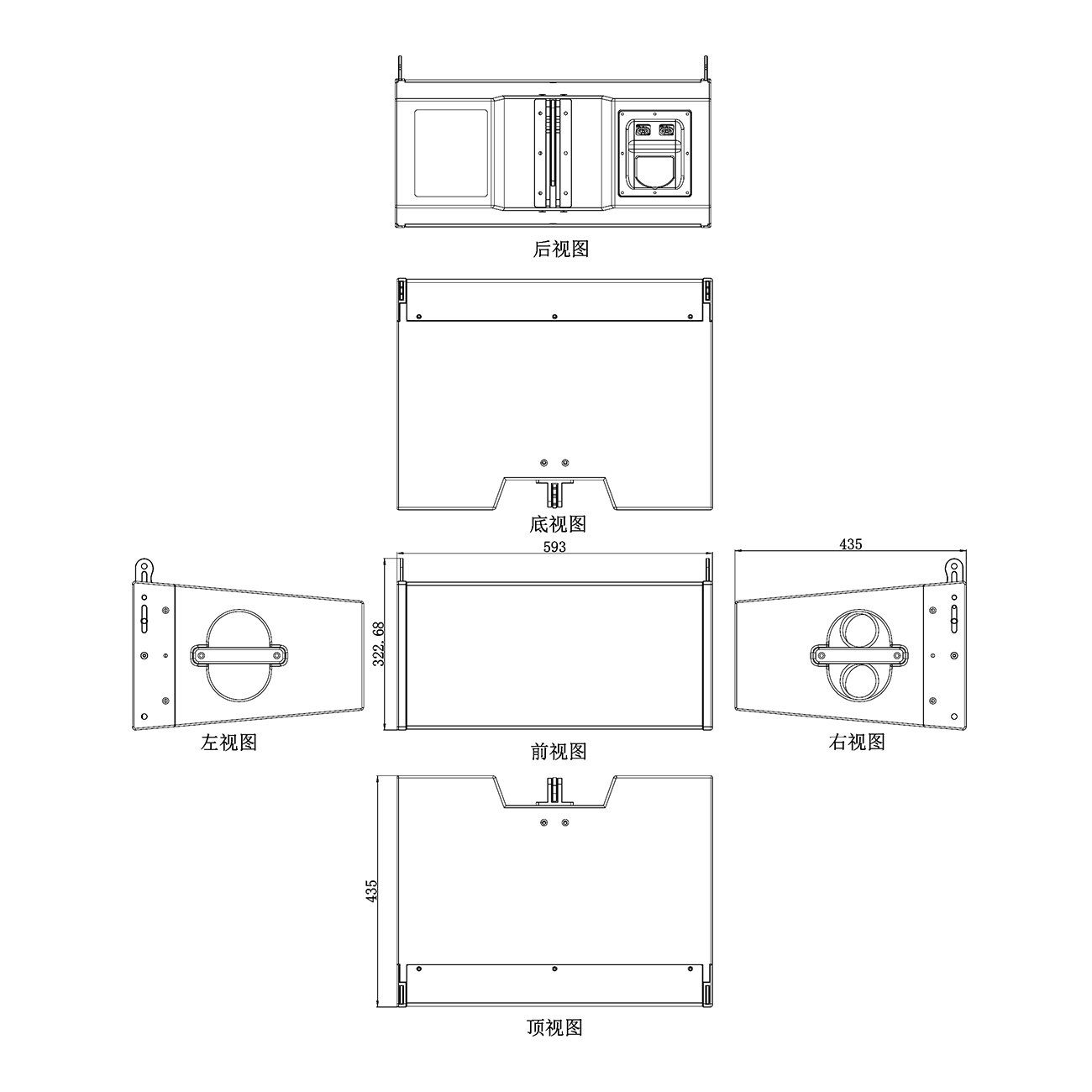

- Dimension(H×W×D)：323×593×435mm（不含插销）
- 重量：27kg
►VT10 is a compact and lightweight linear array loudspeaker, using a new high-quality 10’’ woofer, superior dynamic energy to minimize distortion when working with high power; using a 3’’ tweeter compression unit and configuring a high-precision linear acoustic wavefront tweeter horn with a horizontal 100º and vertical 10º pointing, to achieve precise and even acoustic coverage, ensuring the best consistency in the listening coverage area.
►The surface of the enclosure is made of sturdy and wear-resistant polyurea spraying process, and it is equipped with two mechanically optimized draw handles, and it adopts easy-to-install three-point balanced hanging connectors, which can be matched with VT18S subwoofer combinations for hanging or stacking.
