VT18S

Single 18" Subwoofer

Application:►Auditoriums, Theaters, Banquet halls, Conference halls and Multi-function occasions Stadiums ►Plazas, Small-medium mobile performances

Specifications
  • System type:Single 18" Subwoofer
  • Sensitivity(1w/1m):98.5dB
  • Frequency response:40Hz~900Hz(±3dB),35Hz~1000Hz(-10dB)
  • Power rating(AES):1000W
  • Maximum SPL:125.3dB/133.6dB
  • Nominal impedance:8Ω
  • THD:≤3%(33.5Hz-1kHz)
  • LF:1×18" Ferrite (100 voice coil)
  • Connectors:2×NEUTRIK NL4MP 4PIN Socket, 1+1-
  • Fittings:Hanging fittings×3

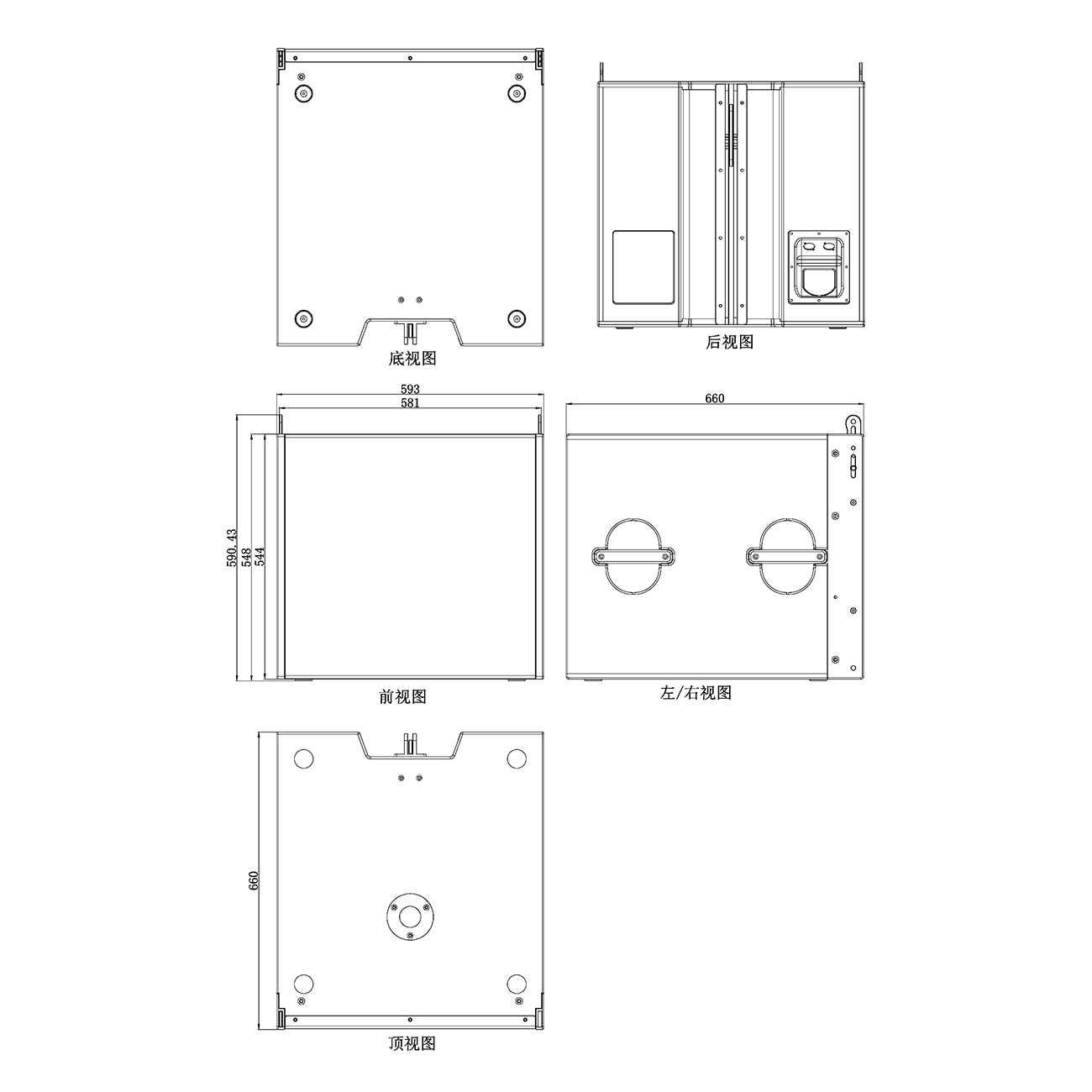

  • Dimension(H×W×D):590×593×660mm(不含插销)
  • Weight:516.5kg
Features

►VT18S is a compact design suspendable subwoofer, using a high-performance 18’’ woofer, superior dynamic energy to allow high-power operation with minimal distortion, with the VT10 linear array speakers hanging or ground stacked combination of use, to bring fast transient response and clean and powerful low-frequency dynamic energy.

►The surface of the enclosure is made of sturdy and wear-resistant polyurea spraying process, and is equipped with four mechanically optimized draw handles and three-point balanced easy-to-install hanging connectors, which make the handling and installation easier and more convenient.

Data Download
  • Ruifeng Intelligent Enterprise AlbumVT18S

    File size: 41.05 MBRelease time: 2023-06-12 Download Preview
