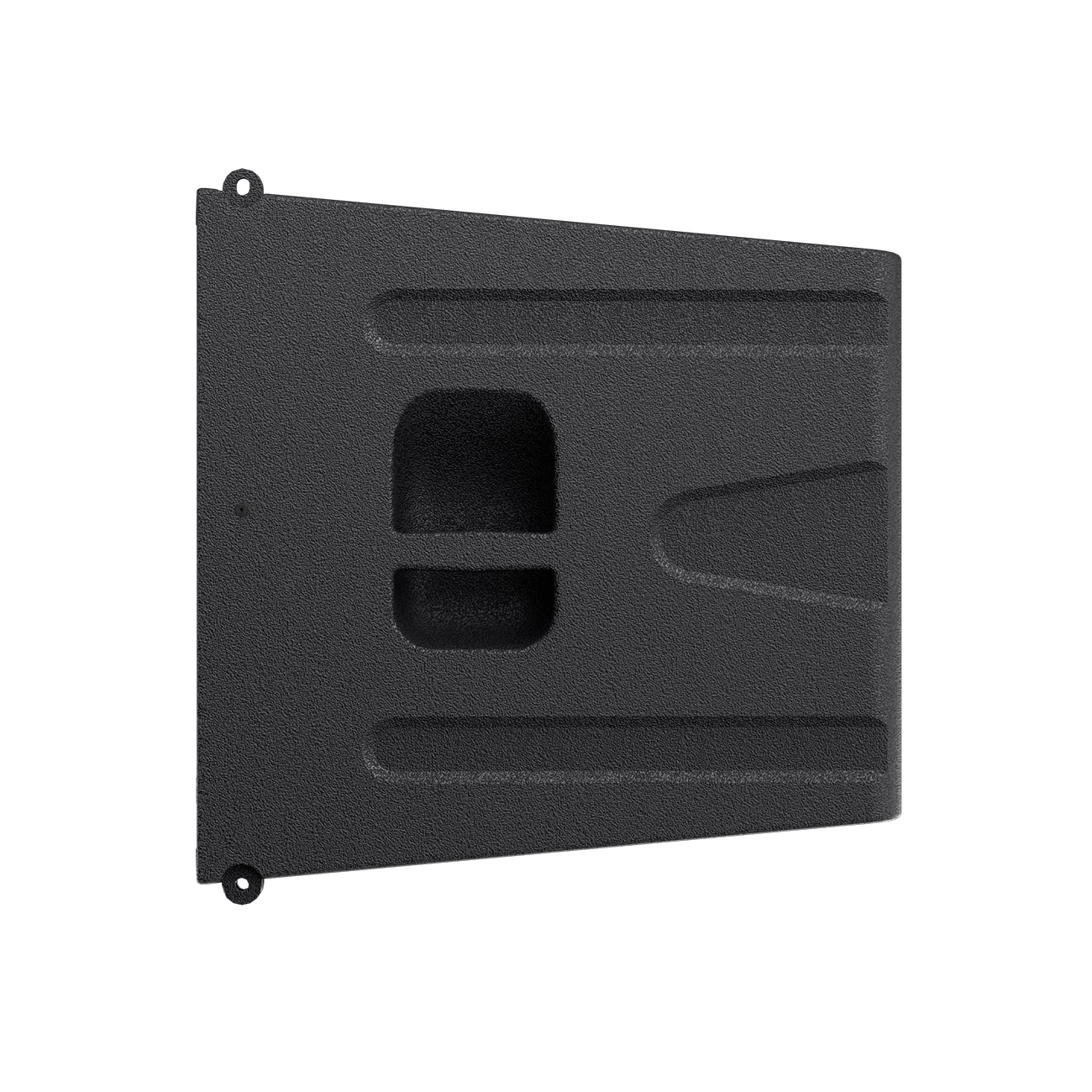

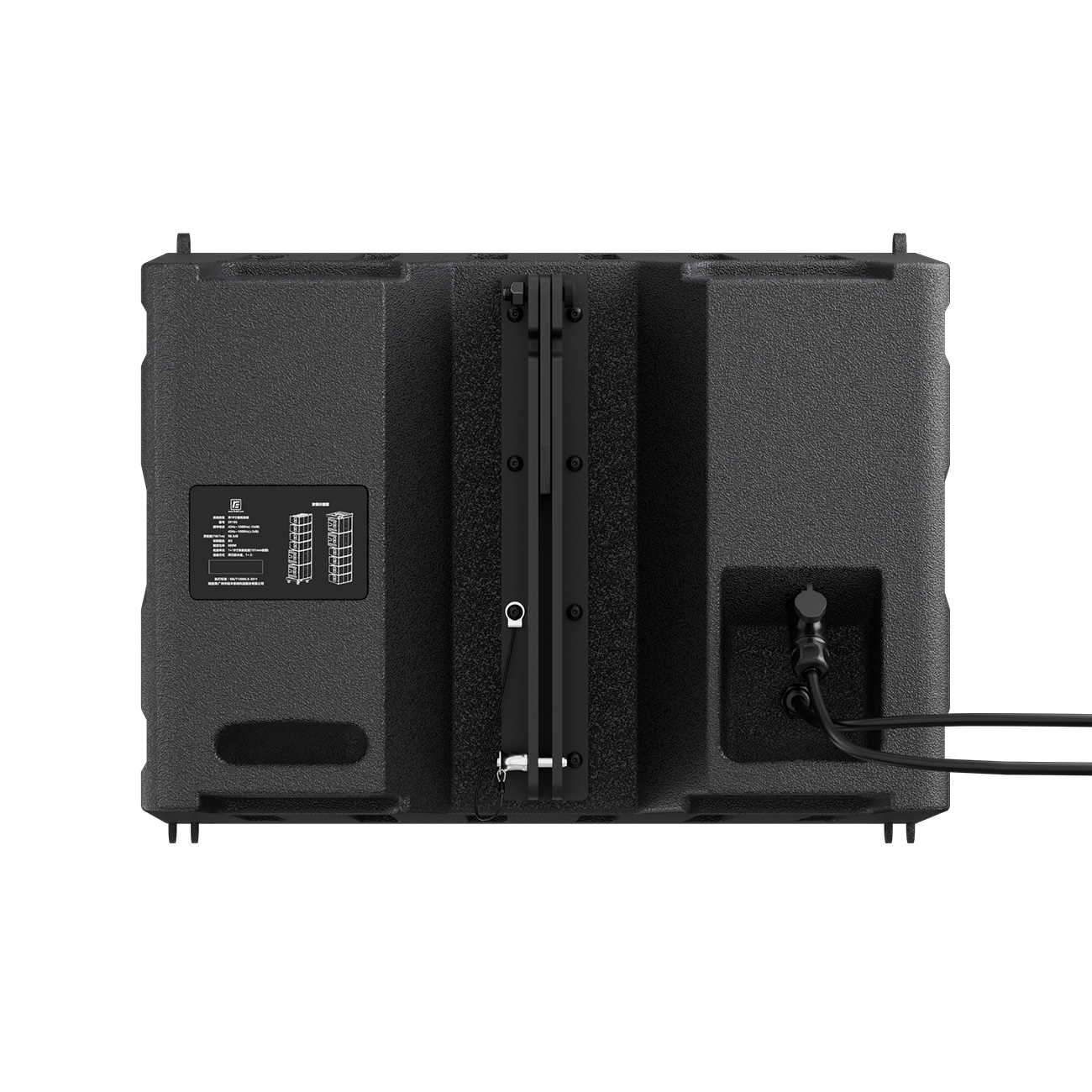

DF18S

Single 18inch Subwoofer(Waterproof)

Application:Outdoor square, cultural and tourism projects, mobile performances, sports venues, multi-functional hall sound reinforcement

Specifications
  • System type:单18寸超低频音箱
  • Sensitivity(1W/1m):98.3dB
  • Frequency response:45Hz-1kHz(±3dB),42Hz-1kHz(-10dB)
  • Power rating(AES):800W
  • Maximum SPL(continuous/peak):124.5dB/132.7dB
  • Nominal impedance:8Ω
  • THD:≤3%(42Hz-1kHz)
  • LF:1×18
  • Connectors:1×2 Pin Waterproof plug(cascade 1+2-) / a jumper (2 Pin waterproof socket , for cascade/amplifier)
  • Enclosure Material: Plastic
  • Fittings:Hanging fittings×3

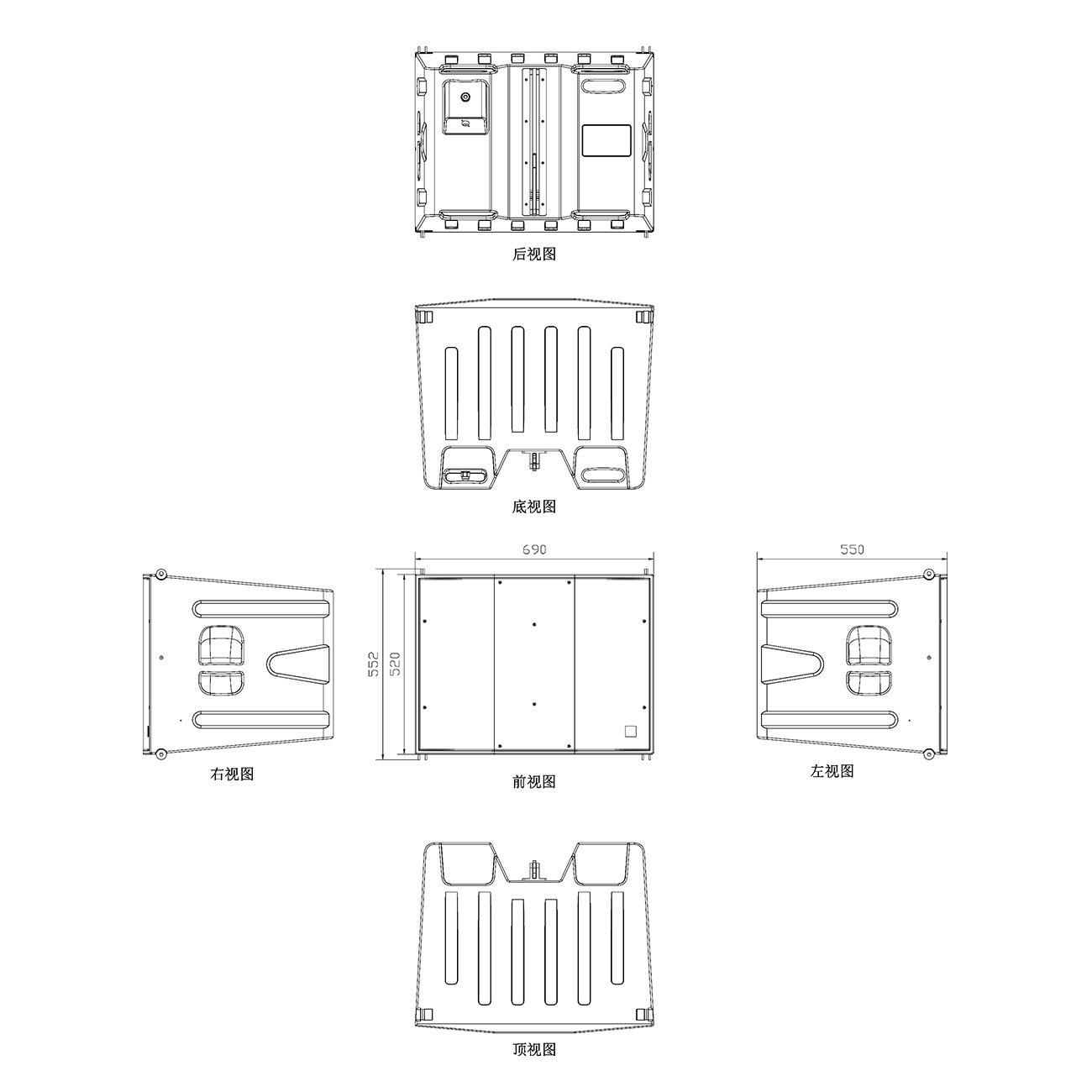

  • Dimension(H×W×D):552×690×550mm
  • Weight: 37 Kg
Features

►The DF18S is a new type of compact (waterproof) hanging subwoofer. It features a high-performance 18-inch speaker unit, providing high-efficiency and high-dynamic continuous output. It also has a durable, high-strength one-piece plastic shell, integrating design features suitable for outdoor fixed installation: minimalist aesthetics, dust-proof, waterproof, and moisture-proof. With dust-proof and waterproof characteristics, it can always withstand the test of all-weather applications and support fixed installation in extreme environments, maintaining stable and excellent performance even in harsh outdoor conditions.
►The cabinet adopts a high-precision three-point suspension system with a safety factor of 7:1. It can be used in combination with the DF210 full-range line array speaker for suspension or ground stacking, and can also be flexibly combined with other types of full-range speakers to expand the low-frequency dynamics. Four mechanical design handles are also designed on the cabinet, making it easier and more convenient for users to move or install.
►Designed specifically for sound amplification in outdoor cultural tourism projects, open-air squares, theme parks, sports venues, etc., it features a compact and lightweight design with excellent waterproof performance. It is an ideal solution for the application of outdoor fixed sound amplification systems.

Data Download
  • Ruifeng Intelligent Enterprise AlbumDF18S

    File size: 41.05 MBRelease time: 2023-06-12 Download Preview
  • DF18S Product CatalogDF18S

    File size: 0.99 MBRelease time: 2024-08-16 Download Preview
