Specifications

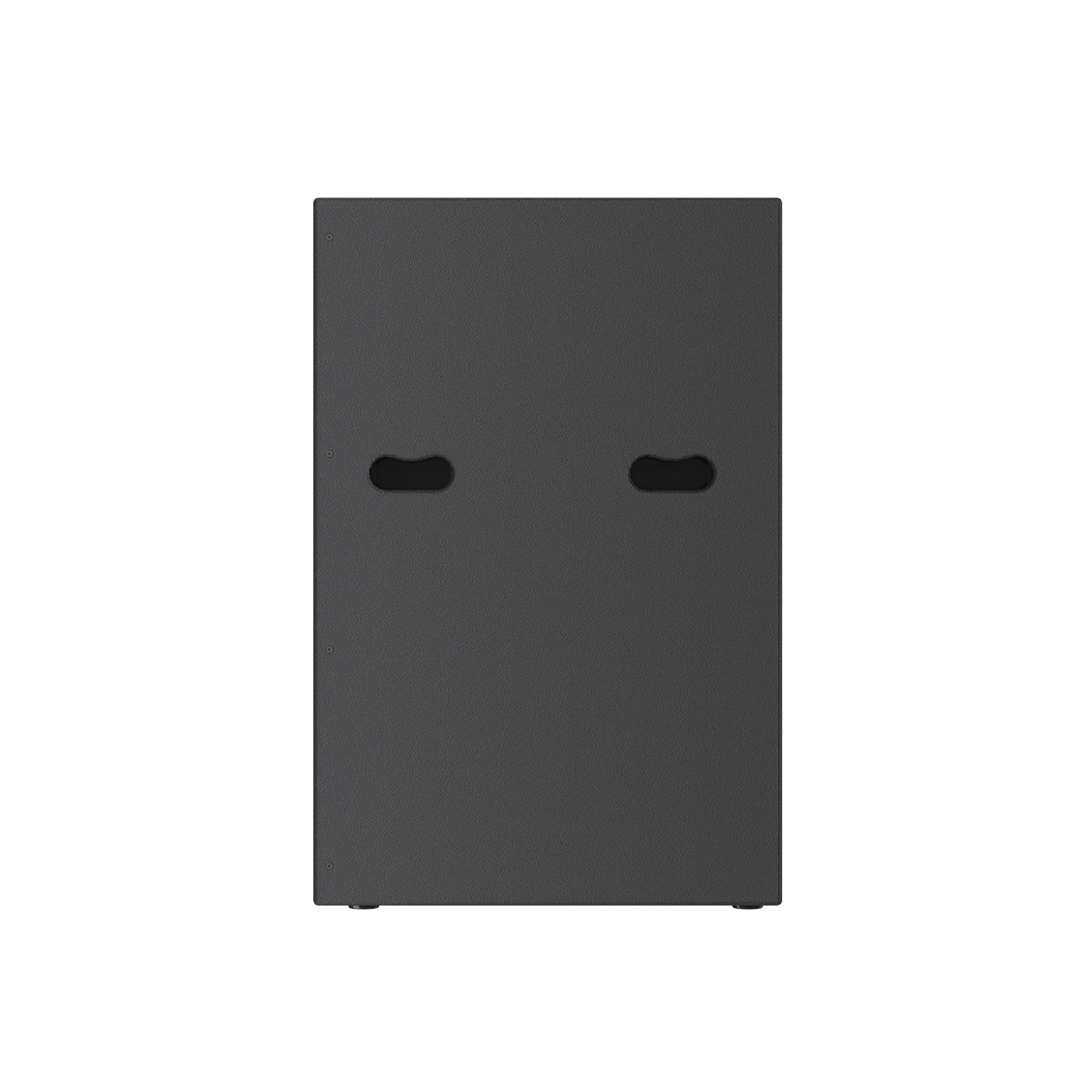

- System Type: Dual 12-inch Active Subwoofer
- Sensitivity (1W/1m): 98.5dB
- Frequency Response: 40Hz-1000Hz(±3dB)/31Hz~2000Hz(-10dB)
- Rated Power (AES): 800W
- Max SPL: 125dB / 134dB
- Nominal Impedance: 4Ω
- Total Harmonic Distortion: ≤3% (31Hz–2kHz)
- LF Driver: 2×12” Ferrite Magnet Woofer (75mm Voice Coil)
- Connectors:2×Neutrik XLR IN; 2×Neutrik XLR OUT;2×RJ45 Network Control Ports;1×Neutrik Powercon IN/OUT
- Sampling Rate: 48kHz / 64Bit
- Filter Types: Bell, High Shelf, Low Shelf, Notch, Allpass, Band Pass, High Pass, Low Pass
- Amplifier Module: 4-Channel Class D
- Output Power: 4×810W @4Ω
- Gain: 27.6dB
- Signal-to-Noise Ratio (S/N): 120dBV(A)
- Operating Voltage Range: AC85–265V, 50/60Hz
- Dimension(H×W×D):875x352x575mm
- Weight: 44kg
