CUBE10

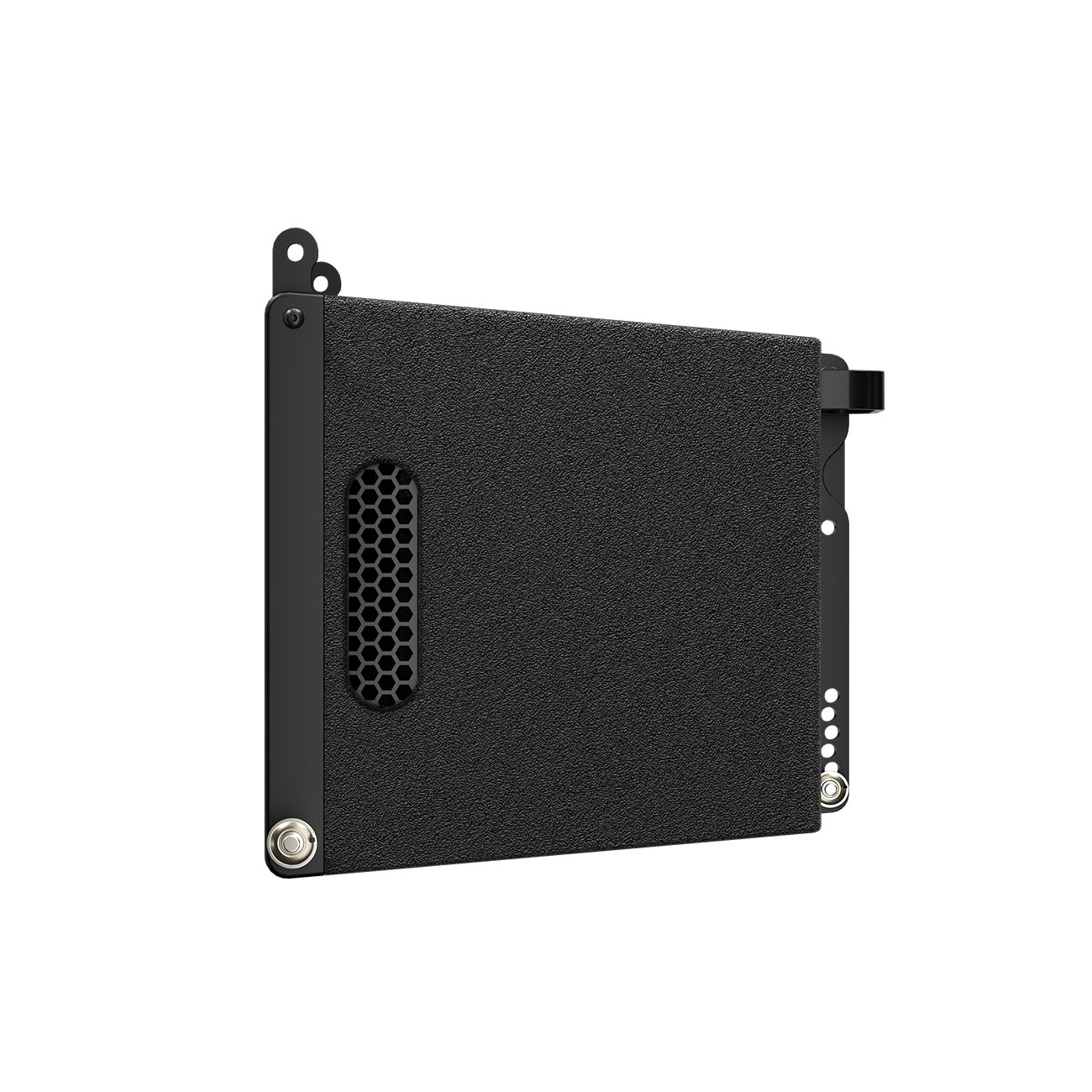

Single 10-inch Coaxial Line Array Speaker
Application:Banquet hall, Auditorium, Church, Concert hall, and small mobile performance
- System Type: Single 10-inch coaxial line array speaker
- Sensitivity (1W/1m): 100dB
- Frequency Response: 90Hz~19kHz (±3dB) / 85Hz~20kHz (-10dB)
- Rated Power (AES): 250W
- Maximum Sound Pressure Level (Continuous/Peak): 123.1dB/132.6dB
- Coverage Angle (HxV): 100º×10º
- Nominal Impedance: 8Ω
- Woofer: 1×10-inch ferrite unit(65mm voice coil)
- Tweeter: 1×1.46-inch ferrite unit (37mm voice coil)
- Connector Type: 2×4-pin speaker sockets (1+1-)
- Dimensions (H×W×D): 331×309×318mm
- Weight: 13kg
The CUBE10 is a highly compact line array speaker engineered for small-to-medium professional sound reinforcement systems. It minimizes transportation space requirements while reducing visual clutter. Featuring a single 1.46-inch tweeter and 10-inch woofer coaxial unit, it delivers a unified frequency response from a single point. This configuration creates a seamless, uniform linear wavefront with constant directivity (100º horizontal × 10º vertical), enabling precise sound imaging and high-definition audio reproduction.

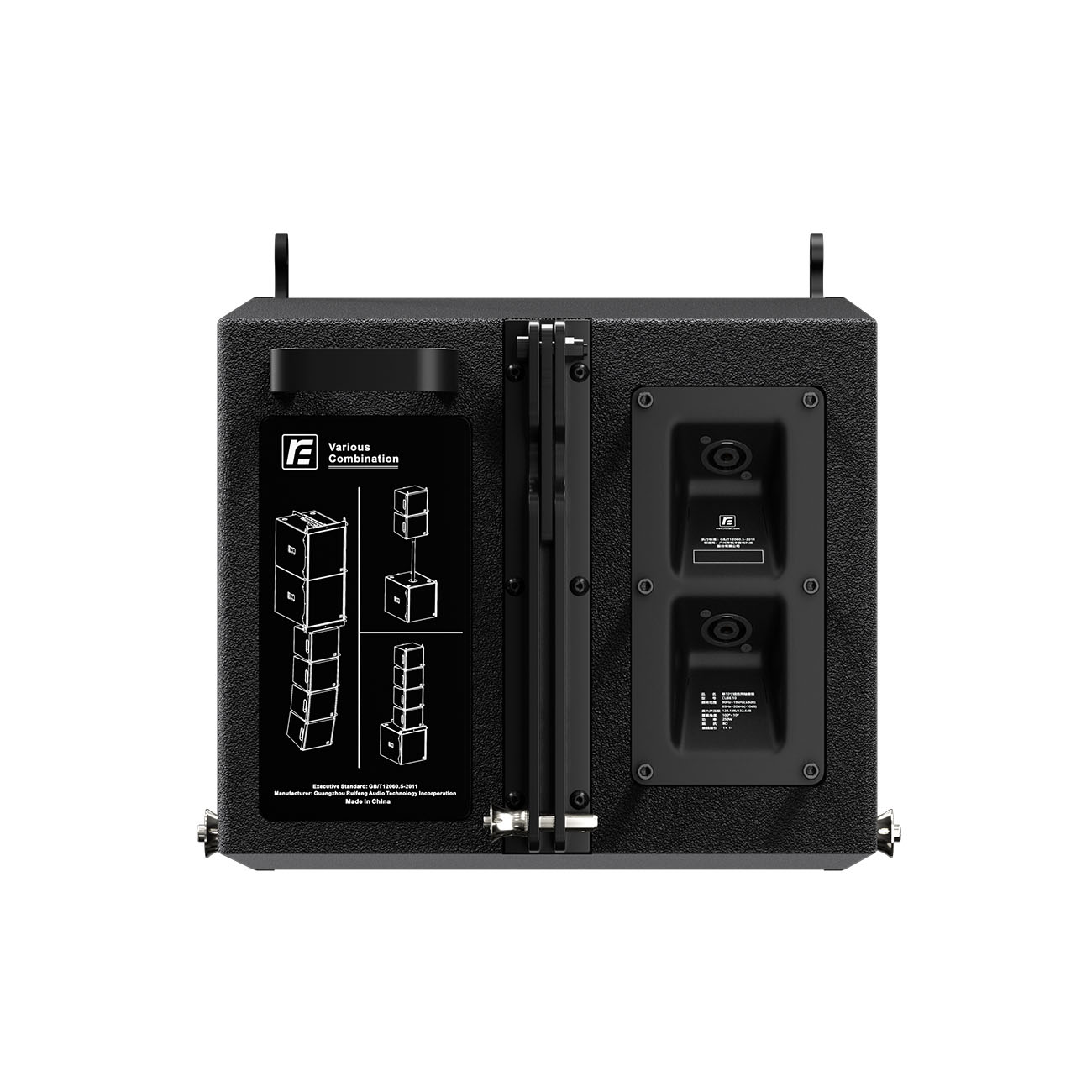

The CUBE10 features a three-point suspension connector, allowing it to be hung or stacked with CUBE-10S and CUBE-10SA. Its sides are equipped with two mechanically optimized handles, offering exceptional flexibility for easy transport and quick setup. This system is the optimal sound reinforcement solution for small to medium-sized fixed systems or mobile performances.
