CUBE10-SA
Single 15-inch Active Subwoofer
Application：Banquet hall, Auditorium,Church, Concert hall, and small mobile performance
- Sensitivity (1W/1m): 99.6dB
- Frequency Response: 45Hz~700Hz (±3dB) / 50Hz~800Hz (-10dB)
- Rated Power (AES): 450W
- Maximum Sound Pressure Level: 122.8dB/131.2dB
- Nominal Impedance: 8Ω
- Subwoofer Driver: 1×15-inch neodymium unit (75mm voice coil)
- Total Harmonic Distortion: ≤3% (45Hz-1kHz)

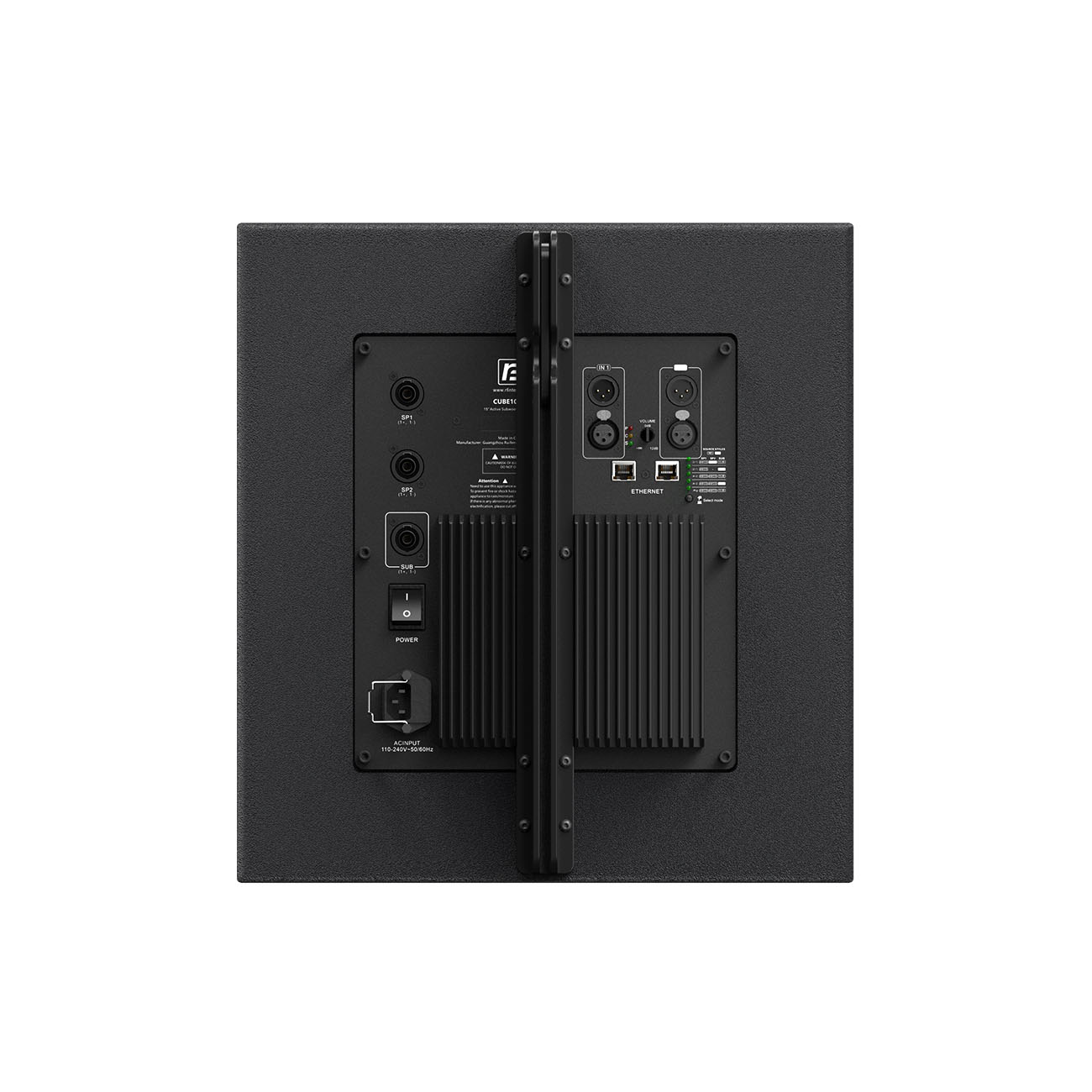

- 2 Neutrik XLR signal input interfaces
- 2 Neutrik XLR signal output interfaces
- 2 RJ45 network control interfaces
- 1 AC three-prong anti-drop power socket
- 3 Neutrik NL4MP output interfaces
- 1 volume knob, 1 mode switch button
- Sampling rate: 48kHz/64Bit
- Filter types: Bell, High Shelf, Low Shelf;Notch, Allpass, Band Pass, High Pass, Low Pass
- Amplifier module: 4-channel Class D
- Output power: 4×810W@4Ω
- Gain: 27.6dB
- Signal-to-noise ratio (S/N): 120dBV (A)
- Operating voltage range: AC 85-265V,50/60Hz
- Mounting hardware: 3-point suspension with a 35mm base hole at the top (1 piece)
- Dimensions (H×W×D): 483×425×558mm
The CUBE10-SA is a highly compact line array active subwoofer, specifically designed for small to medium-sized professional sound reinforcement systems. It occupies minimal transport space while minimizing visual clutter. Featuring a single 15-inch driver unit and an integrated high-efficiency Class D switching power amplifier module, its powerful DSP processing module delivers high-efficiency, stable, and reliable operation with dynamic, clean power output.
The CUBE10-SA features a three-point suspension connector, allowing it to be hung or stacked with CUBE10-S/CUBE10. Its sides are equipped with two mechanically optimized handles for effortless handling and quick assembly. A top-mounted support hole accommodates various mounting configurations, delivering the ultimate sound reinforcement solution for both fixed and mobile performances.
