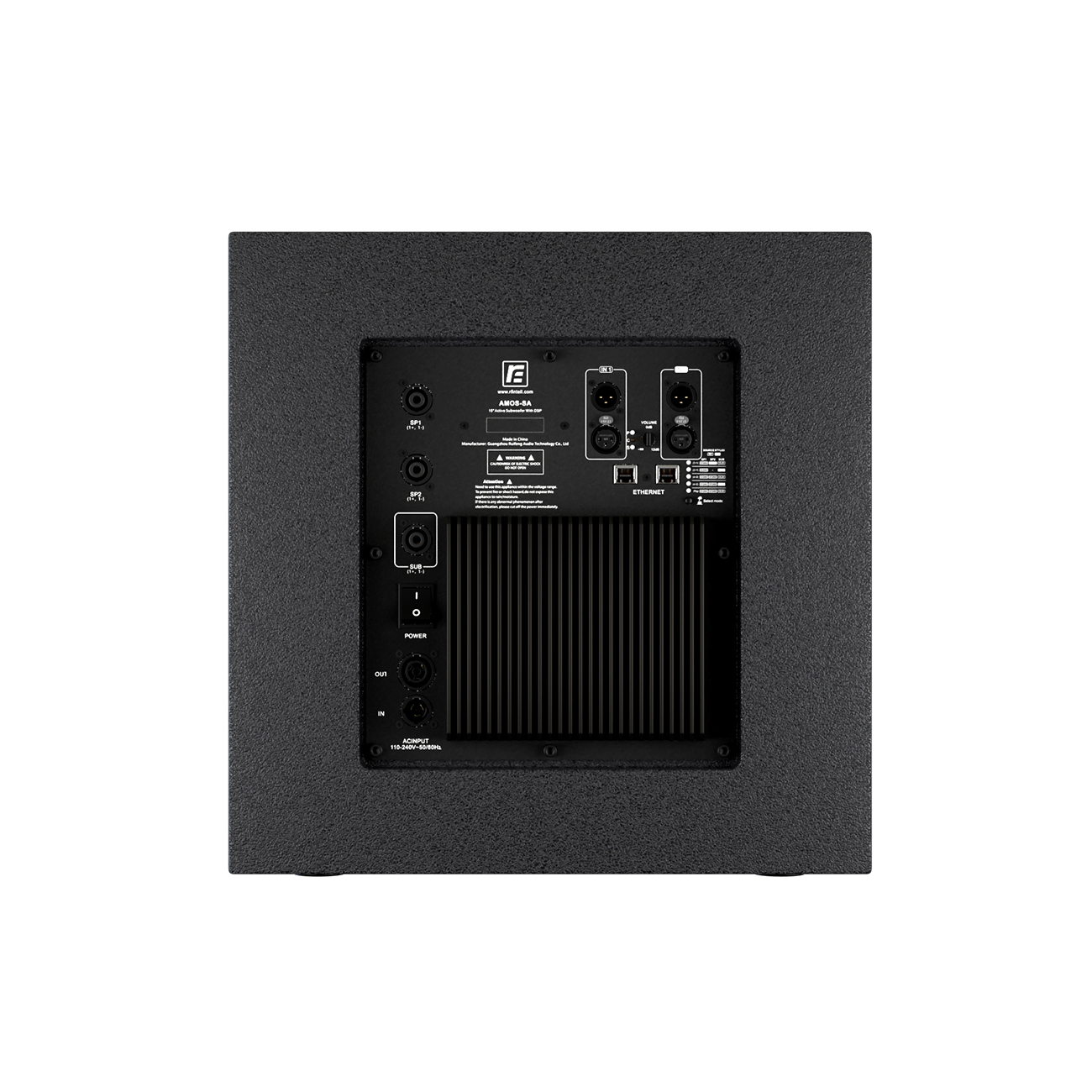

AMOS-SA
Single 15
Application：Conference hall,Banquet hall,Concert,square, Bistro, Church, small mobile performance
- System type：Single 15
- Frequency response：50Hz-800Hz(±3dB)/45Hz-1000Hz(-10dB)
- Sensitivity(1W/1m) ：99.6dB
- Nominal impedance：8Ω
- Power rating(AES) ：450W
- LF：1×15’’ Neodymium (75mm voice coil)
- SPL(Continuous/Peak）：122.8dB/131.2dB
- THD：≤3%(250Hz-1kHz)
- Connectors：2×Neutrik XLR Single input ports 2×Neutrik XLR Single output ports 2×RJ45 Network control ports 1×Neutrik Powercon input ports 1×Neutrik Po
- Sample rating：48kHz/64Bit
- Filter Type：Bell,HighShelf,LowShelf,Notch,Allpass, Band Pass,High Pass,Low Pass
- Amplifier module：4 channel Class D
- Power rating：4×810W@4Ω
- Gain：27.6dB
- S/NR：120dBV(A)
- Working power：AC85-265V, 50/60Hz
- Dimension(H×W×D)：461×455×515mm
- Weight：28kg
►AMOS-SA is a single 15" compact line array low-frequency active speaker, with high SPL output and high-fidelity sound reinforcement performance,
embedded with high-efficiency class D module and DSP processing module, can provide a large dynamic clean output drive power in high efficiency and
stable and reliable operation; configured with two TCP / IP network control interface,can realize remote connectivity and real-time remote monitoring of
equipment operation status.
►The enclosure adopts polyurea spraying process, more sturdy and wear-resistant, the cabinet on both sides of the configuration of simple installation
hanging connectors and two mechanically optimized drawers, the top of the speaker is designed with a top bracket support holes, can be used with the
AMOS speaker combination of hanging, ground support and ground stack needs for small and medium-sized fixed or mobile performances to provide the
best sound reinforcement solutions.
