RINO-A

Dual 10-inch active three-way column speaker with DSP

Application :Conference rooms, Multi-function halls, Banquet halls, Churches, Pubs

Specifications
  • System type: Dual 10-inch active three-way column speaker with DSP
  • Frequency response: 50Hz - 18KHz (±3dB) / 45Hz - 19kHz (-10dB)
  • Sensitivity (1W/1m): HI: 108.3dB, MID: 100.4dB, LOW: 91.5dB
  • Nominal impedance: HI: 8Ω, MID: 8Ω, LOW: 4Ω
  • Rated power (AES): HI: 60W, MID: 600W, LOW: 400W
  • Woofer: 2×10“ferrite unit
  • Midrange: 4×5“neodymium unit (38mm voice coil)
  • Tweeter: 1×1.75“ferrite unit (44mm voice coil)
  • Dispersion (V×H): 80°×60° (+20, -40)
  • Maximum sound pressure level (continuous/peak): HF: 122.4dB/131.6dB, MF: 124.2dB/132.1dB, LF: 116.2dB/123.3dB

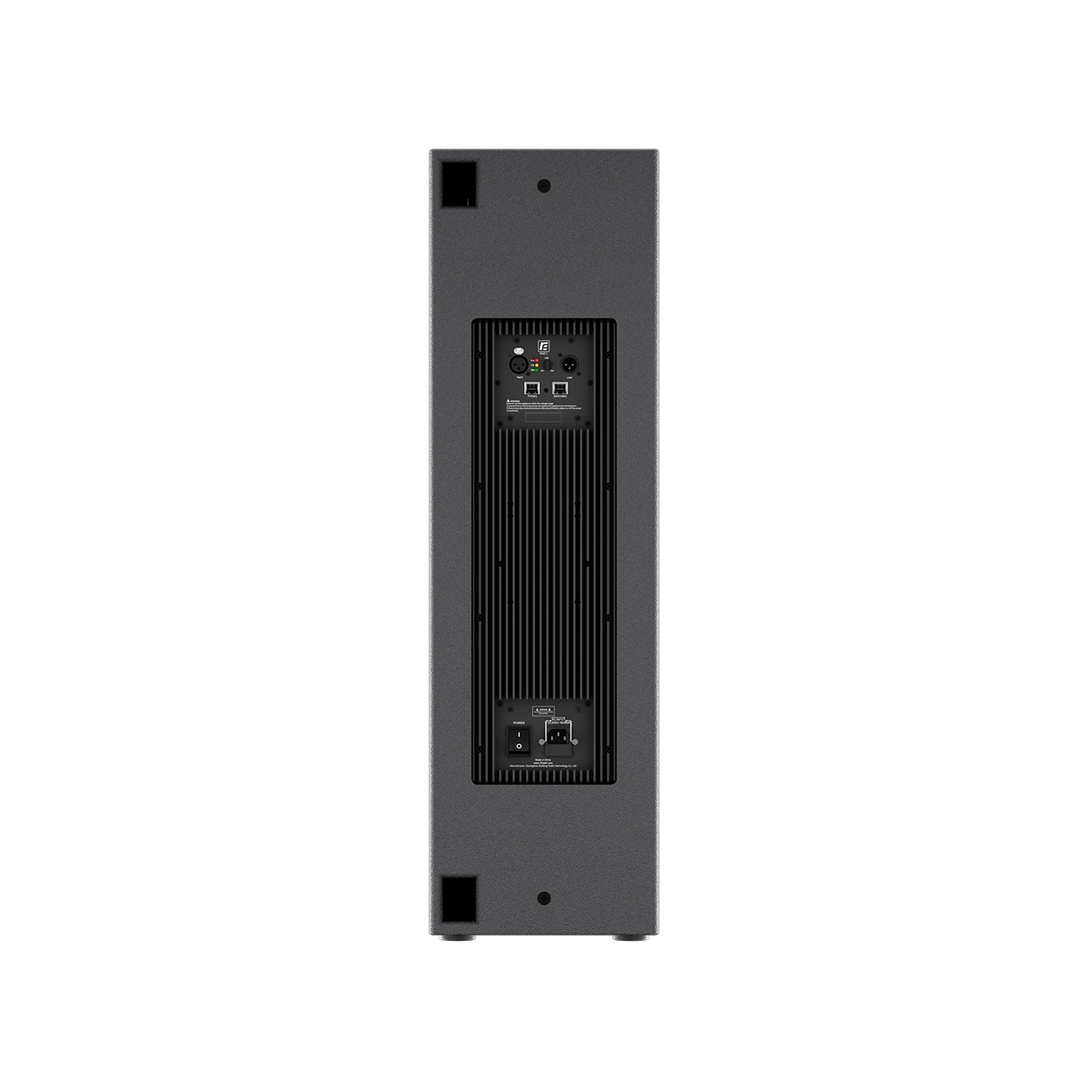

  • Connectors: 1×Neutrik XLR IN 1×Neutrik XLR OUT 2×RJ45 network control interface 2×Neutrik Powercon IN/OUT
  • Sampling rate: 48kHz
  • Filter types: Bell, High Shelf, Low Shelf, Notch, Allpass, Band Pass, High Pass, Low Pass
  • Amplifier module: Four-channel Class D
  • Output power: 4×810W@4Ω
  • Gain: 27.6dB
  • Signal-to-noise ratio S/N: 120dBV(A)
  • Operating voltage range: AC85-265V, 50/60Hz
  • Dimensions (W×D×H): 248×370×855 mm
  • Weight: 35kg
Features

►RINO series for the newly developed compact asymmetric gradient directional column, with a unique optimized design of asymmetric gradient directional horn, vertical coverage angle of asymmetric 60 ° (+20 °, -40 °), from top to bottom uniformly widen the coverage to effectively ensure that the sound pressure uniformity of the far-field and near-field listening area and the consistency of the sound. It can effectively reduce the ceiling to bring the acoustic reflection in the hanging or wall-mounted installation; Configured with a double 10" woofers, four 5" midrange drivers and a 1.75"tweeter. It can through the enclosure volume space structure and speaker unit characteristics of the precise scientific optimization of the design, to achieve the smallest cabinet resonance and the best frequency response, and to provide fine and excellent high-frequency sound quality and clean shock of the low-frequency dynamic energy.
►The enclosure adopts birch composite panel and polyurea spraying process paint, with anti-collision and wear-resistant protection characteristics, active and passive versions for chosen. The cabinet is designed to install the hidden hanging points and equipped with a support for the bottom bracket, can be hung and support the use of a variety of users to meet the different needs of users to use the habit of different occasions of placing the sound amplification.function hall,meeting room and small touring activity.
