CUBE1
Single 4-inch Coaxial Line Array Speaker
Application:Conference hall， Small auditorium,Small concert hall
Specifications
- System Type: Single 4-inch coaxial line array speaker
- Sensitivity(1w/1m)：92dB
- Frequency Response: 110Hz~20kHz (±3dB) / 106Hz~20kHz (-10dB)
- Rated Power (AES): 50W
- Maximum Sound Pressure Level: 109.8dB/121.3dB
- Coverage Angle (HxV): 100º×10º
- Nominal Impedance: 16Ω
- Subwoofer: 1×4-inch ferrite subwoofer
- Tweeter: 3×1-inch silk diaphragm tweeter

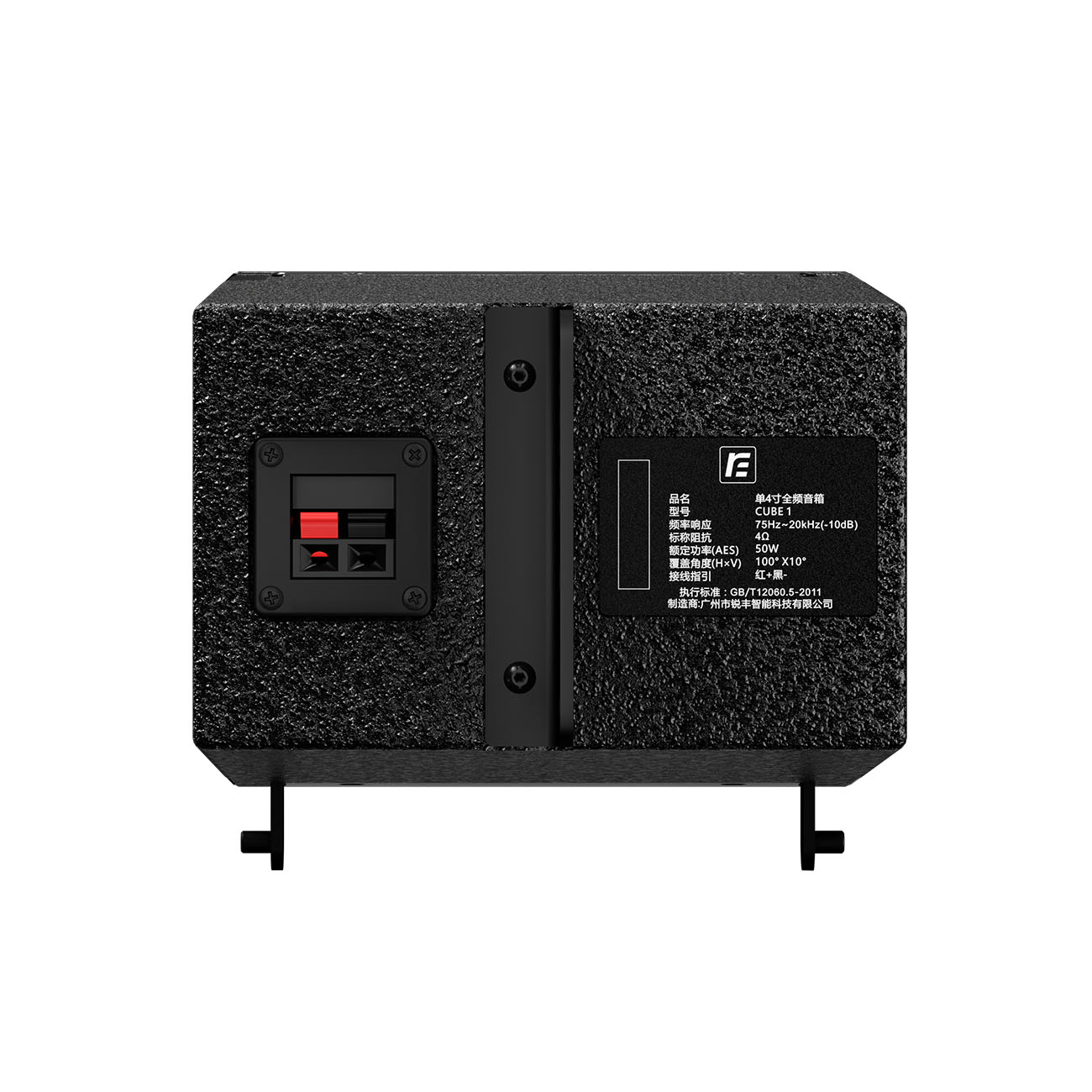

- Connector Type: 1×speaker jack (red+ black-)
- Dimension (H×W×D): 157.2×175×221.5mm
- Weight: 2.6kg
Features
- The CUBE1 is an ultra-compact line array speaker engineered for small-to-medium professional sound reinforcement systems. It optimizes space efficiency and minimizes visual clutter. Featuring three 1-inch tweeters and one 4-inch woofer in coaxial alignment, it delivers a unified frequency response from a single point. This configuration creates a seamless, uniform linear wavefront with constant directivity (100º horizontal × 10º vertical), enabling precise sound imaging and high-definition audio reproduction.
- CUBE1 delivers exceptional flexibility, making transportation and rapid setup effortless. It provides the optimal sound reinforcement solution for small and medium-sized fixed installation systems.
