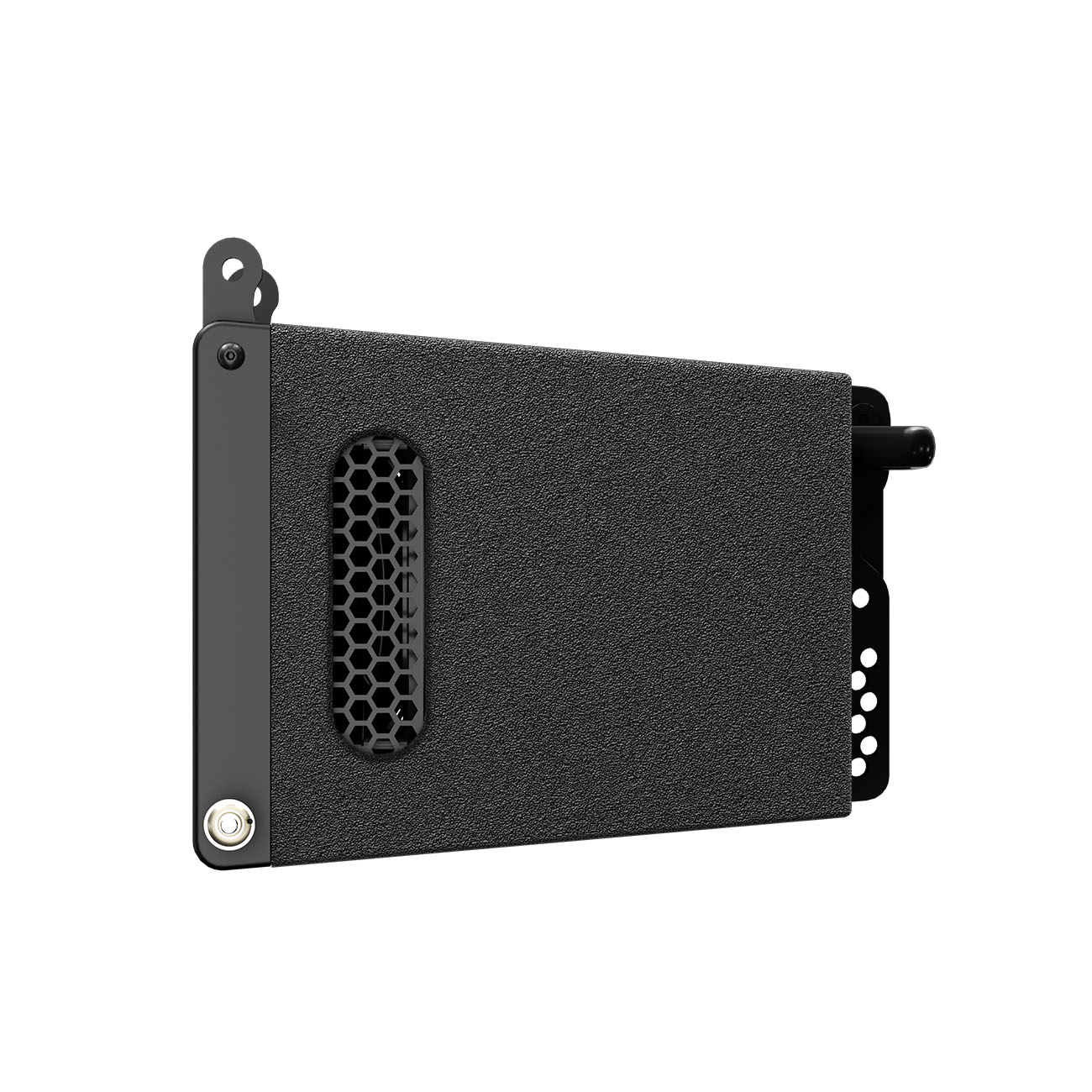

CUBE6

Single 6-inch Coaxial Line Array Speaker

Application:Conference hall, Banquet hall,Auditorium, Church, Concert hall, and small mobile performance

Specifications
  • System Type: Single 6-inch coaxial line array speaker
  • Sensitivity (1W/1m): 95.4dB
  • Frequency Response: 100Hz~20kHz (±3dB) / 95Hz~20kHz (-10dB)
  • Rated Power (AES): 150W
  • Maximum Sound Pressure Level (Continuous/Peak): 115.3dB/126.5dB
  • Coverage Angle (HxV): 100º×10º
  • Nominal Impedance: 8Ω
  • Woofer: 1×6-inch neodymium unit(75mm voice coil)
  • Tweeter: 1×1-inch neodymium unit (25mm voice coil)
  • Connector: 2×4-pin speaker sockets (1+1-)
  • Dimensions (H×W×D): 245×226×290mm
  • Weight: 5.6kg
Features

The CUBE6 is an ultra-compact line array speaker engineered for small-to-medium professional sound reinforcement systems. It optimizes space efficiency and minimizes visual clutter. Featuring a single 1-inch neodymium magnet tweeter paired with a 6-inch neodymium magnet subwoofer in a coaxial configuration, it delivers a unified frequency response from a single point. This design creates a seamless, uniform linear wavefront with constant directivity (100º horizontal × 10º vertical), enabling precise sound imaging and high-definition audio reproduction.

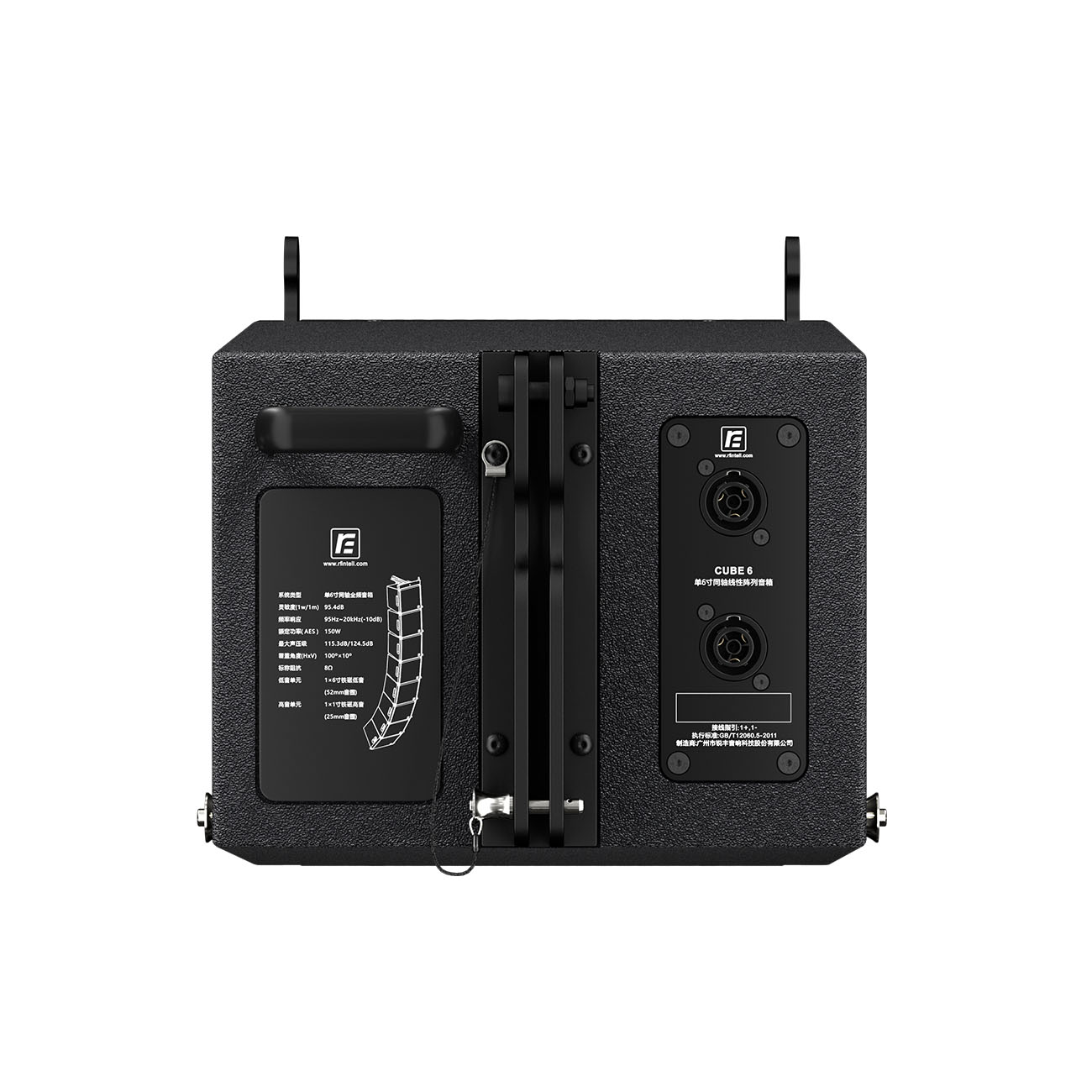

The CUBE6 utilizes a three-point suspension connector, enabling independent hanging or stacking . Its rear panel features a mechanically optimized handle, offering exceptional flexibility for effortless transportation and rapid setup. This design delivers the optimal sound reinforcement solution for both small-to-medium fixed systems and mobile performances.
