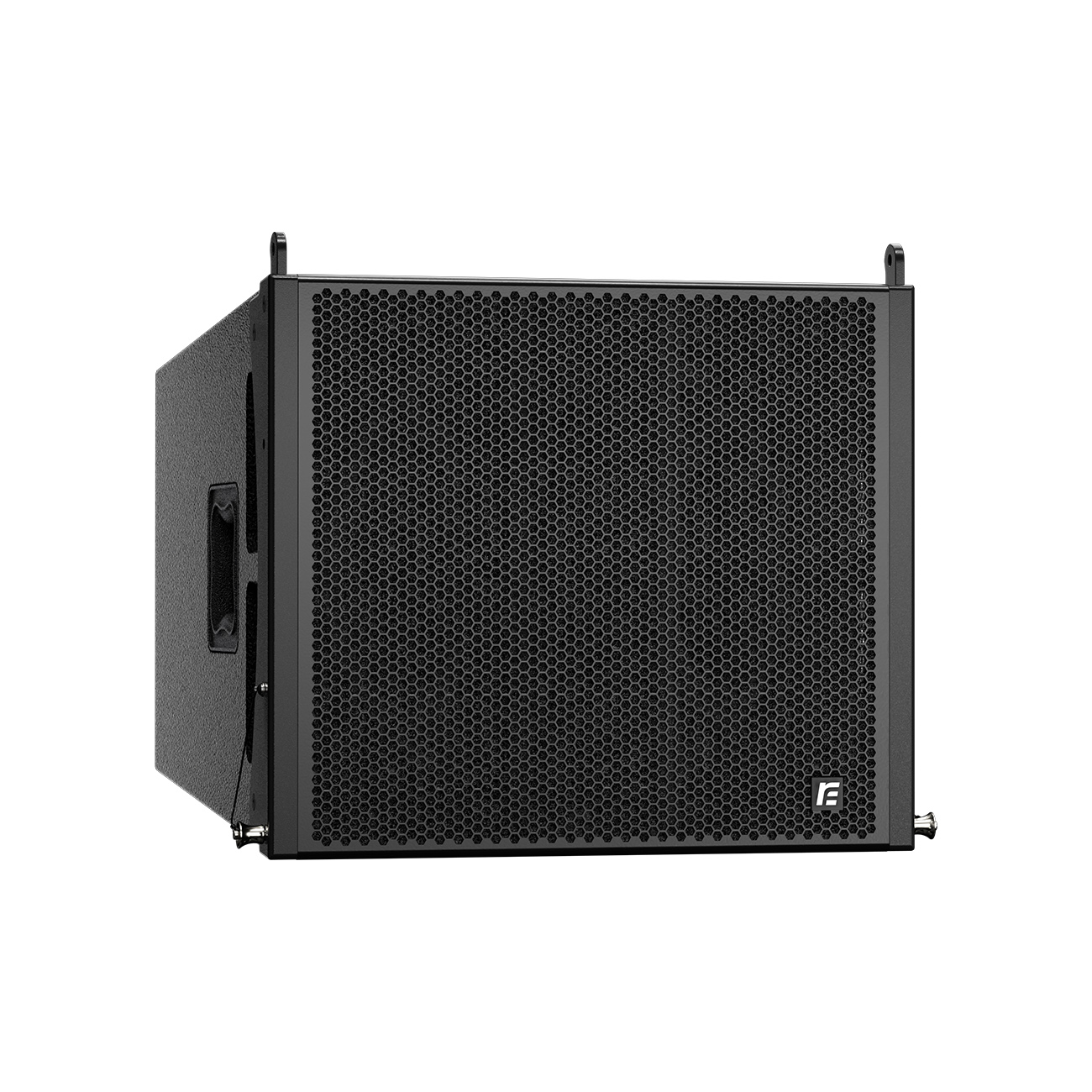

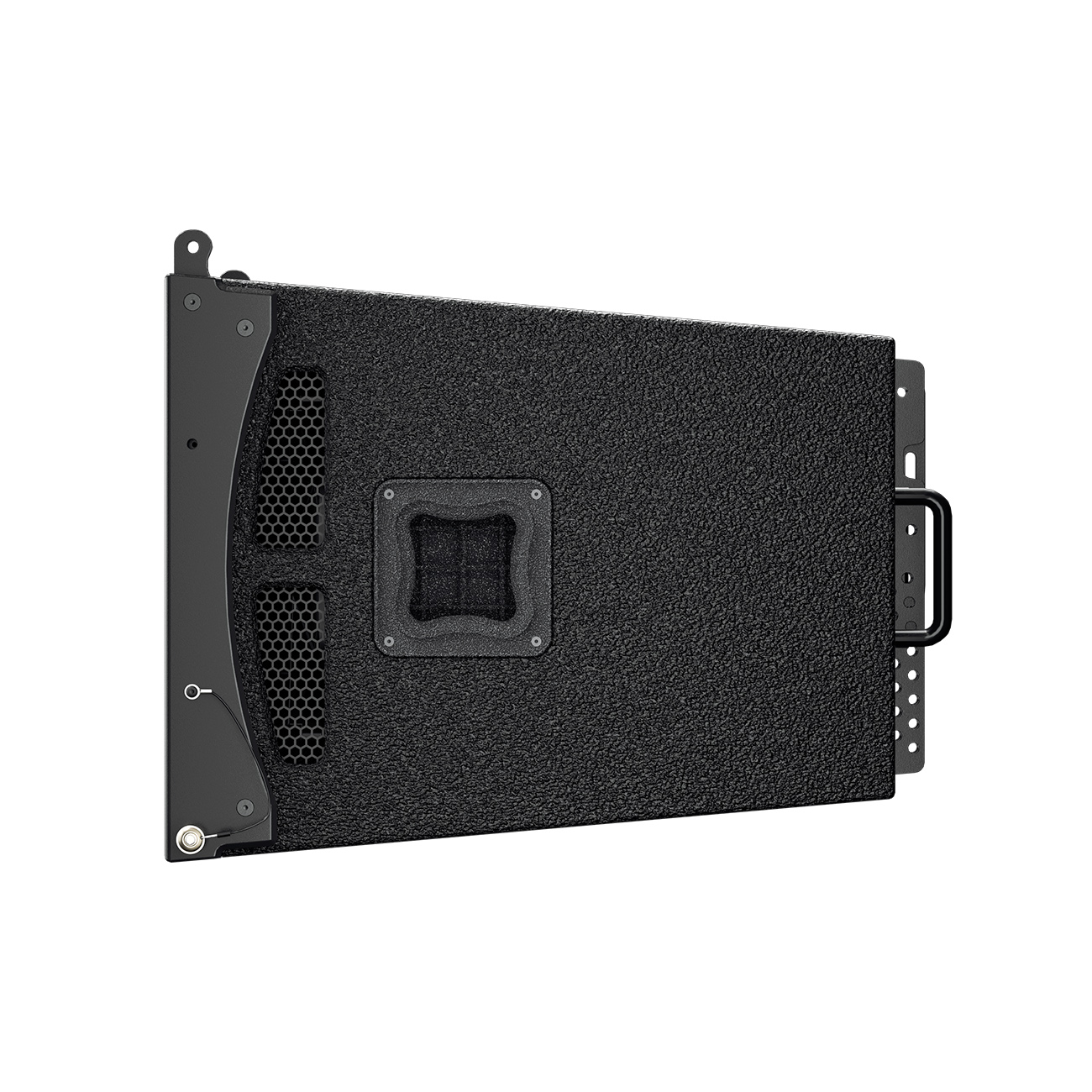

CUBE 18L

Application： Banquet halls, auditoriums, churches, concert halls, sports venues, cultural‑tourism projects, and mobile live events

Return to List Download

Specifications

System Type: Single 18‑inch Coaxial 3‑Way Line Array Loudspeaker
Frequency Response: 50 Hz‑18 kHz (±3 dB) / 45 Hz‑18 kHz (-10 dB)
Sensitivity (1 W / 1 m): HF: 113 dB; MF: 112.6 dB; LF: 101.5 dB
Nominal Impedance: HF: 8 Ω, MF: 8 Ω, LF: 8 Ω
AES Rated Power: HF: 80 W, MF: 110 W, LF: 800 W
Maximum SPL (Continuous / Peak): HF: 129.1 dB / 137.7 dB MF: 130.2 dB / 142.2 dB LF: 127.6 dB / 135 dB
Dispersion (H × V): 100° × 10°
LF Driver: 1 × 18‑inch Neodymium Transducer
MF Driver: 1 × 4‑inch Neodymium Transducer
HF Driver: 1 × 2.5‑inch Neodymium Transducer
Recommended Crossover Frequencies: MF/HF: 4.5 kHz; MF/LF: 850 Hz
Connectors: 2 × Speaker Terminal Blocks HF: Pin 1+, Pin 2‑ MF: Pin 3+, Pin 4‑ LF: Pin 5+, Pin 6‑
Rigging Hardware: 3‑Point Flying Kit
Dimensions (H × W × D): 562.95 × 609 × 706.5 mm
