WA118SA

Application:Theatre,Auditorium,Banquet hall,Music hall,Bar

Return to List Download

Specifications

System type：Single 18”Subwoofer
Sensitivity(1W/1m)：100dB
Frequency response：35Hz~300Hz(±3dB)/30Hz~350Hz(-10dB)
Power rating(AES)：900W
SPL(continue/peak)：129.5dB/135.5dB
Nominal Impedance：8Ω
LF：1×18

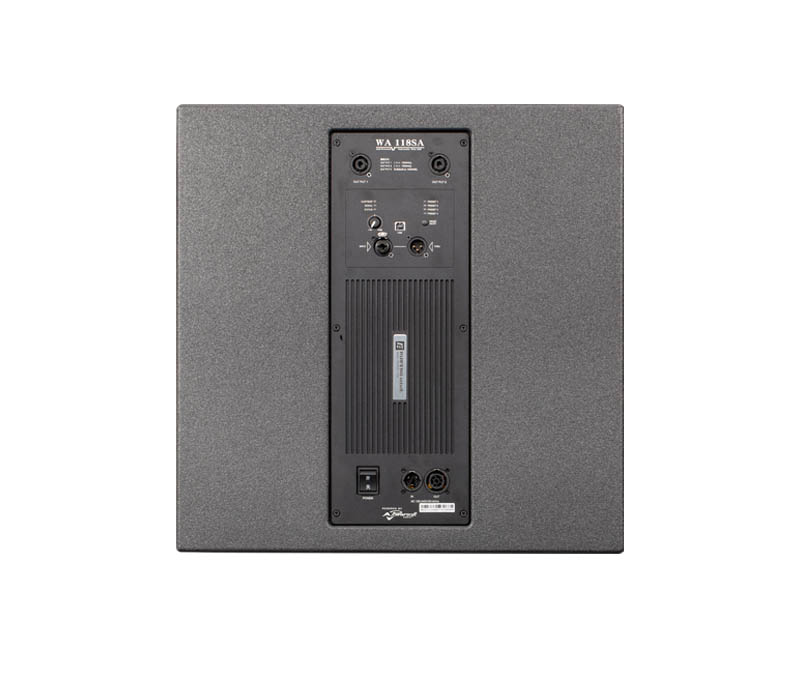

Connectors： 2×Neutrik 4 PIN socket (1+ 1-); 1×Neutrik XLR IN; 1×Neutrik XLR OUT; 1×RJ45 internet control interface; 2×Neutrik Powercon IN/OUT
3 channel Class D amplifier module： Power output 8Ω:600W×2;1500W×1
with DSP(1in 3out)
Gain：38dB
SNR：115dB(A)
Working voltage range： AC100-240V, 50/60Hz

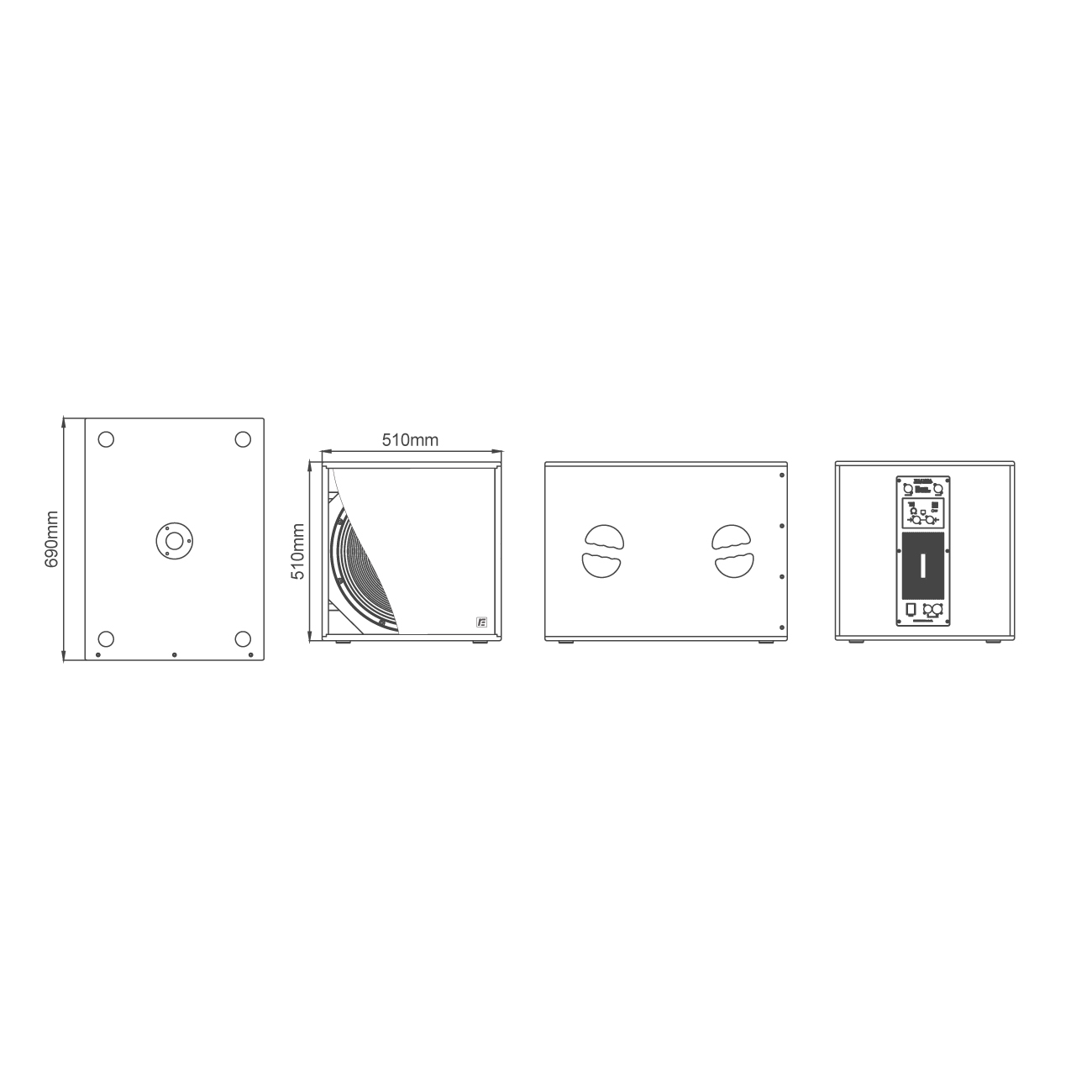

Dimension(H×W×D)：517×510×690mm
Fittings:M20 Pole Mount Socket

Features

WA118SA USES 18 "imported neodymium magnetic bass unit (4" voice coil);Built-in 2 channel active power amplifier module (1500w/8Ω×1;600w/8Ω×2), with DSP (1 in 3 out) digital audio processing function, built-in presets can be preserve or load; It is a universal active ultra-low frequency speaker, which can be flexibly combined with any full-frequency speaker, and is convenient and fast to install. It is designed to provide high definition solutions for fixed installation and small mobile sound amplification system.
