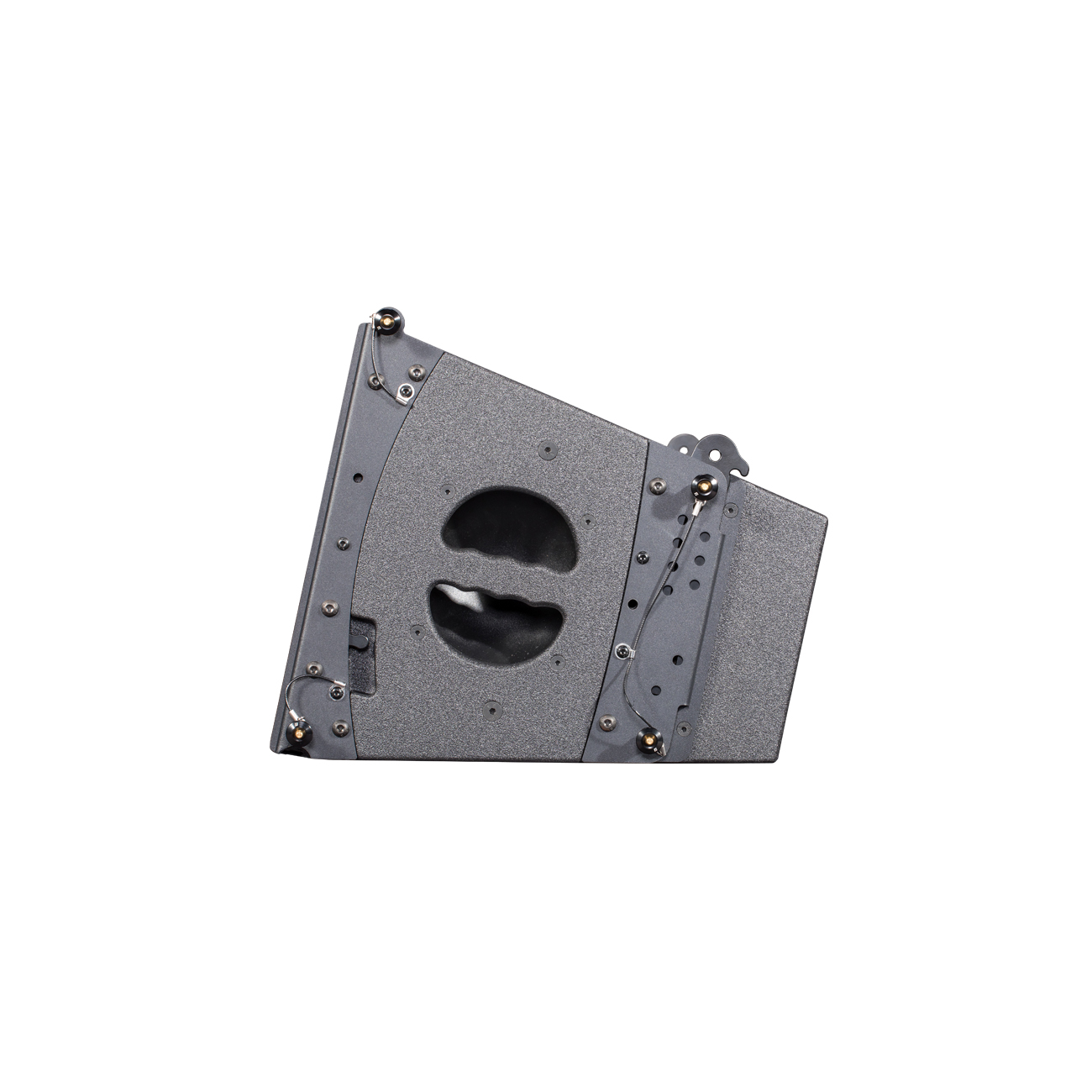

VR12
Single 12’’ Two-way Bi-amp Line Array Speaker
Application:Stadium,Theatre , Auditorium,Banquet hall,Multi-function hall,Touring,Portable application,Supporting large-scale sound reinforcement system fills
Specifications
- System type:Single 12 Two-Way Bi-Amp Line-Array Speaker
- Sensitivity(1W/1m):HF:102dB
- Frequency response:60Hz~20kHz(±3dB)/50Hz~22kHz(-10dB)
- Power rating(AES):400W
- SPL(continue/peak):128dB/134dB
- Dispersion(H×V):90°×22.5°
- Nominal Impedance:16Ω
- LF:1×12”(domestic neo speaker 75mm)
- Connectors:2×Neutrik 4 PIN socket，HF:2+ 2- LF:1+ 1-

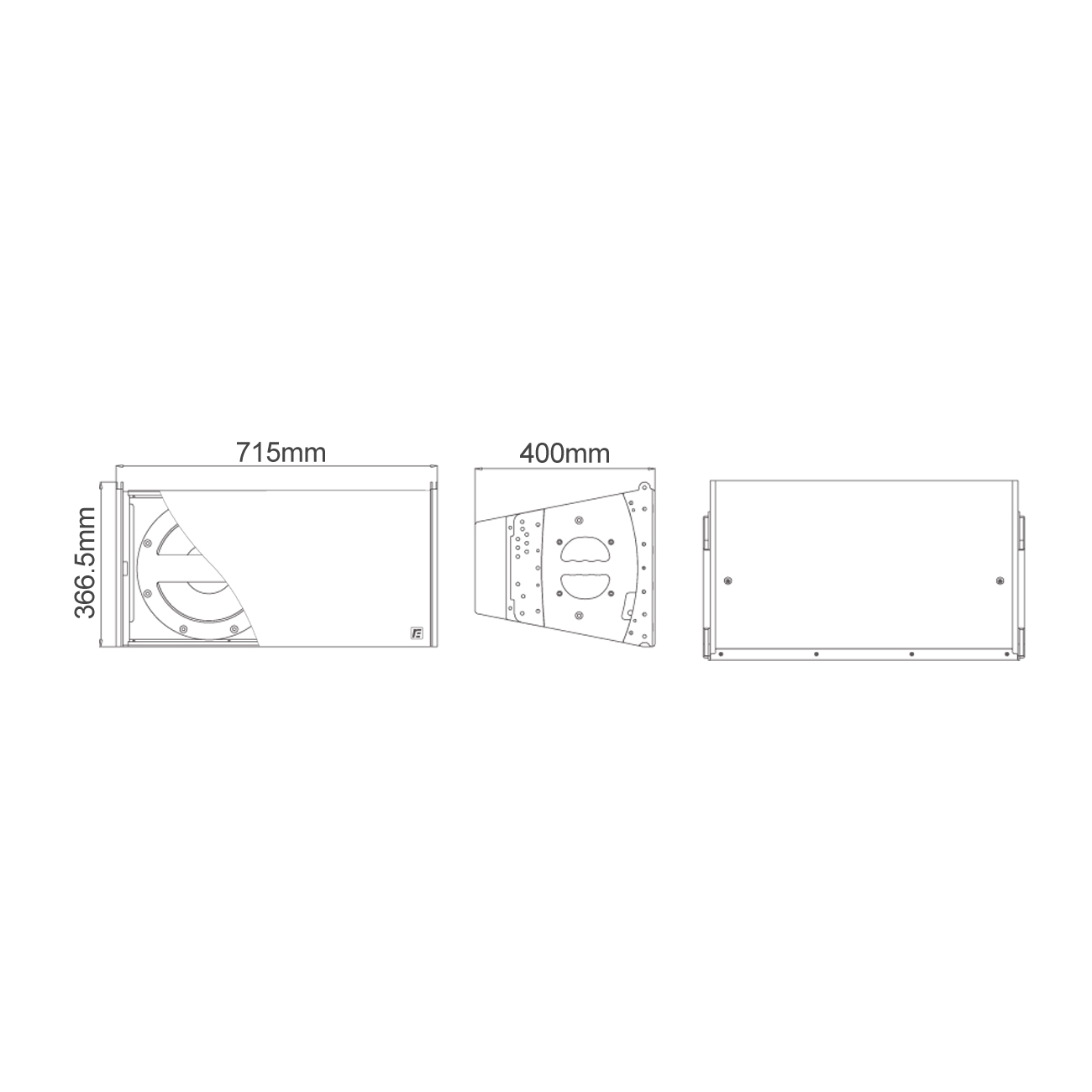

- Dimension(H×W×D):366.5×715×400mm
- Weight:33.6kg
Features
- The VR12 applies the same design concept of flexibility in VR series. It could be an horizontal and vertical array. The VR12 applies 1×3" B&C HF with 22.5×90 coverage. The 12" mid-low speaker is with sound wave guide phase plug for improving the working band of mid-frequency. The coverage of 16 units of this model will be 360, which could realize accurate all-round dispersion. The cabinet is covered by polyurea, so it is durable and strong for all-whether application.
