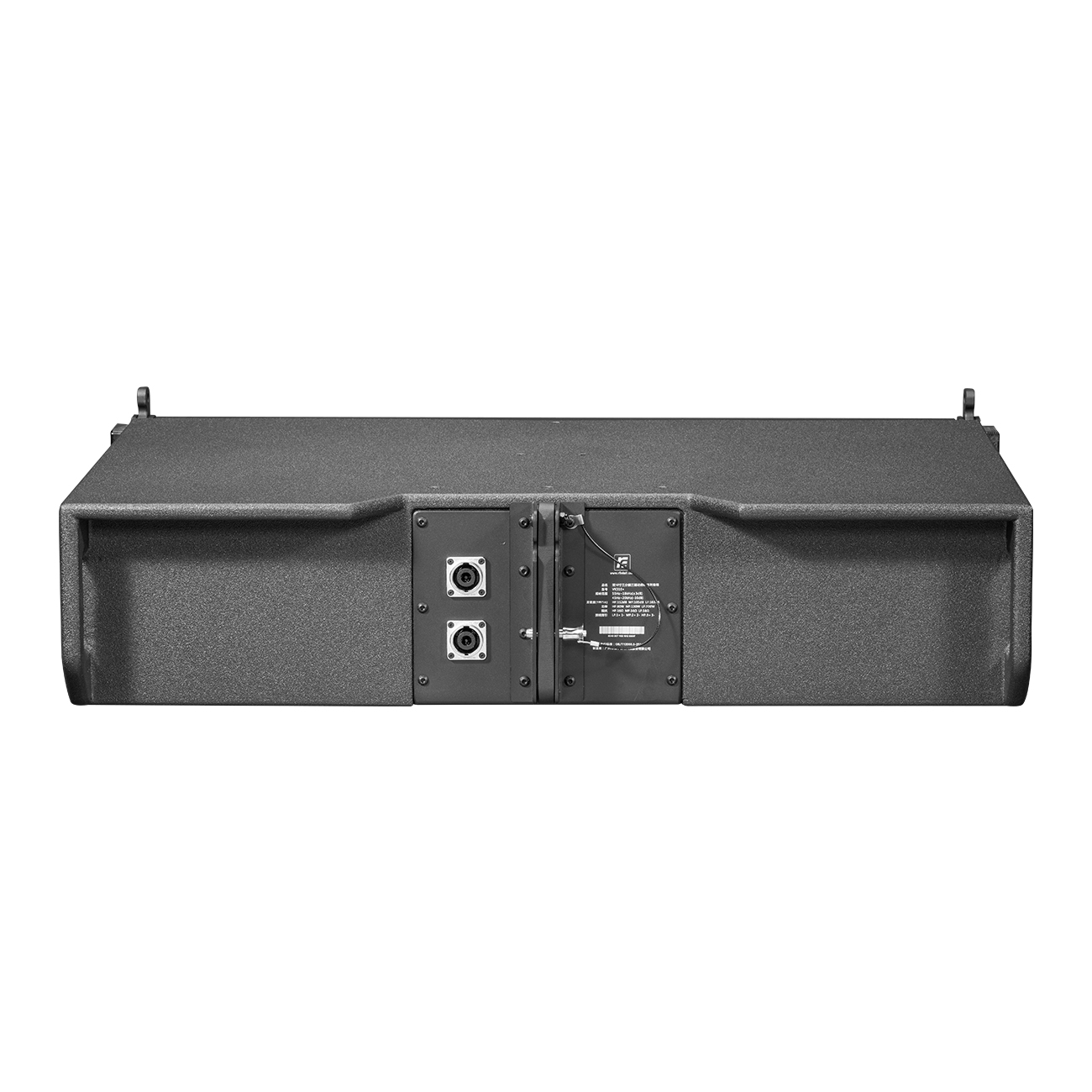

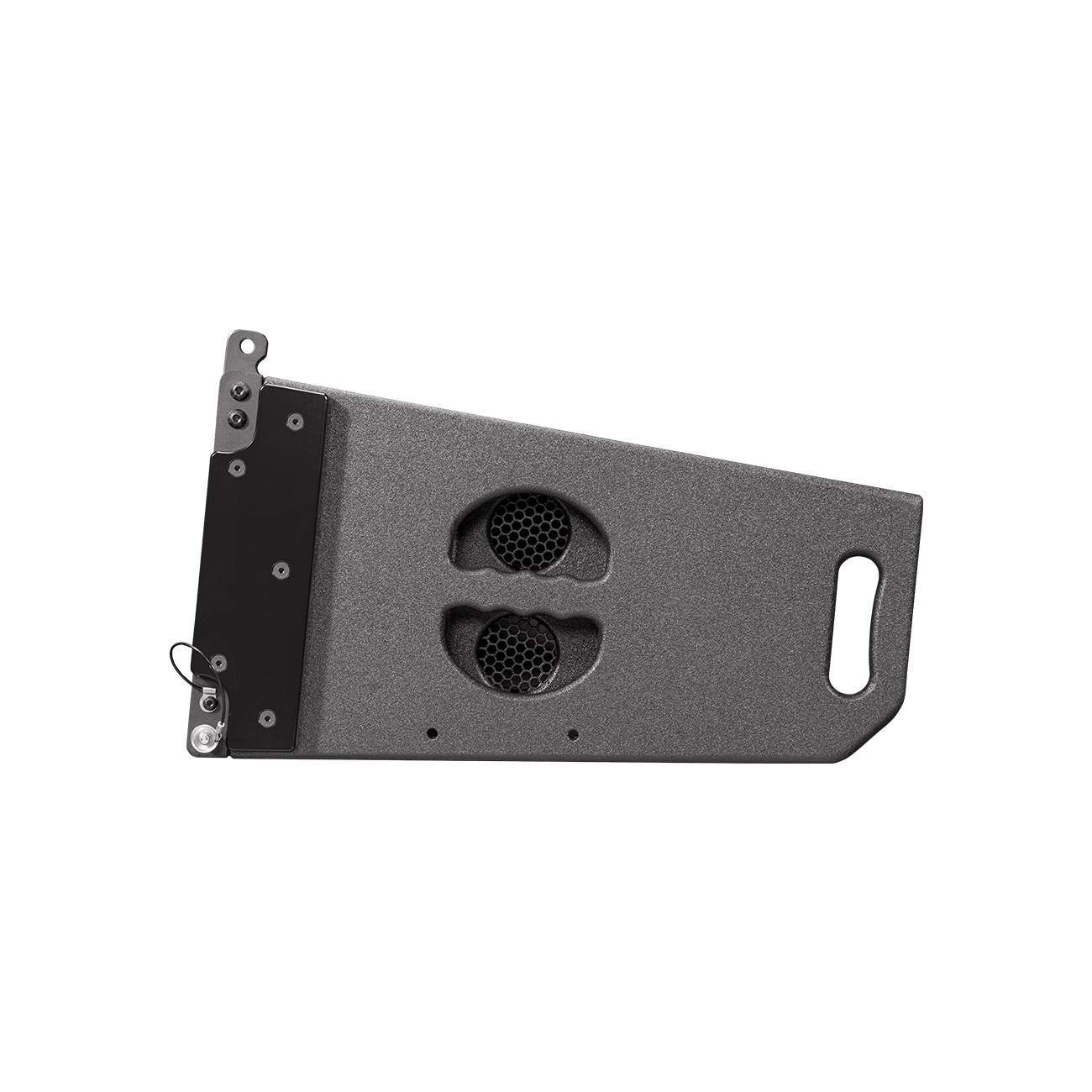

VK310+
Dual 10" three-way tri-amp line array speaker
Application:Stadium,Theatre,Auditorium,Banquet hall,Multi-function hall,Touring,Portable application
Specifications
- System type: Dual 10" three-way tri-amp line array speaker
- Sensitivity(1W/1m): HF:112dB/MF:105dB/LF:103dB
- Frequency response: 55Hz~18kHz(±3dB)/45Hz~20kHz(-10 dB)
- Power rating(AES):HF:80W/MF:130W/LF:700W
- SPL(continue/peak): HF: 131dB/137dB；MF:126dB/132dB；LF:130dB/136dB
- Dispersion(H×V): 90º×10º
- Nominal Impedance: HF:16Ω/MF:16Ω/LF:16Ω
- Crossover: 2×10” ferrite LF(65mm voice coil)
- LF: 1×8” neodymium MF (50mm voice coil)
- HF: 1×2.5” neodymium HF (65mm voice coil,1.4” throat)
- Connectors: HF:1+2-/MF:3+4-/LF:5+6-

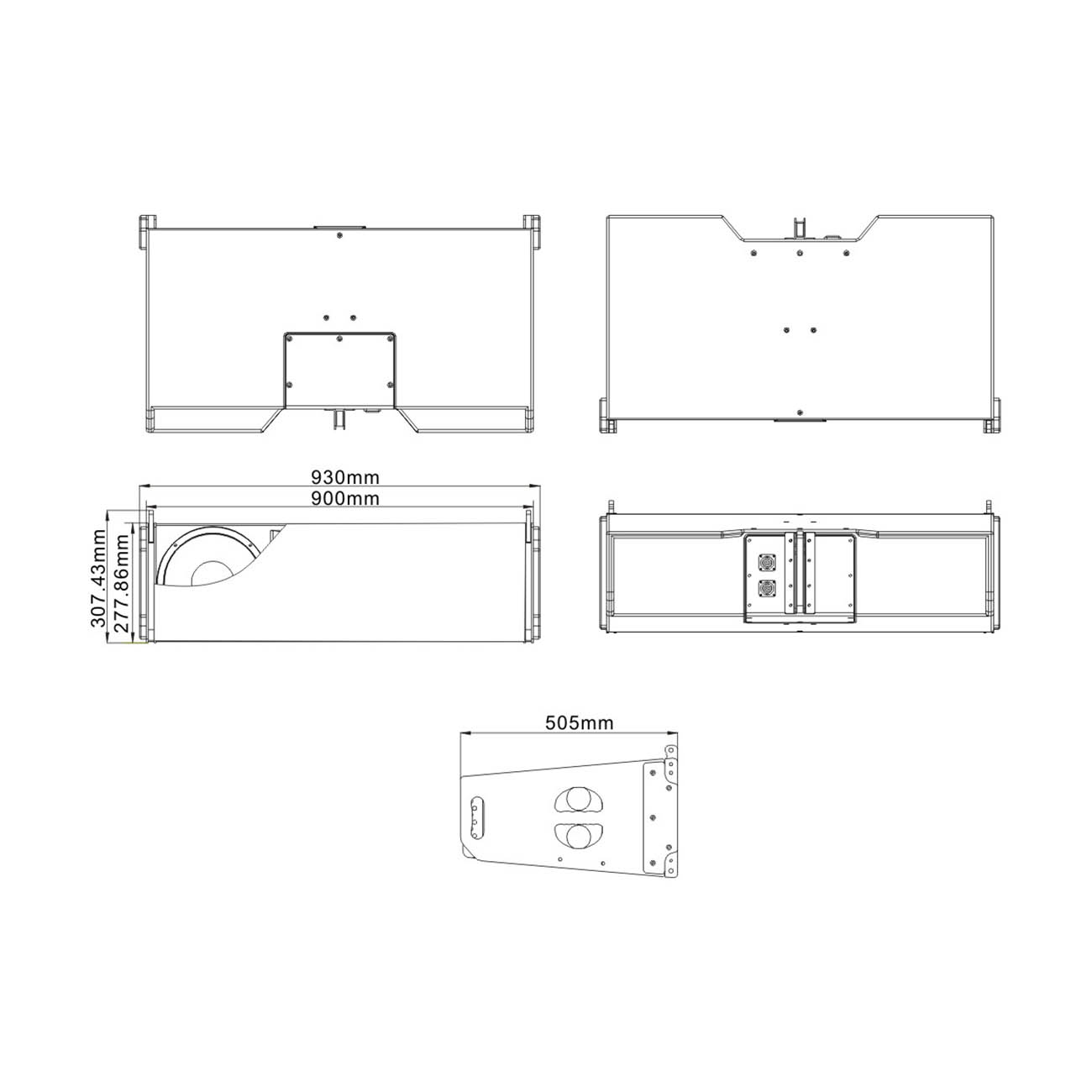

- Dimension(H×W×D): 307.43×930×505mm
- Weight: 36kg
Features
►VK310+ is a dual 10" three-way tri-amp compact line array speaker applied with selected parts. We choose light-weight neodymium speaker driver for this model. The LF includes 2 symmetrical 10” drivers to ensure its strong punch. The MF and HF follow the coaxial point source design. There is a 2.55” neodymium compress driver in front of the 8” MF driver, which provide ideal sound for the area.
►The enclosure of VK310+ is sprayed by polyurea, which makes it durable and weatherproof. The friendly-designed handles provide convenient solutions for transport and set-up.
