VK10SA
18"self-powered subwoofer with DSP
Application:Theatre,Auditorium,FOH of Performaning arts hall, Conference hall,FOH of Multifunction hall,Sound reinforcement equipment for Stadium,FOH of medium and small touring Large sound reinforcem
Specifications
- System:18"self-powered subwoofer with DSP
- Sensitivity(1W/1m):98dB
- Power rating(AES):900W
- Gain:32dB
- 4 channel D class: 2×Neutrik Powercon IN/OUT amplifier modular(with DSP):output power 4Ω:2000W×4 output power 8Ω:1000W×4 output power 16Ω:600W×4
- Frequency response: 40Hz~200Hz(±2dB)/30Hz~300Hz(-10dB)
- SPL(continuous/peak): 127.5dB/132.5dB
- Nominal impedance:8Ω
- S/N:115dB (A weight)
- LF unit:18"neodymium LF unit(100mm)
- RMON:with load impedance monitoring function
- Operating voltage rang: AC90-264V, 50/60Hz
- Connectors: 1×Neutrik NL4 Speakon 4core plug(HI:2+ 2-,LF:1+ 1-) ； 1×Neutrik NL4 Speakon 4core plug(SUB:1+ 1-)； 2×Neutrik XLR IN/OUT； 1×Neutrik AES

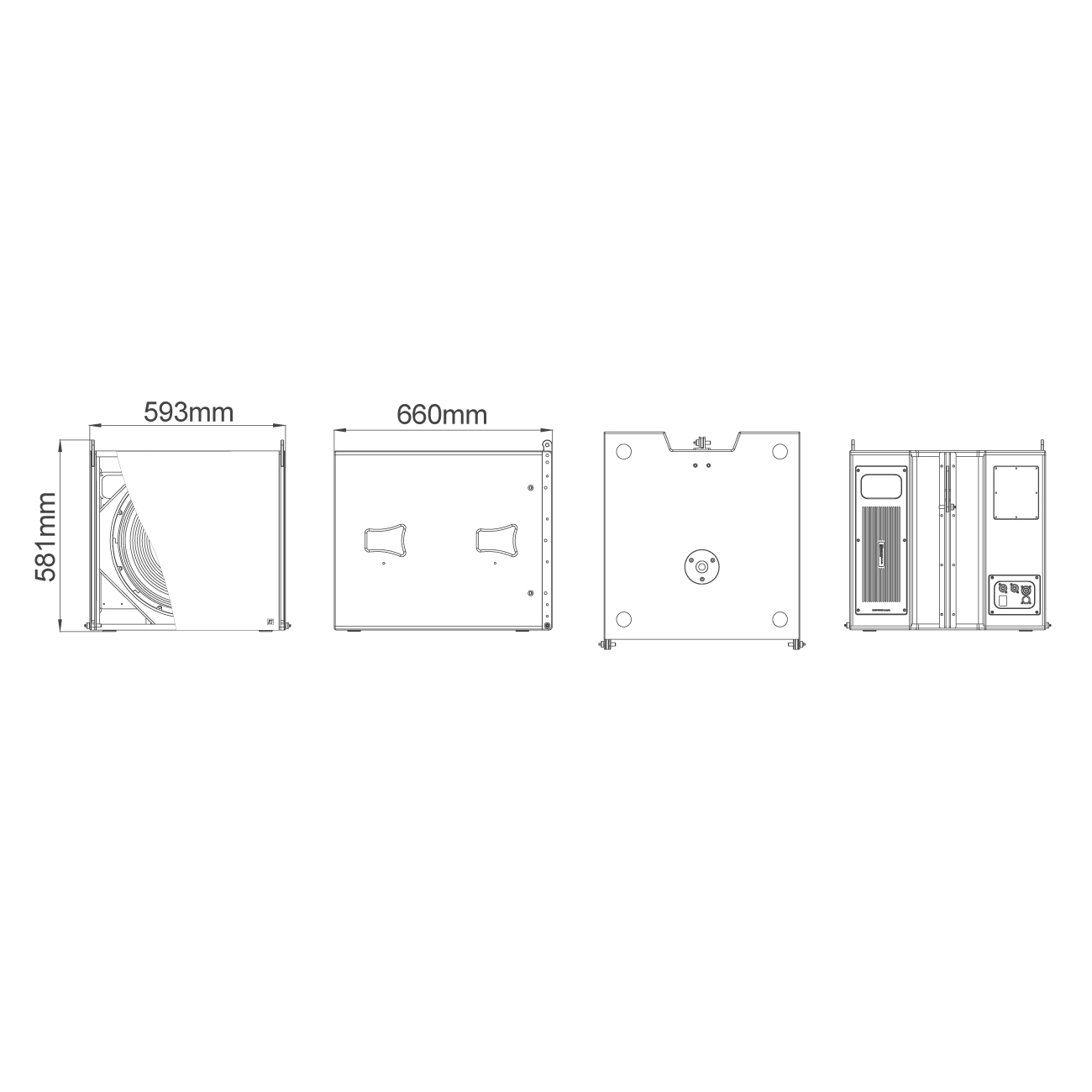

- Dimension(H×W×D):581×593×660m
Features
- Single 18” active subwoofer,with built-in DSP module,4*1000W/8Ω output channel,urtral compact design with amazing acoustic performance.New switching Frequency Power supply Design with Power Factor Correction and Intelligent Management Technology to ensure realize the optimal performance and high predictability. With DSP processing ability, the efficiency reached a new height,to provide the best solution for 1×VK10SA+1×VK10S+4×VK10 three way system.
