VK10
Single 10" Two-Way Bi-Amp Line Array Speaker
Application:Stadium, Theatre, Auditorium, Banquet hall, Multi-function hall, Touring, Portable application
Specifications
- System type:Single 10
- Frequency response:80Hz~18kHz(±2dB)/70Hz~19kHz(-10dB)
- Sensitivity(1W/1m):HF:110dB LF:104dB
- Nominal Impedance:HF:16Ω LF:16Ω
- Power rating(AES):HF:75W LF:300W
- SPL(continue/peak):HF:128/134dB LF:128/134dB
- Dispersion(H×V):100°×10°
- Crossover:1.3kHz
- LF:1×10
- HF:1×3
- Connectors:NEUTRIK NL4MP×2 HF:2+ 2-,LF:1+ 1-

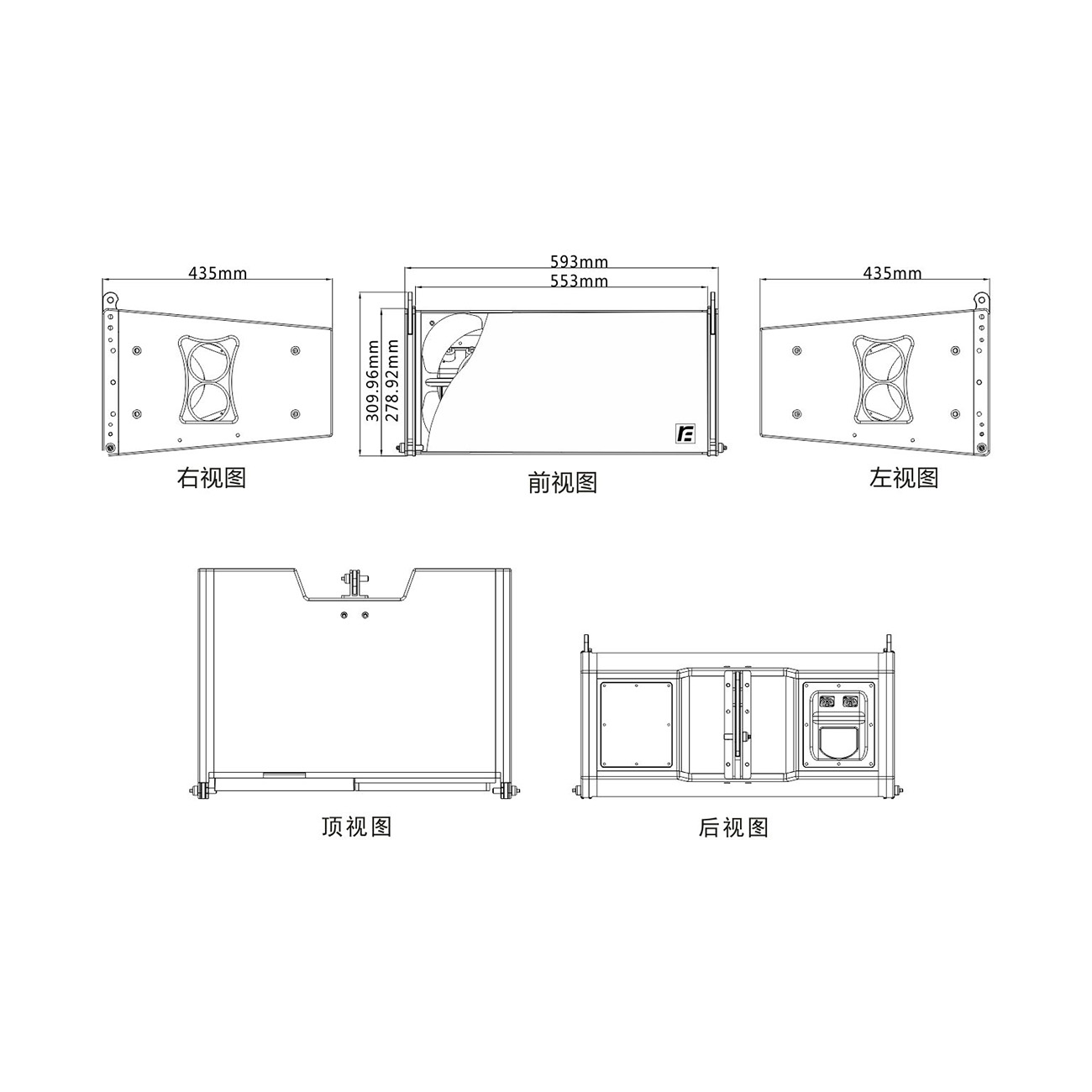

- Dimension(H×W×D):309.96×593×435mm
- Weight:26kg
Features
- Single 10" line array speaker with high precision devices, compact desgin working at high sound pressure level; Imported 1x3" B&C high unit with DCH patent,1x10" B&C medium and low unit with ACPD patent.
- VK10 can hange 16pcs as a group, with 7:1 safety coefficient, support various installation ways:hanging, ground stacked.
