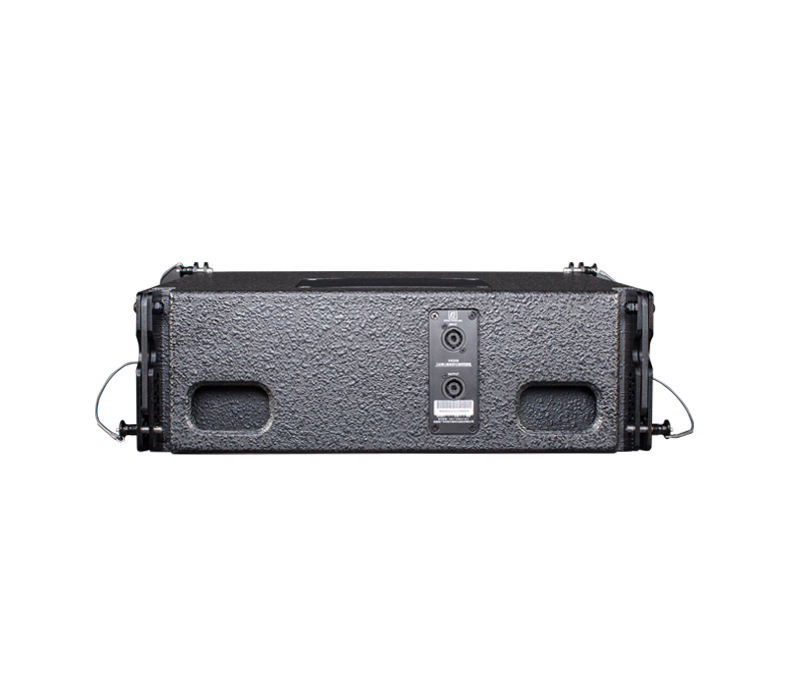

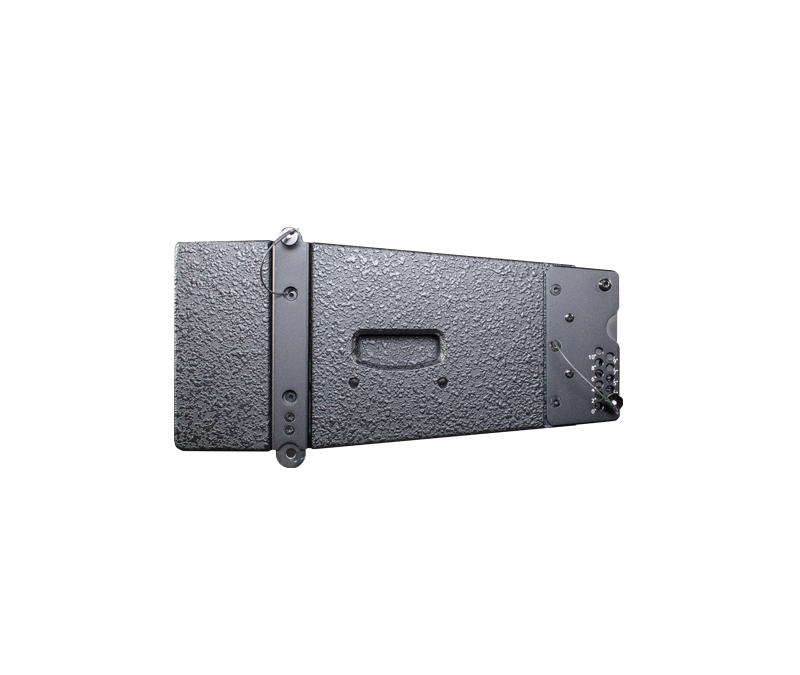

VK208
Dual 8" Two-Way Bi-Amp Line Array Speaker
Application:Stadium, Theatre, Auditorium, Banquet hall, Multi-function hall, Touring, Portable application
Specifications
- System type：Dual 8" Two-Way Bi-Amp Line Array Speaker
- Sensitivity(1W/1m)：HF:110dB LF:98dB
- Frequency response：85Hz~17kHz(±3dB)/80Hz~18kHz(-10dB)
- Power rating(AES)：HF:75W LF:300W
- SPL(continue/peak)：128.7dB/134.7dB
- Dispersion(H×V)：120°×10°
- Nominal Impedance：HF:16Ω LF:16Ω
- Crossover:1.5kHz
- LF：2x8”low/mid frequency driver
- HF：1x3”(75mm voice coil)
- Connectors：NEUTRIK NL4MP×2 HF:2+ 2-，LF:1+ 1-

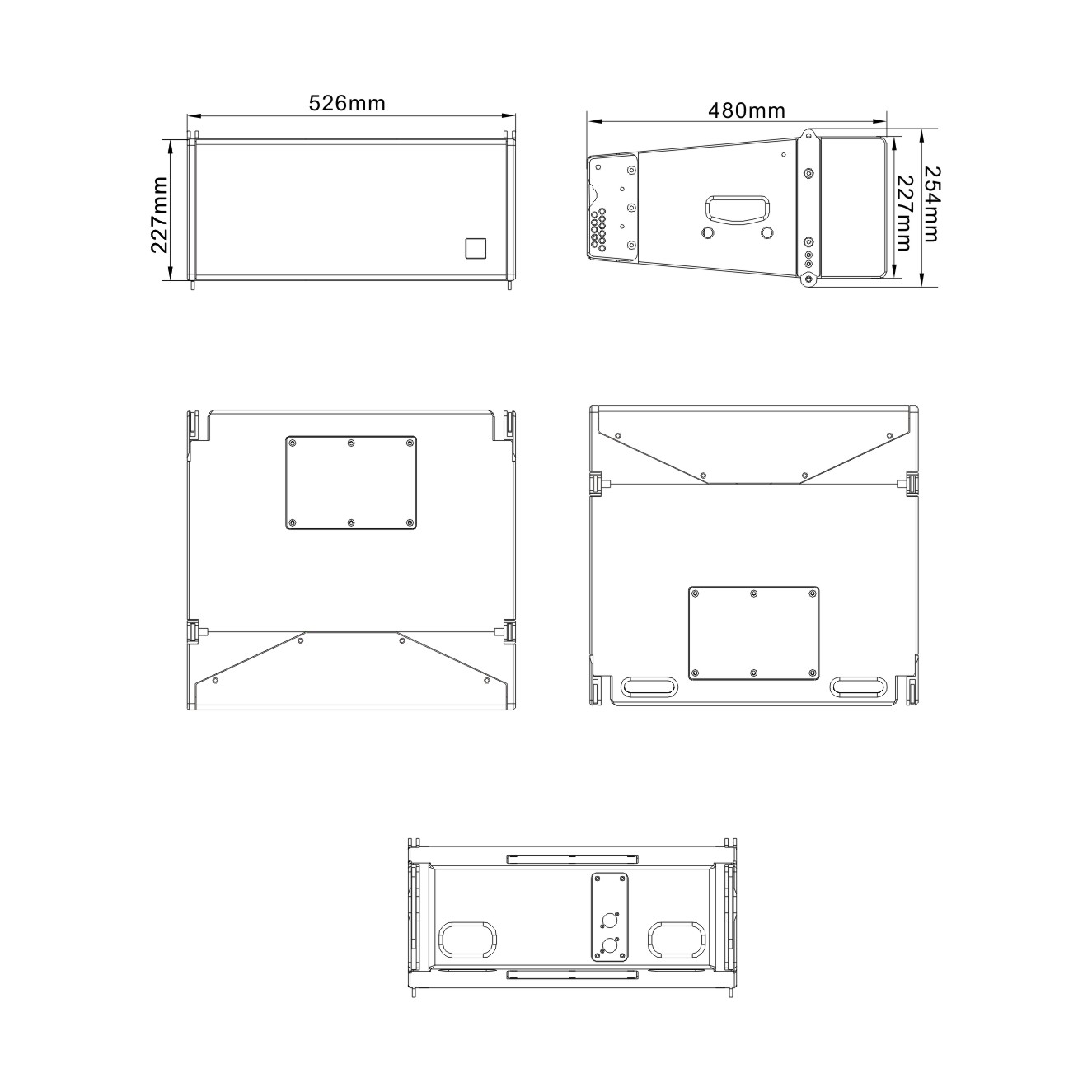

- Dimension(H×W×D):254×526×480mm
- Weight:26kg
Features
- VK208 is a ultral-compact design,broadly used high-efficiency line array speaker,The high quality 2x8”low and mid frequency drivers and a 1x3”high frequency driver with 75mm aluminium voice coil,The HF drivers provide a much smoother and more transparent high frequency response,whilst minimising distortion,especially at high sound pressure levels,The dispersion has strong constant directivity ,with uniform sound cover,Suitable for halls demanding high definition and touring.
- The integrated rigging system has a 7:1 safety coefficient,Designed to be hanging or ground stacked in various array configurations.
