VK205
Dual 5" Two-way line array speaker
Application:Conference hall,Banquet hall,Concert,square, Bistro, Church, small mobile performance
Specifications
- System type：Dual 5" Two-way line array speaker
- Frequency response：90Hz~20kHz(-10 dB)
- Sensitivity (1w/1m)：95dB
- Norminal impedance：8Ω
- Rated power(AES)：120W
- LF：2×5"Low frequency driver(30mm aluminiumvoice coil)
- HF：1×1" High frequency driver unit(25mm aluminium voice coil)
- Dispesion：100°×12°
- SPL：115.5dB/121.5dB
- Hanging connector：2KHz

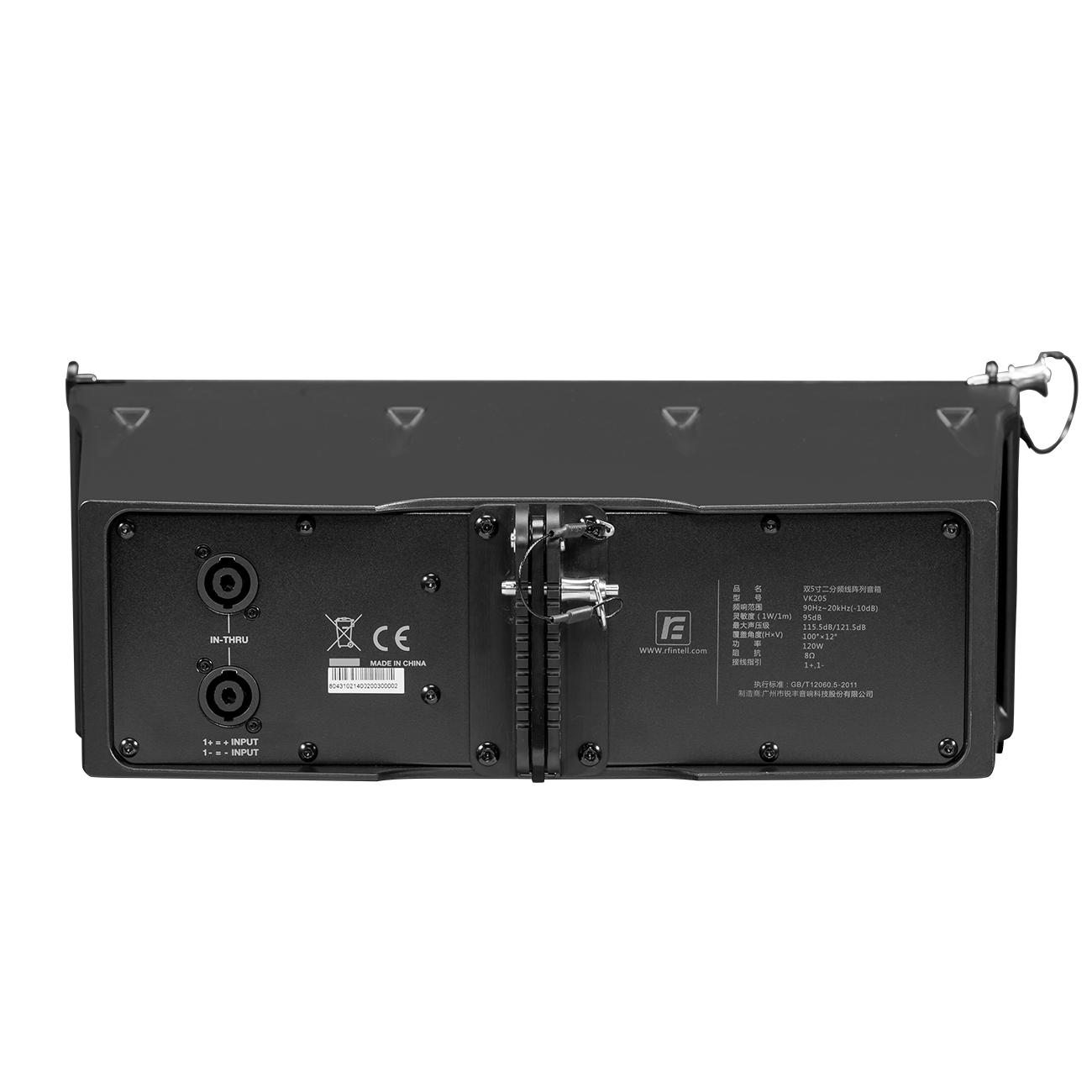

- Connector：2×SPK4,NL4MP 1+1-
- Vertical angle adjustment：(0°-12°),Interval 1.5°
- Hanging connector: 3 Hanging pionts

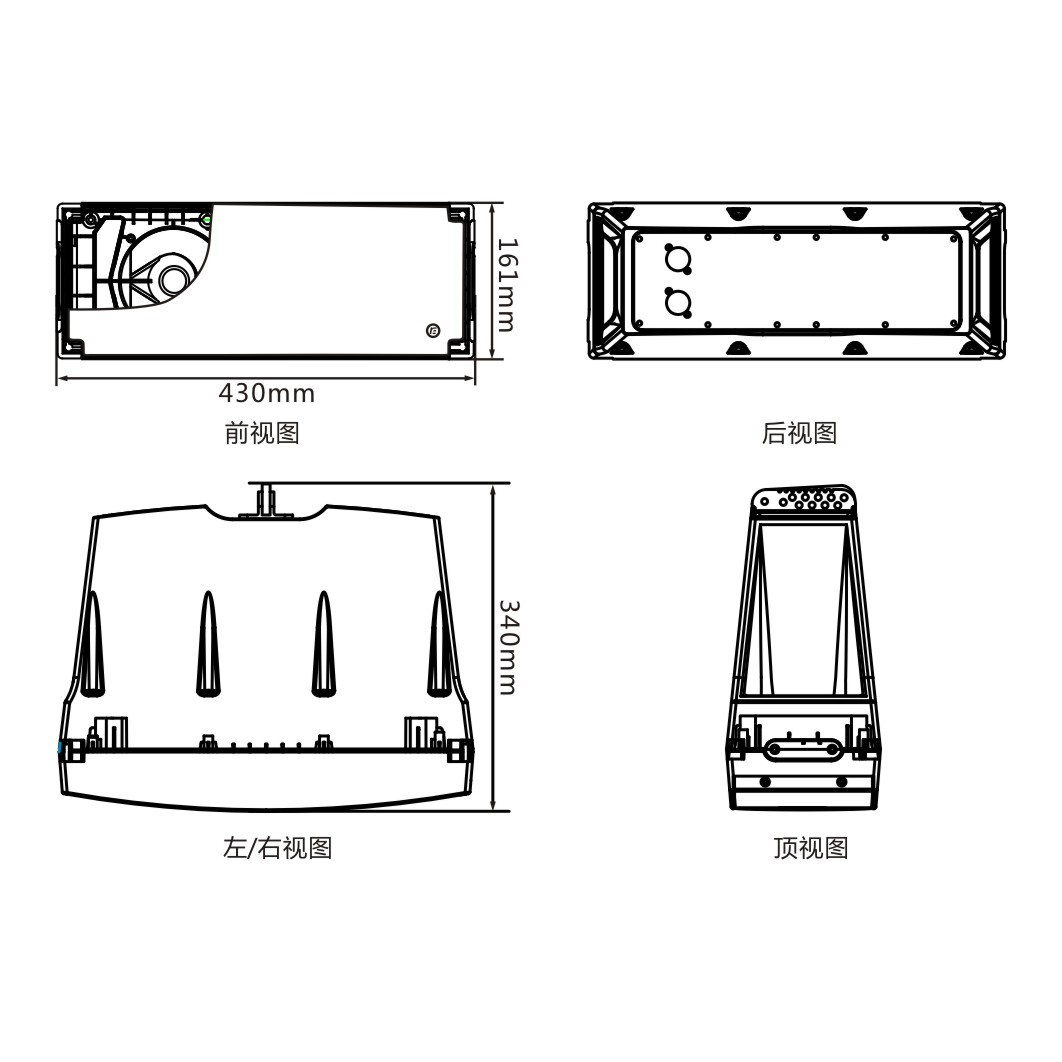

- Dimension(H×W×D)：161×430×340mm
- Weight：8kg
Features
VK205 is the classcial compact style of VK series with the innovative integrated plastic shell design, which has the light texture and the tough quality at the same time. The high frequency driver adopts 1x1inch speaker unit and waveguide type directional horn to implement ideal line array coverage. The low frequency driver deploys adouble 5 inch mid/low driver units and treble is designed as the axis of horizontal symmetry. The chest body is equipped with three-point simple installation hanger parts and two mechanical optimized pumping hands, rendering high-quality and cost-effective remedy for the sound reinforcement sysytem.
