GTS312

Dual 12" Three-way Tri-amp Line Array Speaker

Theater,Concert hall,Church,FOH of multifunction hall,Touring system,FOH of Stadium,FOH for outdoor large square.

Specifications
  • System: Dual 12”Three-way Tri-amp Line Array Speaker
  • Frequency response: 60Hz~18kHz(±2dB)/50Hz~20kHz(-10dB)
  • Sensitivity( 1W/1m ): HF:112dB MF:103dB LF:102dB
  • Nominal impedance:HF:16Ω MF:16Ω LF:16Ω
  • Rated power( AES ): HF:150W MF:600W LF:900W
  • Crossover:HI-MID: HI-MID:1.3kHz LO-MID:300Hz
  • LF unit: 2 ×12
  • MF unit: 4×6.5
  • HF unit: 2×3
  • Dispersion(H×V): 100°×10°
  • SPL(Continuous/Peak): HF:133/139dB,MF:130/136dB,LF:131/137dB
  • Connector:2×Weipu 8 pin waterproof socket HF:1+ 2-,MID:3+ 4-,LF:5+ 6-

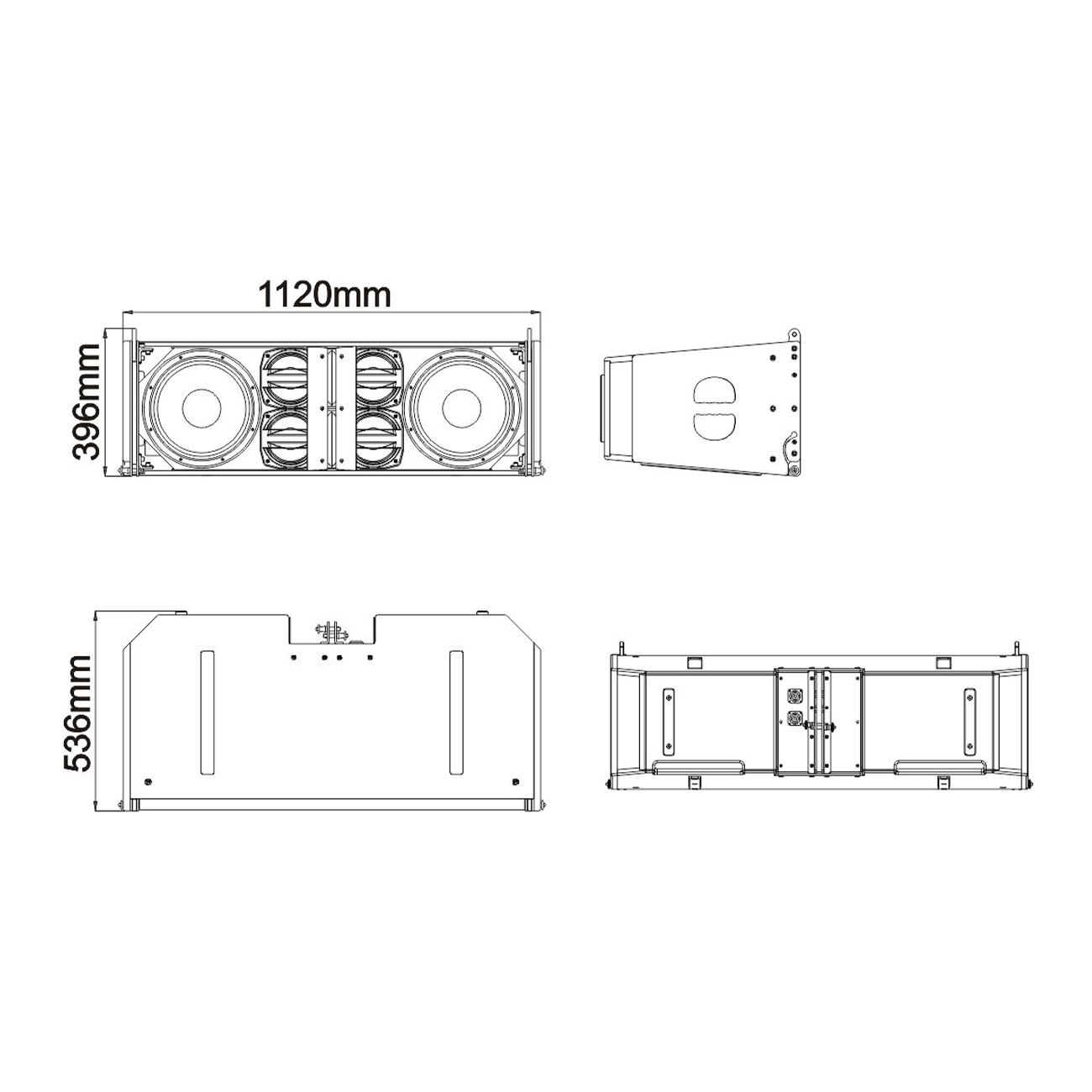

  • Dimension(H×W×D): 396×1120×536mm
  • Weight: 67kg
Features

►GTS312 is a compact high performance line array speaker,select high quality material,equipped with 2pcs 75mm Neodymium compression driver,4pcs 6.5” 45mm Neodymium midrange unit and 2pcs 12” 75mm Neodymium woofer;Taking high frequency element as the core of the central axis of the wave front,middle and low frequency unit are perfectly symmetric structural design,formed coplanar symmetric coupled wave front,realize simple, accurate and symmetrical acoustic coverage,make sure each position enjoys good quality sound,at the same time, it ensures the precision coherence of sound and the strong dynamic impact.

►The coating is polyurea spraying process ,more stronger and wearable,with three-point balanced riggings, there are four mechanical optimal handles on the side and back of the speaker,make it simple and convenient for transportation and rapid construction.Designed to provide high-definition solutions for large fixed installations and large touring sound reinforcement systems.

Data Download
  • Ruifeng Intelligent Enterprise AlbumGTS312

    File size: 41.05 MBRelease time: 2023-06-12 Download Preview
  • GTS312 EASE Speaker Data GTS312

    File size: 1.74 MBRelease time: 2023-05-17 Download Preview
  • GTS312 CatalogueGTS312

    File size: 1.12 MBRelease time: 2023-05-17 Download Preview
