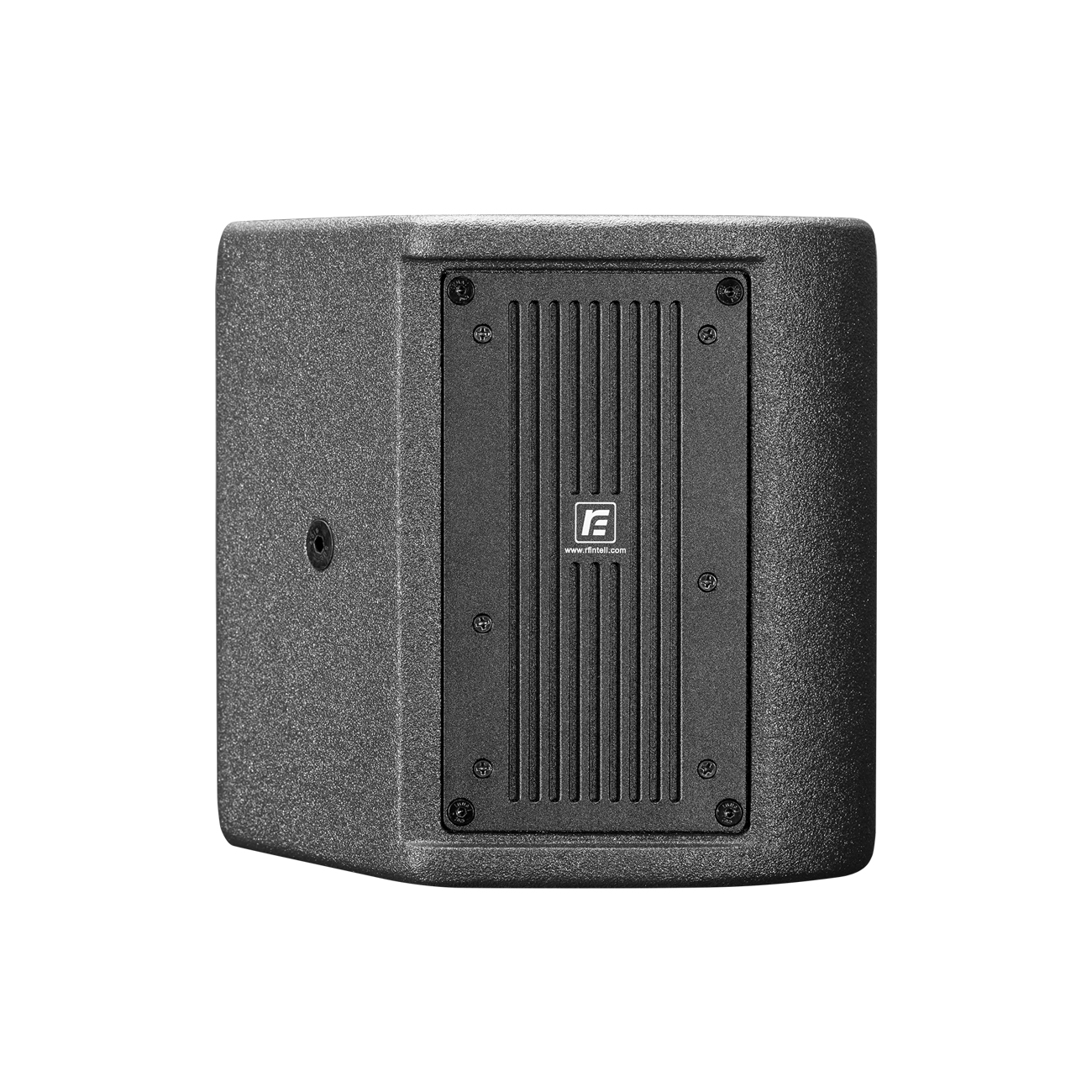

TX5CA
Single 5”Active Coaxial Full-range Speaker
Application:Multi-function Hall,Banquet Hall,Meeting room,Rock Bar,Stage Monitor,Side monitor.
Specifications
- System type : Single 5”Active Coaxial Full-range Speaker
- Sensitivity(1W/1m) : 92dB
- Frequency response : 110Hz~20kHz(±3dB）/100Hz~20kHz (-10dB )
- Nominal impedance : 8Ω
- Power rating（AES） : 50W
- LF: 5”coaxial driver
- HF: 1”coaxial compression driver
- Dispersion(H×V) : 90゜×90゜
- SPL(continue/peak) : 108dB/114dB
- Amplifier modular : 1×200W/4Ω, 1×100W/8Ω

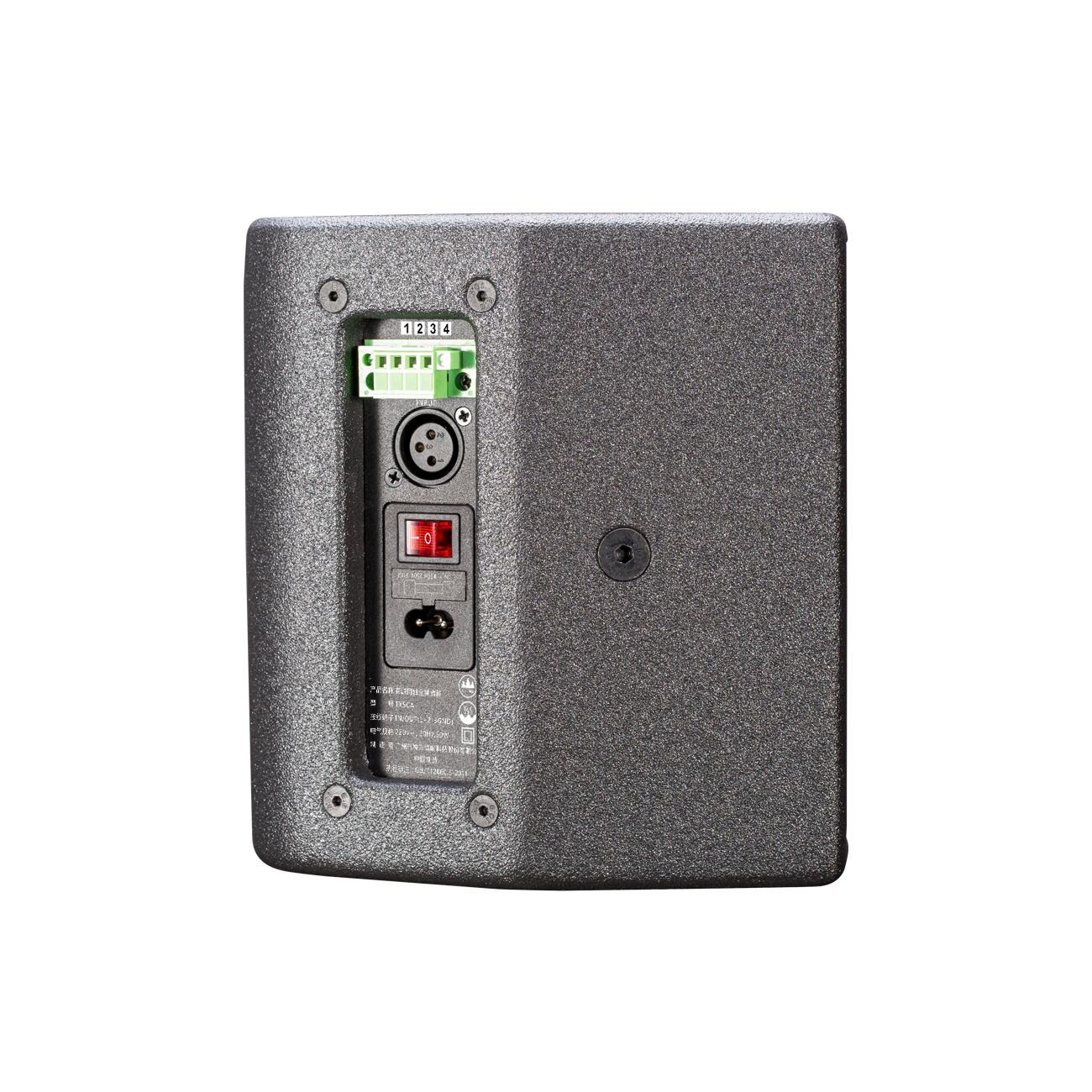

- Connector: 1×XLR female ,1×4 pin terminal (1+2-3GND)
- Fittings: M8 flying point×4、M8 bracket hole

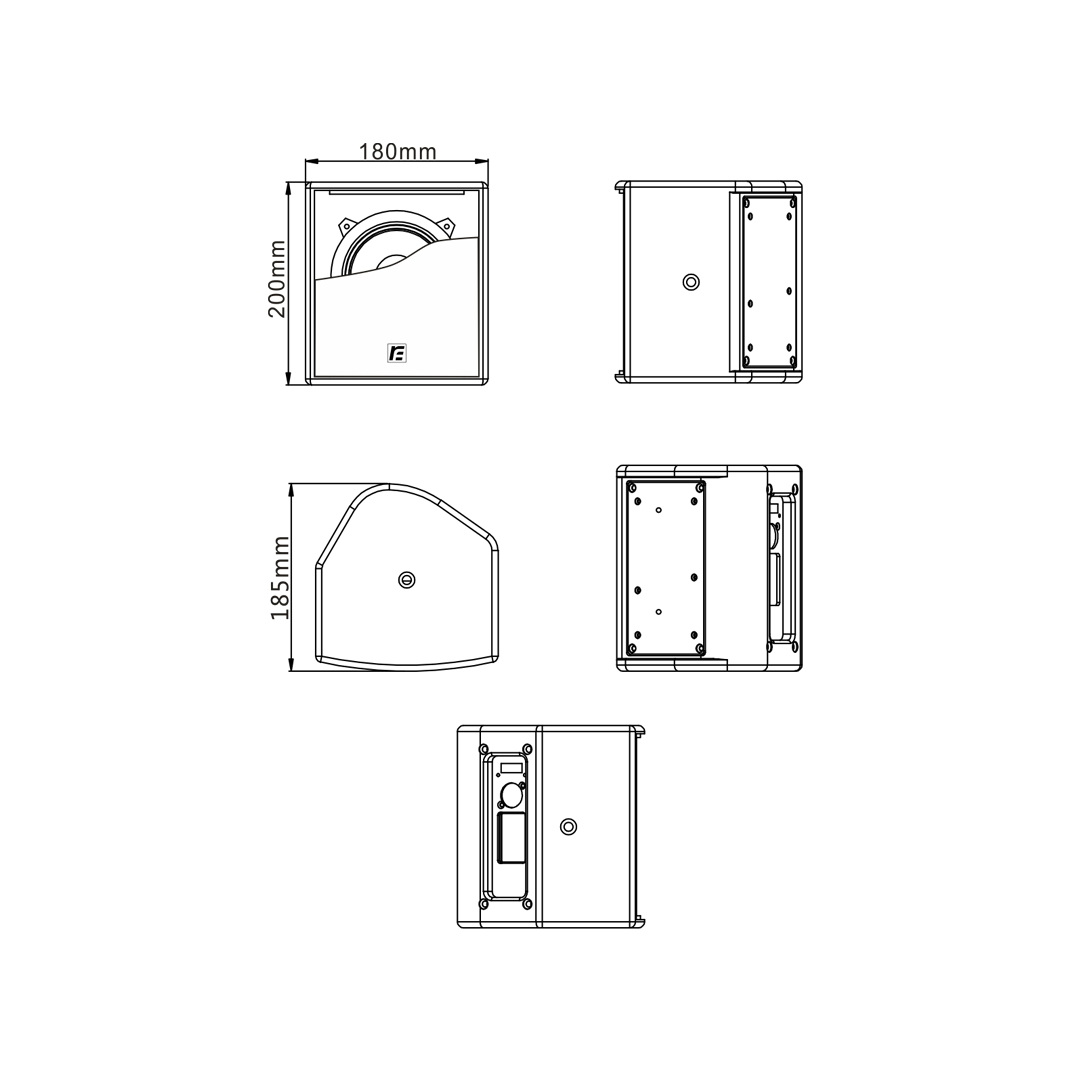

- Dimension(H×W×D) : 200×180×185mm
- Weight: 3.1kg
Features
TX5CA is a 5-inch active coaxial full-range speaker, high definition and multi-functional design features are retained; it can also be used as a monitor speaker. In the meantime, it can meet the requirements of wall hanging and support; Birth composite board production and polyurea spraying technology, making the box more solid.
