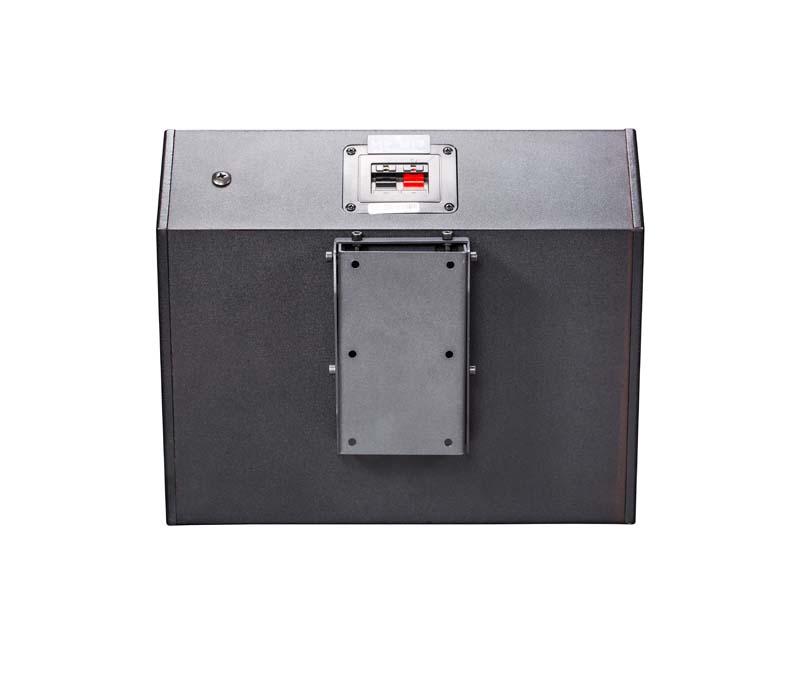

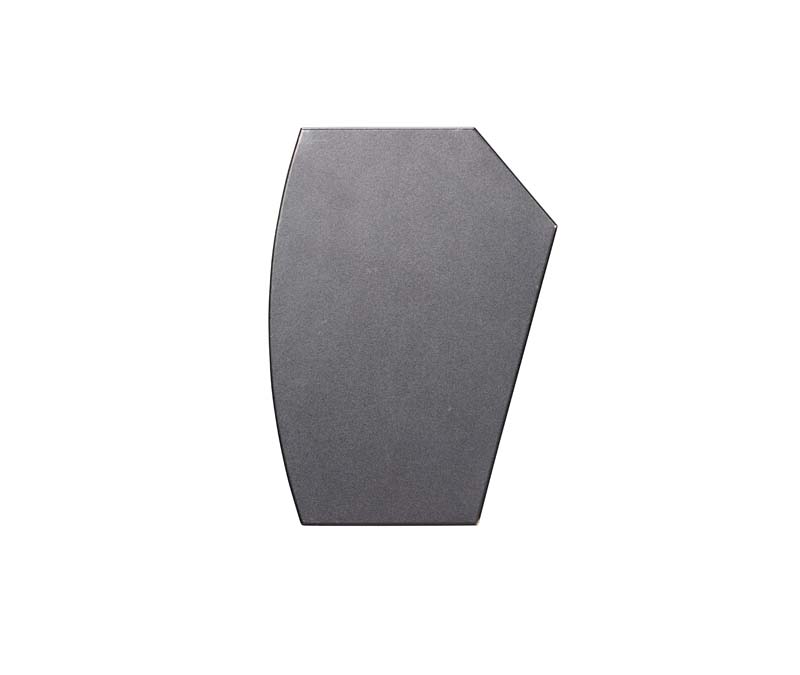

PC10
Coaxial single 10”two-way surround speaker
Application:Side surround: Available for area not more than 20m width; Back surround: Area not more than 30m depth.
Specifications
- System type：Coaxial single 10”two-way surround speaker
- Sensitivity(1W/1m)：94dB
- Frequency response：60Hz~20kHz(-10dB)
- Power rating(AES)：400W
- SPL(continue/peak)：120dB/126dB
- Dispersion(H×V)：90°×90°
- Nominal Impedance：8Ω
- LF：1×10”75mm voice coil (Ferrite, aluminum pot frame)
- HF：1”The compression unit (75mm voice coil) (Ferrite)
- Connectors：Red for positive, black for negative
- Fittings：4×M8 rigging point
- Dimension(H×W×D)：372×440×266mm
- weight：16kg
Features
PC is a 10” coaxial full-range speaker for cinema with a 75mm 3” speaker driver and 10” 75mm MLF speaker. Deployed a new titanium diaphragm tweeter with a widely angle index tweeter is used. The coverage angle is 90 ° (H) × 90 ° (V); Meanwhile, equipped with special horizontal and vertical angle adjustable wall hanger, simple as well as practical.
