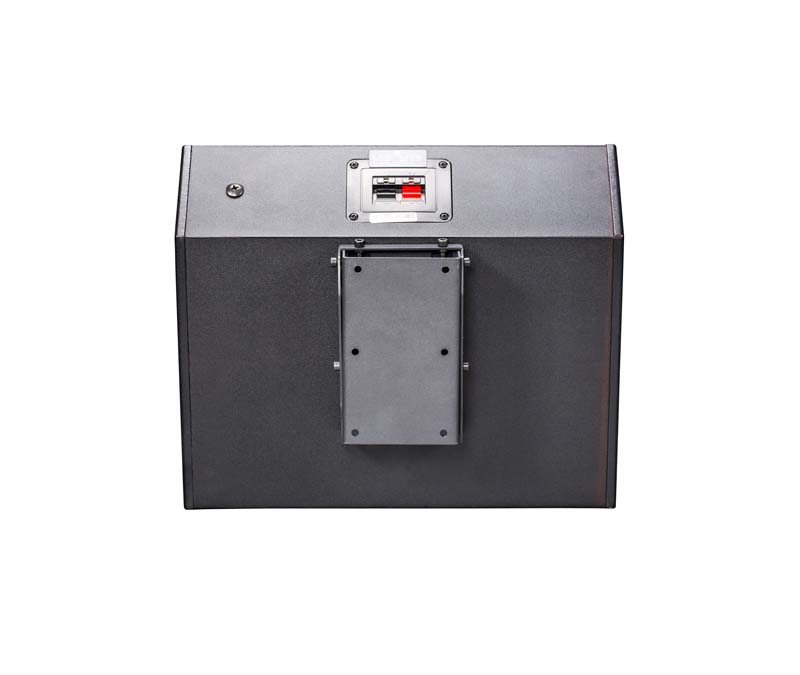

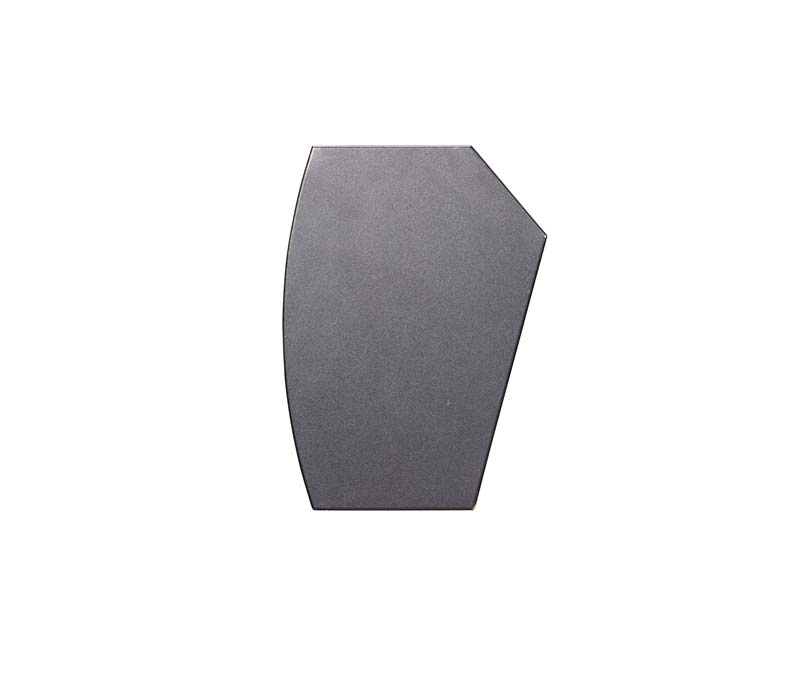

PC8
Coaxial single 8”two-way surround speaker
Application:Side surround: Available for area not more than 12m width; Back surround: Area not more than 12m depth.
Specifications
- System type：Coaxial single 8”two-way surround speaker
- Sensitivity(1W/1m)：88.5dB
- Frequency response：70Hz~20kHz(-10dB)
- Power rating(AES)：180W
- SPL(continue/peak)：111dB/117dB
- Dispersion(H×V)：100°×100°
- Nominal Impedance：16Ω
- LF：1×8" (50mm voice coil)
- HF：1" The compression unit（44mm voice coil）
- Connectors：Red for positive, black for negative
- Fittings：4×M8 rigging point
- Dimension(H×W×D)：320×380×225mm
- Net weight：10kg
Features
PC8 is an 8" coaxial speaker for cinema with a 44mm 1" speaker driver and 50mm 8" MLF speaker. The special design makes it excellent on sound and low distortion. The coaxial construction solve the problem of transfer difference between speaker drivers. The coverage angle is 100(H)×100(V).
