MQ-8C
Coaxial In-Ceiling Speaker
Application:Small to medium conference hall, Auditorium, Banquet hall, Music hall, Multi-function hall, Aux amplifying system
Specifications
- Frequency response：103Hz~20KHz
- Sensitivity(1W/1m)：91±2dB
- Rated Power(AES)：60W/16Ω 80W/16Ω
- Input Mode(100V)： 80W@133Ω 40W@245Ω 20W@490Ω
- Output Mode(70V)： 80W@133Ω 40W@245Ω 20W@490Ω 10W@490Ω
- LF Driver：8〞
- HF Driver：20mm horn voice coil

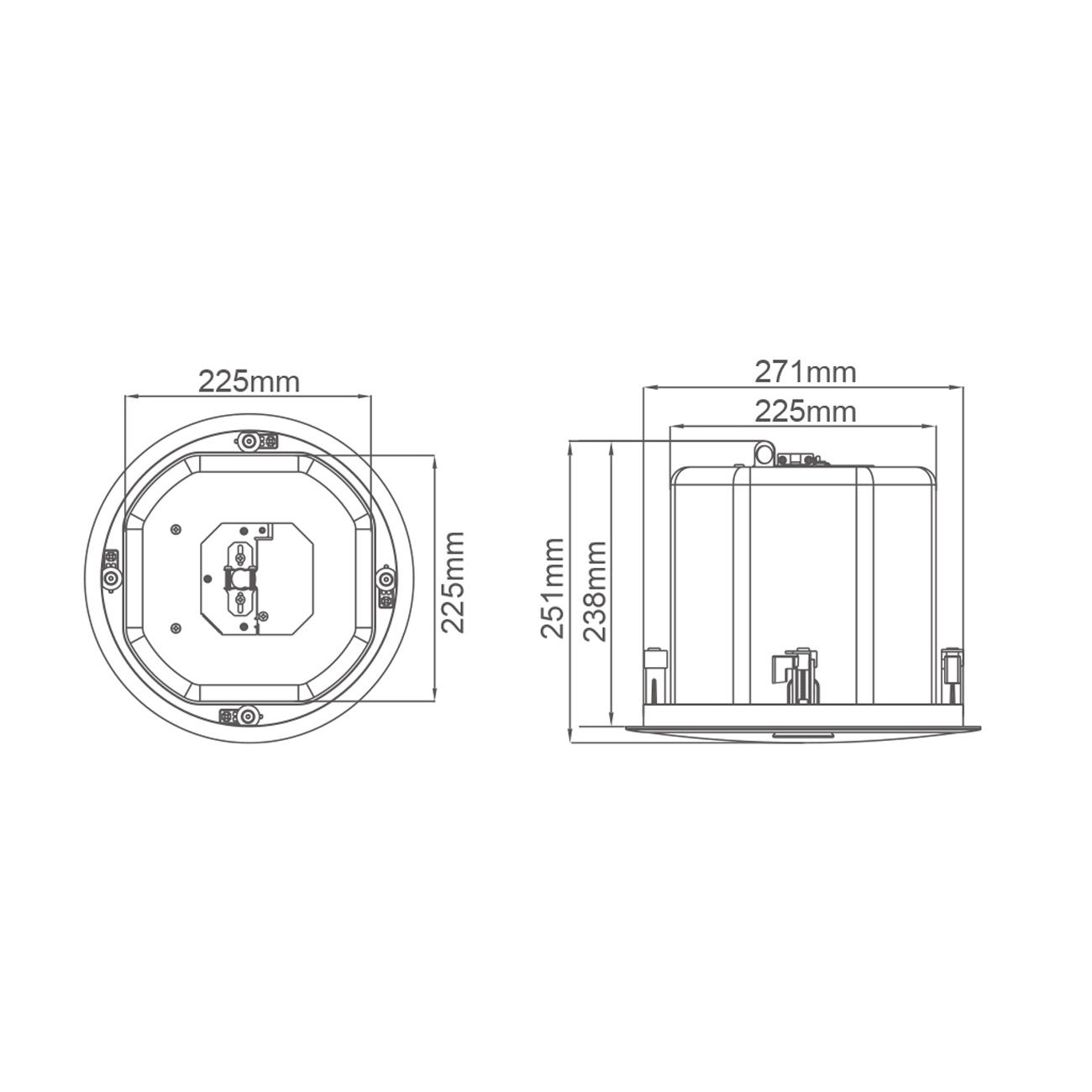

- Diameter Out Circle：271mm
- Hole Depth：238mm
- Net Weight：5.6kg
Features
MQ series are coaxial two-way ceiling speakers ,MQ-8C uses 8”LF driver ,MQ-6C uses 6.5”LF driver ,with silk diaphragm for HF driver ,the sound is more softer and smoother;Coaxial sound source from one same point , sound reduction is more accurate and natural.
Voltage input and electric resistance are optional, voltage input (100V and 70V) amd electric reistance (16ohms) are available for different occasions. Installation is flexible with only hole size of the ceiling should be considered.
